7000006212/80611330350 NPC 8802-T SM SC/PC No Polish Connector for 1.6-3mm OD and 2x3mm FRP, Toolless

Part number: 130207-00012 Copyed at buffer
7000006212/80611330350 NPC 8802-T SM SC/PC No Polish Connector for 1.6-3mm OD and 2x3mm FRP, Toolless
Sale

About this item (PDF)

Ask a question

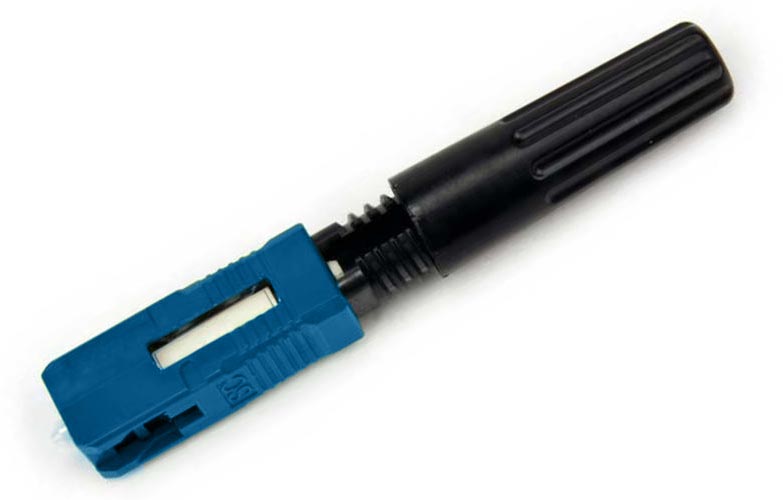

The SC/PC No Polish Connector (NPC) is used for fast and easy on-site termination on optical cables with G.657 bend insensitive single mode fiber

- 1.6-3.0 mm OD single fiber cable;

- 2×3 mm OD subscriber single fiber cable with pressed-in fiberglass rods;

The SC/APC compatible connector consists of a factory-polished ferrule assembly and a mechanical splice that can be installed without an assembly tool. A twist on, hard shell boot clamps onto the cable jacket and aramid fiber to provide excellent strain relief.



Scroll to related products

Price
Sale price, with Vat Date 28.04.2024 347.02 RUB
Sale price, W/out Vat Date 28.04.2024 289.18 RUB
Item parameters
Technical specifications
Cable cross section, mm 2х3 and Ø 1.6; 2.0; 2.9; 3.0;
Fiber coating diameter, μm 250/900
Insertion loss (typical value), dB <0.3
Return loss, dB <-35
Gain in optical loss after 100 reconnections, dB <0.2
Gain in optical losses at 2.5 kg load, dB <0.2
Operating temperature, °C -40...+75
Dimensions, mm 9.3x9.3x57.4
Kit content
Connector
 1 pc.
Logistic data
Volume, m3: 0,000267
Weight, kg: 0,017
