FC/APC SM Adapter D-type

Part number: 130205-00002 Copyed at buffer

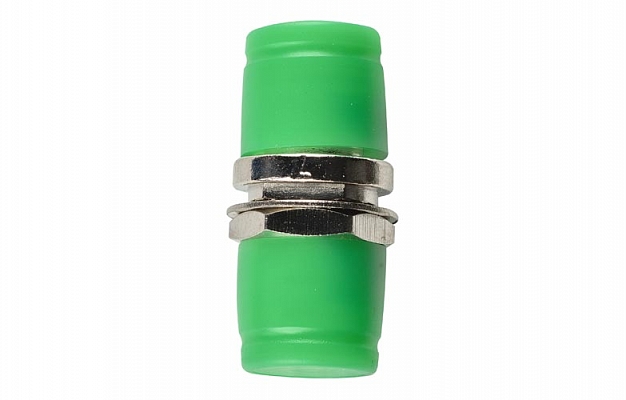

FC/APC SM Adapter D-type внешний вид 1

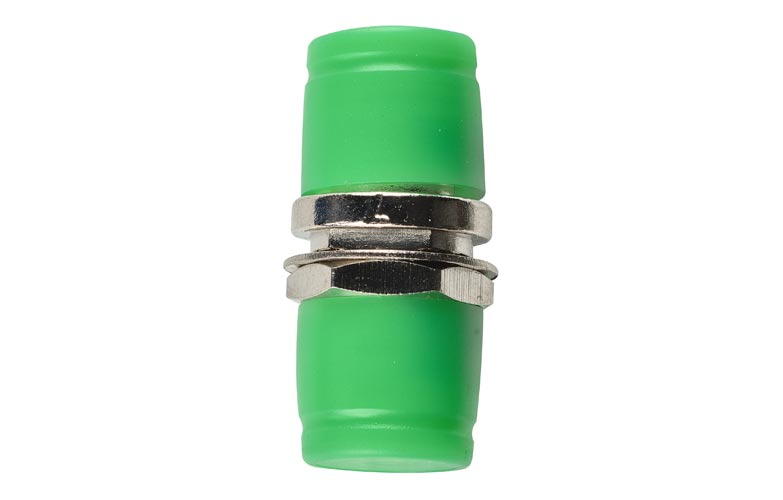

FC/APC SM Adapter D-type внешний вид 2

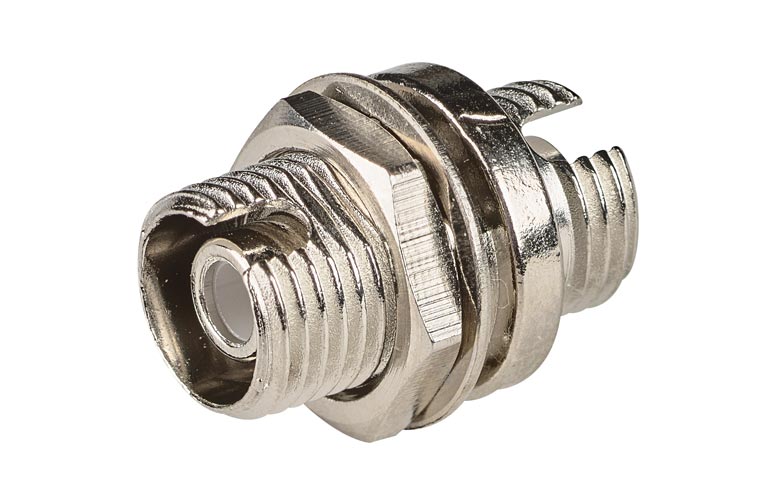

FC/APC SM Adapter D-type внешний вид 3

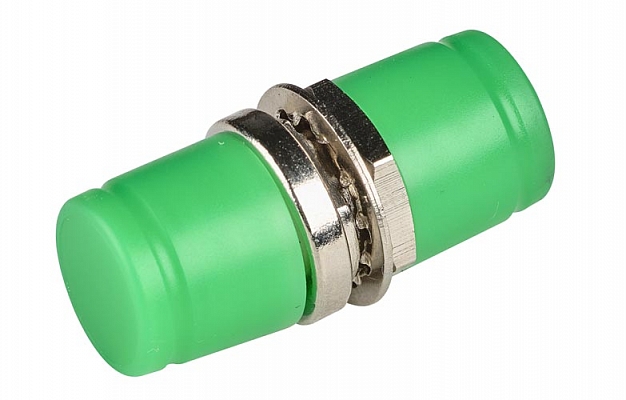

FC/APC SM Adapter D-type внешний вид 4

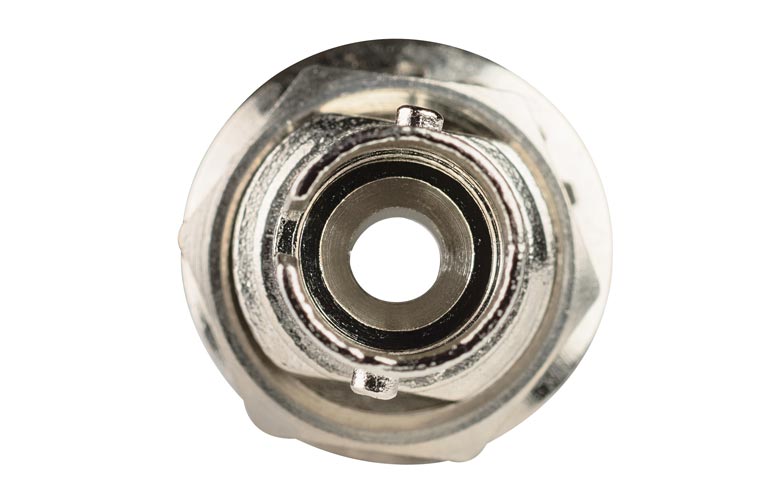

FC/APC SM Adapter D-type внешний вид 1
FC/APC SM Adapter D-type внешний вид 2
FC/APC SM Adapter D-type внешний вид 3
FC/APC SM Adapter D-type внешний вид 4

About this item (PDF)

Ask a question

The FC/APC SM adapter (female) is used for jointing FC optical connectors with angle spherical polishing (APC) of single-mode fiber (SM).

The adapter body is made of nickel-plated brass. The optical connector ferrules are mated by a precision alignment sleeve made of zirconia ceramics. The connectors are secured through an 8 mm diameter threaded connection. On the connecting parts of the adapter body, there are grooves for the connector terminal keys. The adapter is fastened on the adapter plate with a lock washer and 9.0 mm nut. The edge of the adapter holding diameter threaded part is chamfered in the shape of the letter D.

Green plastic caps to protect the adapters from dust before the installation of connectors are included.


Scroll to related products

Price
Retail price, with Vat Date 02.05.2024 18.72 RUB
Retail price, W/out Vat Date 02.05.2024 15.60 RUB
Item parameters
Technical specifications
Body material Nickel-plated brass
Alignment sleeve material Ceramic
Storage temperature, °C -40 ... +80
Operating temperature, °C -20 ... +70
Dimensions, mm 11х11х15
Weight, g 6,8
Kit content
Adapter body
 1 pc.
Nut
 1 pc.
Lock washer
 1 pc.
Plastic cap
 2 pcs.
Logistic data
Volume, m3: 0,000010
Weight, kg: 0,0068
