CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m

Part number: 130706-00051 Copyed at buffer
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 1
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 2
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 3
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 4
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 5
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 1
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 2
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 3
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 4
CCD ATKK-16SM-2000 Emergency Transportable Cable Kit, 16 fibers , 2000 m внешний вид 5

About this item (PDF)

Ask a question

The ATKK-16SM-2000 Emergency Transportable Cable Kit is intended for fast temporary restoration of failures on long-distance fiber optic communication line or when it is difficult to access the area of failure. For example, the kit can be used in a railroad accident, flooding, or a harsh chemical spill.

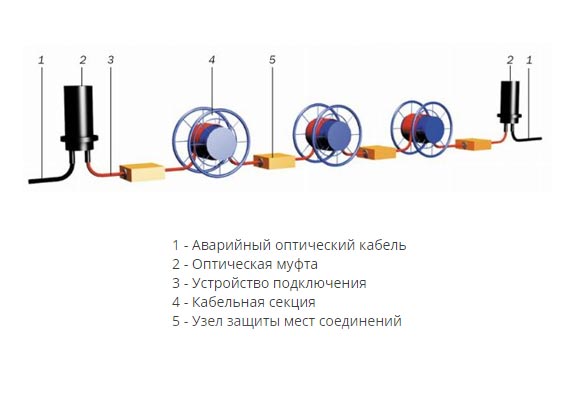

The ATKK includes separate cable sections connected in series. The fiber optic cable of each section is coiled on a metal cable reel and preterminated with FC/UPC connectors at both ends. In the transport position, the connectors are protected by corrugated pipes.

In the operating position, each end of the fiber optic cable section is connected to the junction protection box (UZMS). The UZMS is a tight sealed metal box that has two compartments. There are FC adapters installed on the UZMS patch panel. The UZMS box can be easily mounted on the cable section reel flange.

The connection device is the MTOK-V3 fiber optic closure with a 10 m piece of fiber optic cable. One cable end is fed into the closure, the other one is preterminated with FC/UPC connectors (protected by corrugated pipes in the transport position). The fibers excess for jointing the connection device with the damaged fiber optic cable or station equipment is routed in the closure fiber splice tray.

The ATKK fibers are connected to the damaged cable fibers using the mechanical connectors supplied with the connection device. A standard set of tools for fiber optic cable is required to install the ATKK. No special tools are needed to deploy and install the ATKK.

The ATKK of up to 4 km long can be supplied upon request.


Scroll to related products

Price
Retail price, with Vat Date 29.04.2024 1 371 137.90 RUB
Retail price, W/out Vat Date 29.04.2024 1 142 614.92 RUB
Item parameters
Technical specifications
Fiber optic cable brand DPO-P-16U (2x8)-1.5kN
Fibers, pcs. 16
Crush resistance , kN/cm 0,3
Maximum 1,5
Length, m:
- total length of the ATKK fiber optic cable 2020
- cable section length 500
- connection device cable length 10
Number of the ATKK cable sections 4
Fiber optic closure type MTOK-V3
Operating temperature, °C -40...+70
Installation temperature, °С -30...+50

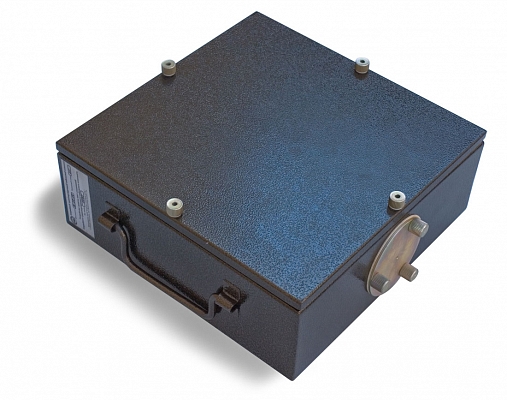

UZMS box dimensions, mm 400х400х150
Weight, kg:
- ATKK total weight 245 max
- cable section 50
- connection device 5
- UZMS box 7
Kit content

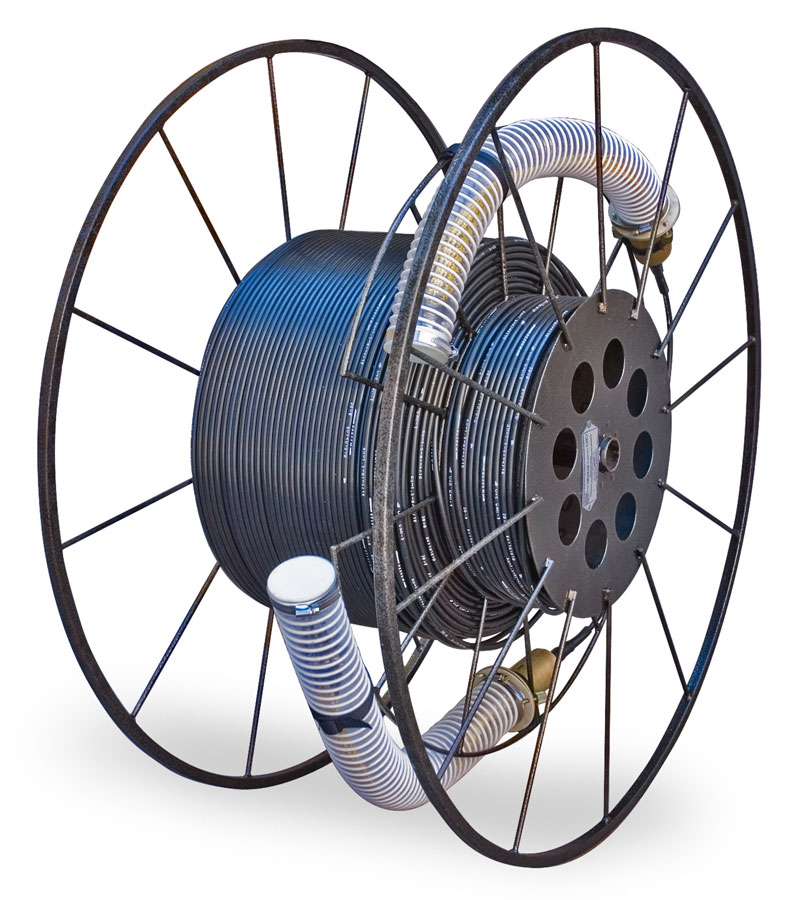

Cable section:

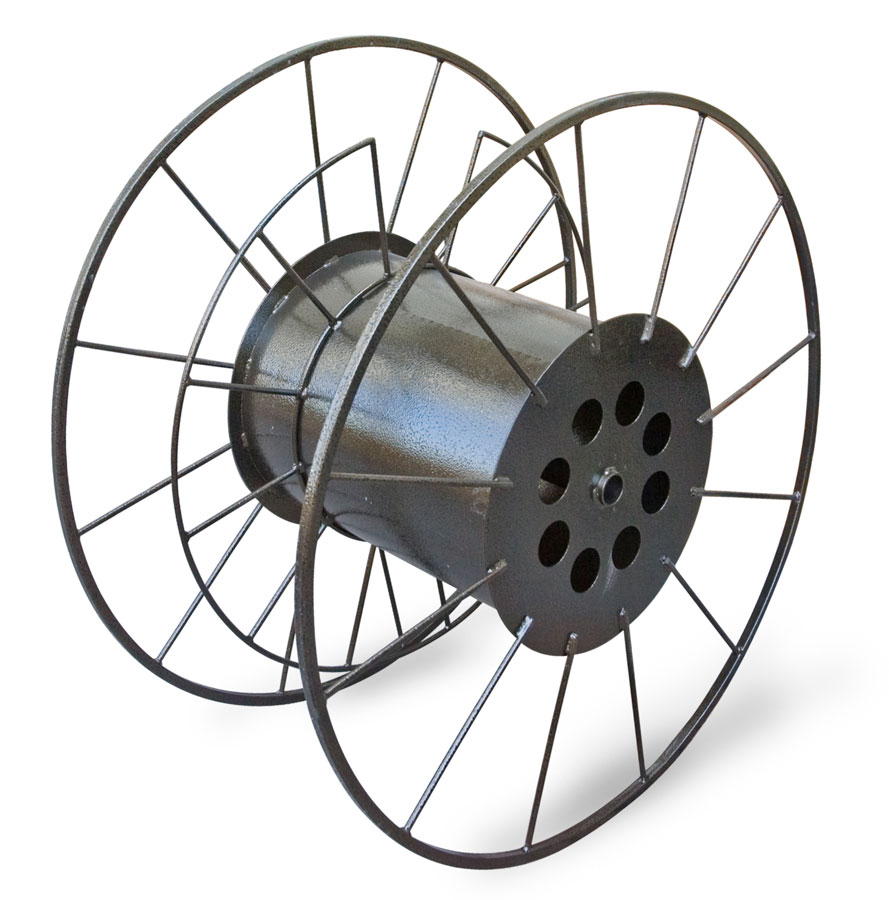

- steel cable reel
 4 pcs.
- 500m cable assembly with a connection node (16 fiber splices)
 1 pc.
Connection device:
- MTOK V3 closure
 2 pcs.
- Fibrlok II 2529
 32 pcs.

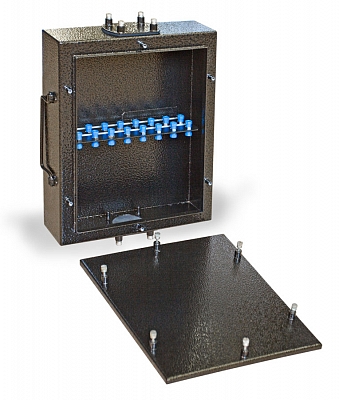

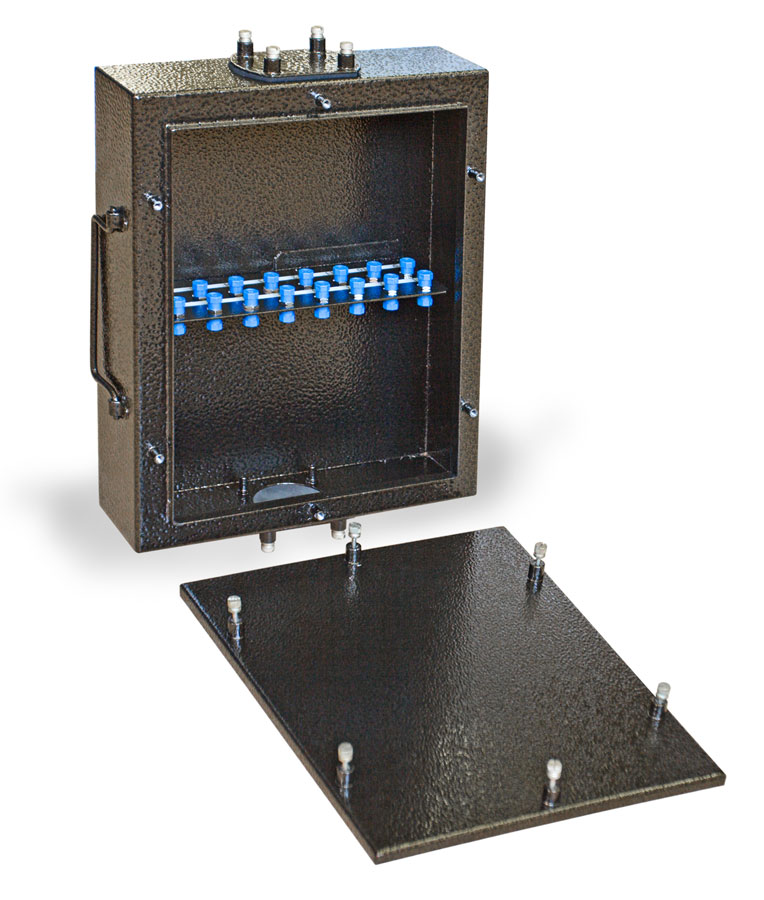

UZMS box:

- steel body
 5 pcs.
- FC/UPC adapter
 80 pcs.
Logistic data
Volume, m3: 0,365794
Weight, kg: 390
