CCD BSh-1-3 Cable Reel

Part number: 130108-00114 Copyed at buffer

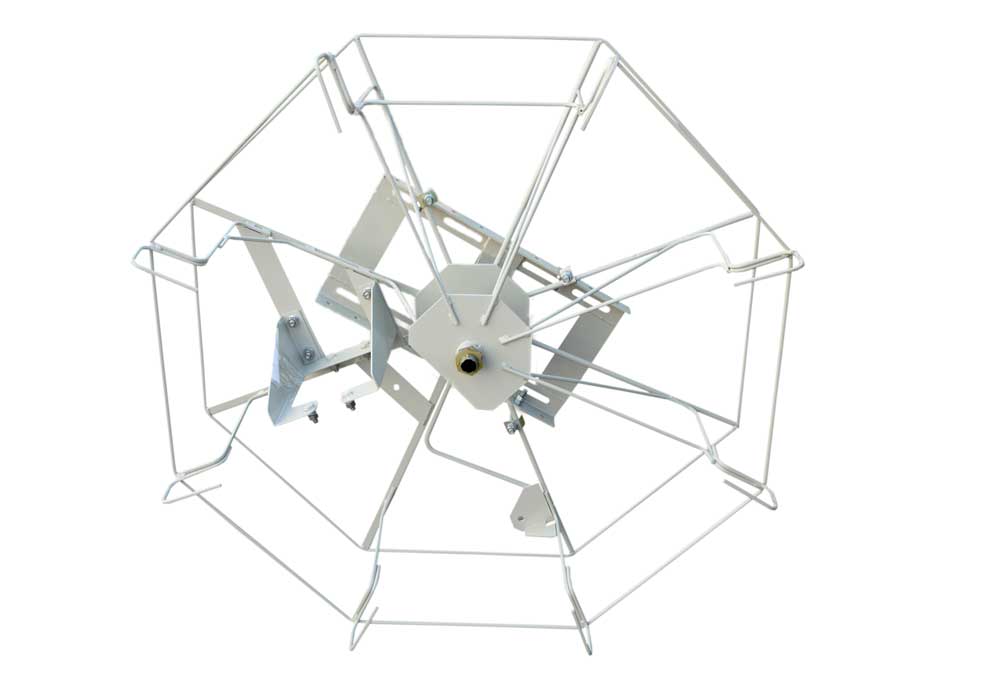

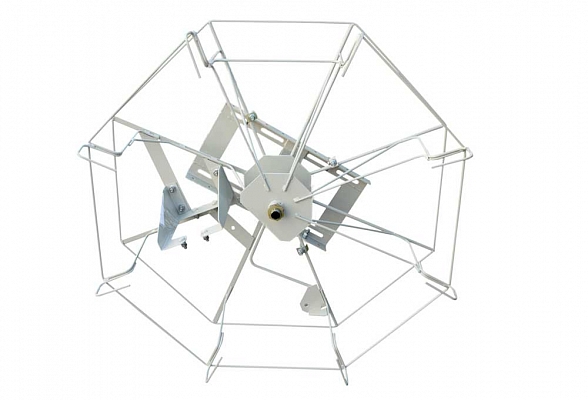

CCD BSh-1-3 Cable Reel

About this item (PDF)

Ask a question (1)

The ССD BSh rotating cable reels are used to install the MOPG-M and MTOK closures with the excess OPGW and branching ADSS dielectric cable on power transmission line towers. When the excess cable is coiled on the reel, the axial cable rotation in the closure ports is eliminated.

The BSh-1 cable reel is fastened to the round concrete poles using the UPSh-01 suspension assembly, and to the SV-type reinforced concrete poles using the UPSh-02 suspension assembly.


Scroll to related products

Price
Retail price, with Vat Date 27.04.2024 23 420.76 RUB
Retail price, W/out Vat Date 27.04.2024 19 517.30 RUB
Item parameters
Technical specifications
Number of closures 1 pc.
Cable reel size, mm 1217х1217х465
Frame size, mm 580х305х50
Weight, kg 39
Kit content
Cable reel
 1 pc.
Frame
 1 pc.
Logistic data
Volume, m3: 0,797148
Weight, kg: 39
