DKSh-04.003.1.N.K.M Traffic Control Cabinet
Part number:
130503-00343
Copyed at buffer
About this item (PDF)

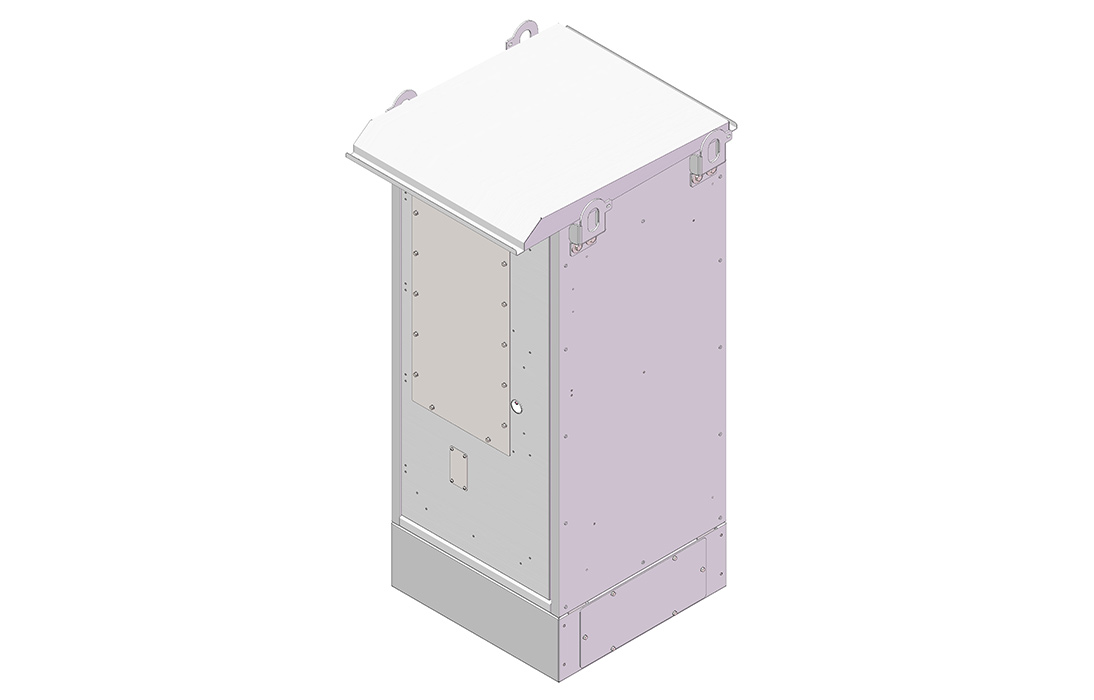

The DKSh-04.003.1.N.K.M cabinet is intended for accommodation of mobile communication equipment, stationary control and monitoring system equipment, power supply, and other auxiliary devices.
DKSh cabinets are installed outdoors, ensure protection against various atmospheric precipitations, dust and maintain the required temperature conditions. International application classification - "outdoor".
DKSh cabinets have vandal-proof design to prevent unauthorized access to the equipment.
It can be used for operation under 24/7/365 conditions.
TECHNICAL DATA
CABINET DESIGN FEATURES
The DKSh has an all-welded structure and provides increased burglar resistance.
The cabinet doors are equipped with hidden hinges and have lever safe locks. The cabinet doors are locked with four half-turns of the key minimum.
The DKSh cabinet is equipped with a base for further installation on a foundation.
The DKSh cabinet is equipped with a door opening sensor.
It provides protection from atmospheric precipitations and dust under GOST 14254-2015 - IP65.
On the inner surface of the door, there is a pocket for documents.
The cabinet provides LED lighting for 220 V rated supply voltage.
Warning! The light turns on automatically when the door is opened and turns off when the door is closed.
The ceiling, walls, floor and door of DKSh are insulated from the cold. The outer layer of the cabinet body consists of 03Х16Н15М3 stainless steel (AISI 316L) 2.0 mm thick.
Thermal insulation - Adgilin NPE 10.
The outer layer of the DKSh cabinet is a polymer powder coating resistant to precipitations.

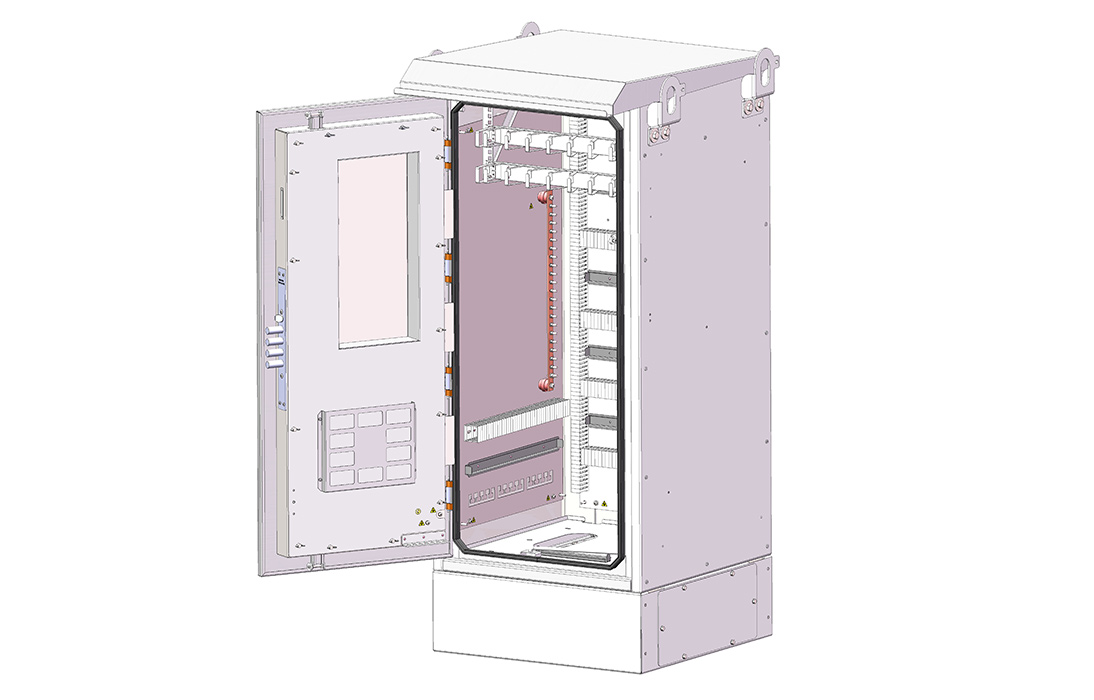

The DKSh door can be removed to facilitate transportation and installation of equipment in the doorway.
The plate with cable entries ( Rittal gland plate) is located in the DKSh base to route-in the cables.
DKSh cabinets are shipped mounted on a removable base with a 200 mm height.
