CCD 686х308 mm MODF Foundation Block

Part number: 110504-00010 Copyed at buffer
CCD 686х308 mm MODF Foundation Block внешний вид 1
CCD 686х308 mm MODF Foundation Block внешний вид 2
CCD 686х308 mm MODF Foundation Block внешний вид 1
CCD 686х308 mm MODF Foundation Block внешний вид 2

About this item (PDF)

Ask a question

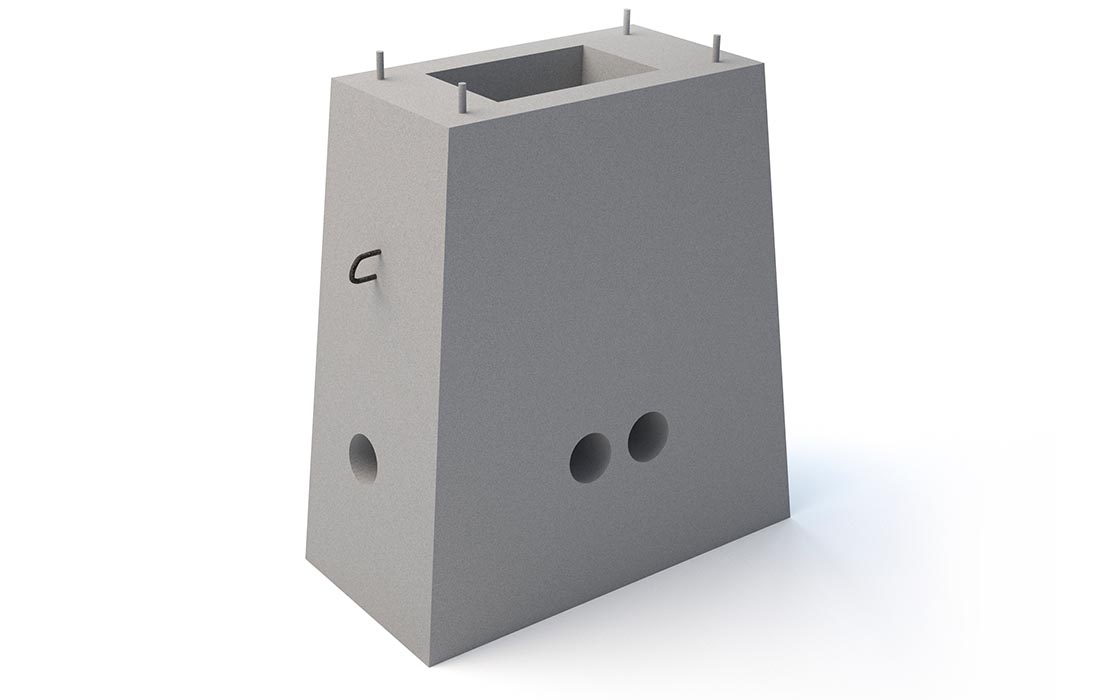

The foundation block is used for outdoor installation of MODF cabinet during the broadband access network deployment.

It is a reinforced concrete block with utility elements and four bolts on the top surface to anchor the MODF basement. M10 DIN 933 bolts extend for 100 mm above the block surface.


Scroll to related products

Product withdrawn from sale

If you are interested in this product, you can contact the responsible manager who will pick up the replacement and provide professional advice.

Ведущий менеджер по развитию продукта
Гордеев Дмитрий Юрьевич
Phone: +7 (495) 786-34-34, доб.464
E-Mail: gordeev@ssd.ru
Send request
Item parameters
Technical specifications
Length, mm 1100
Width, mm 540
Height, mm 1170
Bolts, mm (thread and length) М10х100
Weight, kg 1125
Kit content
Foundation block
 1 pc.
Logistic data
Volume, m3: 0,694980
Weight, kg: 1125
