GV-3222-02M Vibration Damper

Part number: 130801-01636 Copyed at buffer

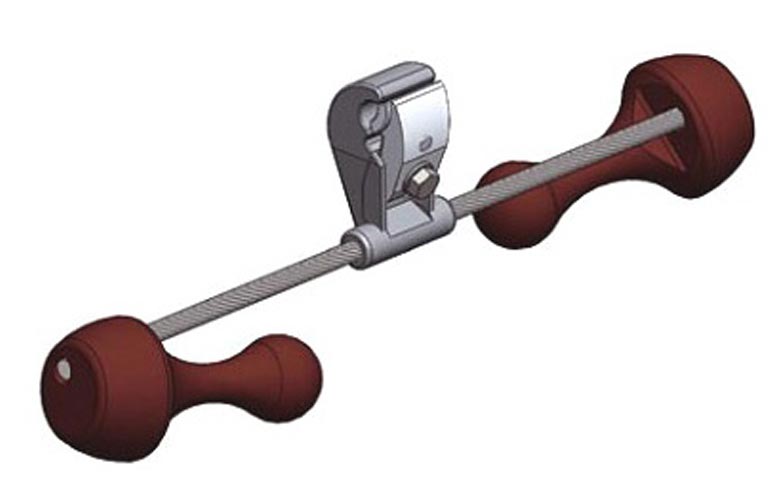

GV-3222-02M Vibration Damper

About this item (PDF)

Ask a question

The vibration damper is used for protection of non-insulated wires, OPGW cables, and ADSS fiber optic cables installed on power transmission towers from excessive mechanical stresses caused by wind.

The detailed specification of the vibration dampers is provided in the group overview.


Price
Retail price, with Vat Date 27.04.2024 2 224.20 RUB
Retail price, W/out Vat Date 27.04.2024 1 853.50 RUB
Item parameters
Technical specifications
Weight of damper counterweights, kg 0.8
Length of damper, mm 300
Messenger cable diameter, mm 9.1
Cable diameter range, mm 9.0-15.1
Dimensions, mm 300x120x100
Assembled weight, kg 2.3
Kit content
Clamp with plate 1 pc.
Messenger cable 1 pc.
Damper counterweight 2 pcs.
Fastening bolt, nut and spring washers 1 set
Logistic data
Volume, m3: 0,004389
Weight, kg: 2,3
Marking
ГВ — гаситель вибрации
3 — номинальная масса груза
2 — длина гасителя
2 — диаметр троса гасителя
2 — посадочный диаметр
02М — модификация
