Part number: 130801-01225 Copyed at buffer

About this item (PDF)

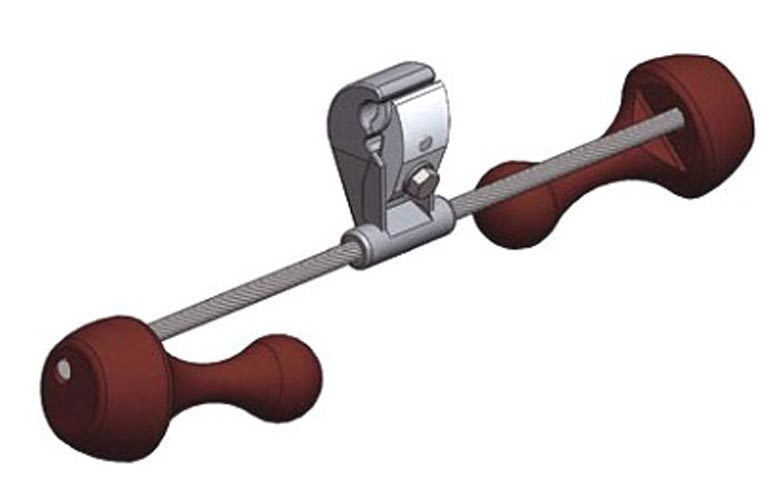

The vibration damper is used for protection of non-insulated wires, OPGW cables, and ADSS fiber optic cables installed on power transmission towers from excessive mechanical stresses caused by wind.

The detailed specification of the vibration dampers is provided in the group overview.


Price
Retail price, with Vat Date 20.06.2024 2 401.24 RUB
Retail price, W/out Vat Date 20.06.2024 2 001.03 RUB
Item parameters
Technical specifications
Weight of damper counterweight, kg 1.6
Length of damper, mm 350
Messenger cable diameter, mm 13
Cable diameter range, mm 15.2–22.5
Dimensions, mm 350x130x100
Assembled weight, kg 4.1
Kit content
Clamp with plate 1 pc.
Messenger cable 1 pc.
Damper counterweight 2 pcs.
Fastening bolt, nut and spring washers 1 set
Logistic data
Volume, m3: 0,004267
Weight, kg: 4,444444
Marking
ГВ гаситель вибрации
4 номинальная масса груза
3 длина гасителя
4 диаметр троса гасителя
3 посадочный диаметр
02М модификация
