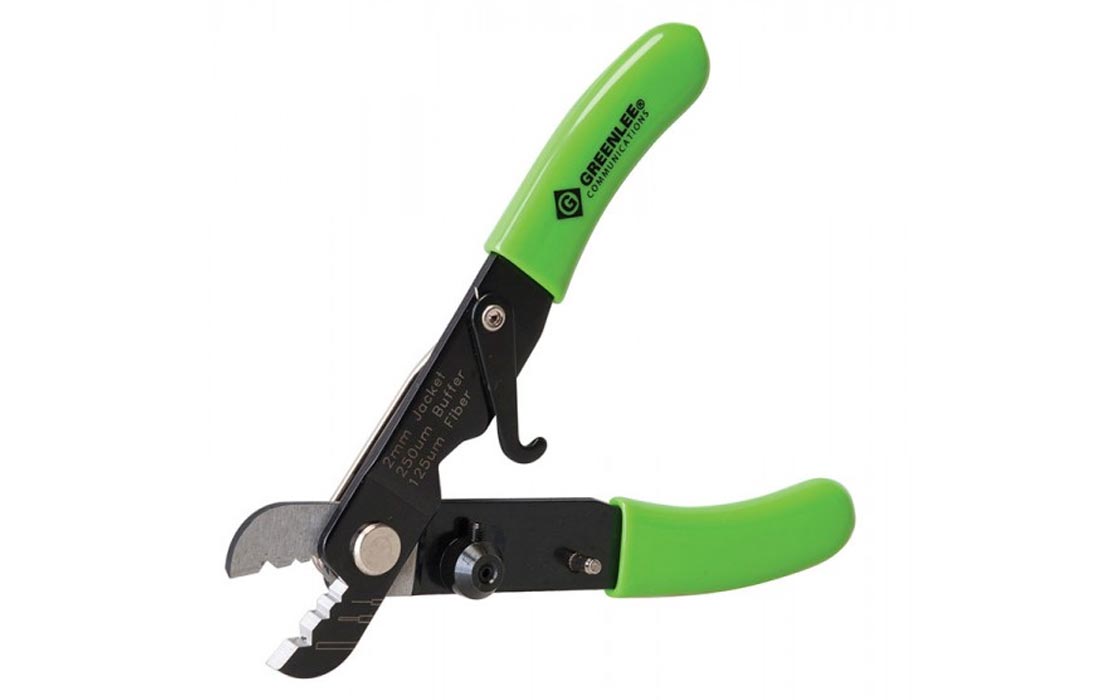

PA1162 Greenlee PT-1162 3 Hole Fiber Optic Stripper
Part number:
121105-00335
Copyed at buffer
About this item (PDF)
The 3 Hole Fiber Optic Stripper is intended to perform three stripping operations. It assures 3 mm cable jacket removal, 900 µm buffer coating and 250 µm primary acrylate coating stripping from standard 125 µm fiber.
There are three V-openings of different size on the stripper jaws. In closed position, these openings form calibrated holes to strip jacket, buffer, and primary acrylate coatings from fiber. Size of the holes is factory set and requires no adjustments throughout its service life.
Fiber preparation for splicing or termination with connectors are carried out in three steps. First is removing 1.6-3mm cable jacket, then 900 µm buffer coating is stripped off, and the last is 250 µm primary acrylate coating is stripped.
There is a lock that holds the blades closed when not in use.
121106-00165
02/05/2024

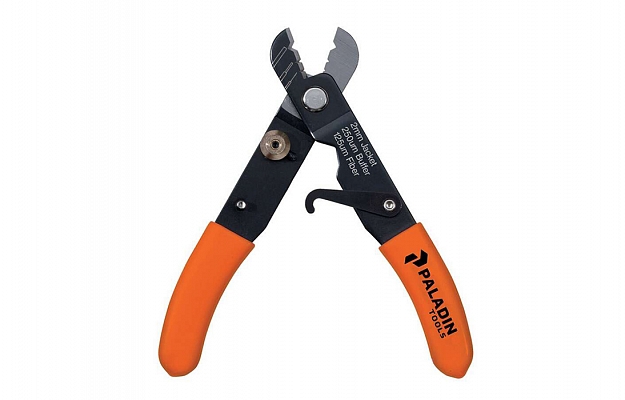

Analogues
