Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm)

Part number: 130706-02204 Copyed at buffer

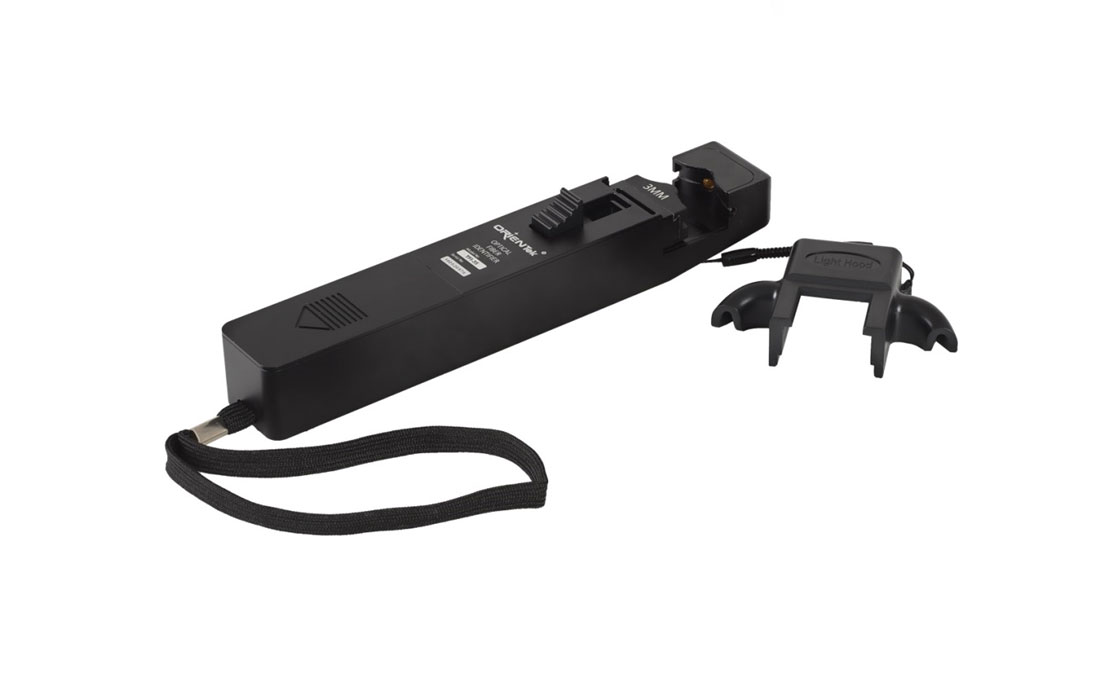

Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm) внешний вид 1

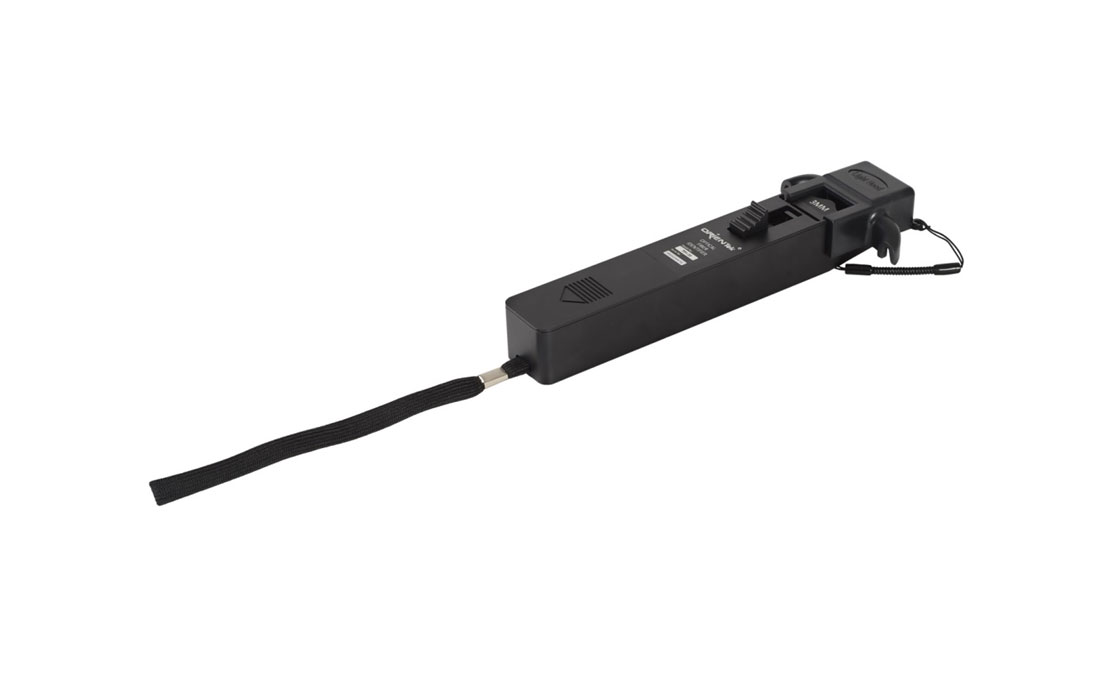

Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm) внешний вид 2

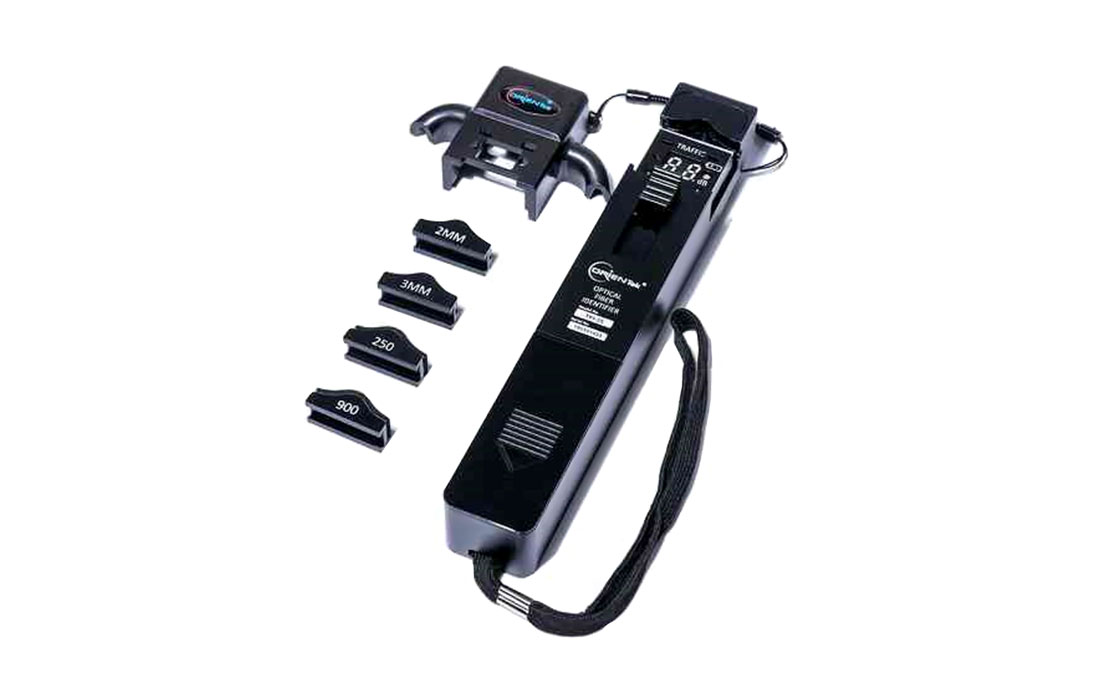

Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm) внешний вид 3
Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm) внешний вид 1
Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm) внешний вид 2
Orientek TFI-35 Live Fiber Identifier (2 kHz, 1 kHz, 270 Hz/0.9, 0.25, 2.0, 3.0 mm) внешний вид 3

About this item (PDF)

Ask a question

The TFI-35 Live Fiber Identifier is used to detect optical signal and traffic direction in optical fiber. The optical signal is detected at the fiber bend within the device adapter nozzle. During the detection process, the fiber is not damaged, and the signal transmission is not disturbed.

The kit includes 4 adapters for different types of fiber buffer or coating: 3 mm, 2 mm, 900 µm, 250 µm.


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 34 920.00 RUB
Retail price, W/out Vat Date 28.04.2024 29 100.00 RUB
Item parameters
Technical specifications
Operating wavelengths, nm 800 - 1700
Types of detectable signals CW, 270 Hz ±5%, 1kHz ±5%, 2kHz ±5%
Receiver type 1 mm InGaAs – 2 pcs.
Adapters for different buffer coating diameters: • Ø 0.25 (for 250 µm fiber) • Ø 0.9 (for 0.9 mm buffer coating) • Ø 2.0 (for 2.0 mm buffer coating) • Ø 3.0 (for 3.0 mm buffer coating)
Signal direction indication Left & Right, LED
Signal detection range at different modulation frequencies, for different buffer coating diameters:
- Ø0.9, Ø2.0, Ø3.0 --30 ... 0 dBm (270 Hz, 1 kHz), -25 ... 0 dBm (2 kHz)
- Ø0.25 -25 ... 0 dBm (1 kHz, 2 kHz), -20 ... 0 dBm (2 kHz)
Signal direction test range (continuous CW/0.9 mm) -46 ... 10 dBm (1310 nm), -50 ... 10 dBm (1550 nm)
Signal power test range (CW continuous/0.9 mm) -50 ... +10 dBm
Typical insertion loss 0.8 dB at 1310 nm, 2.5 dB at 1550 nm
Power supply 9V Krona battery – 1 pc.
Operating temperature range, °C -10...+60
Storage temperature range, °C -25...+70
Dimensions, mm 196х30.5х27
Weight, g 200
Kit content
Orientek TFI-35 Live Fiber Identifier
 1 pc.
250 µm adapter
 1 pc.
900 µm adapter
 1 pc.
2 mm adapter
 1 pc.
3 mm adapter
 1 pc.
Soft case
 1 pc.
Logistic data
Volume, m3: 0,003000
Weight, kg: 0,7
