Part number: 130905-00161 Copyed at buffer
DOL-P-12U(1х8)(1х4)-2.7 kN Fiber Optic Cable

About this item (PDF)

The DOL fiber optic cable is intended for indoor and outdoor applications for installation in cable ducts, pipes, trays, cable blocks, tunnels, collectors, on bridges and overhead trays, in the ground, between buildings and other structures and in soil groups 1-3.

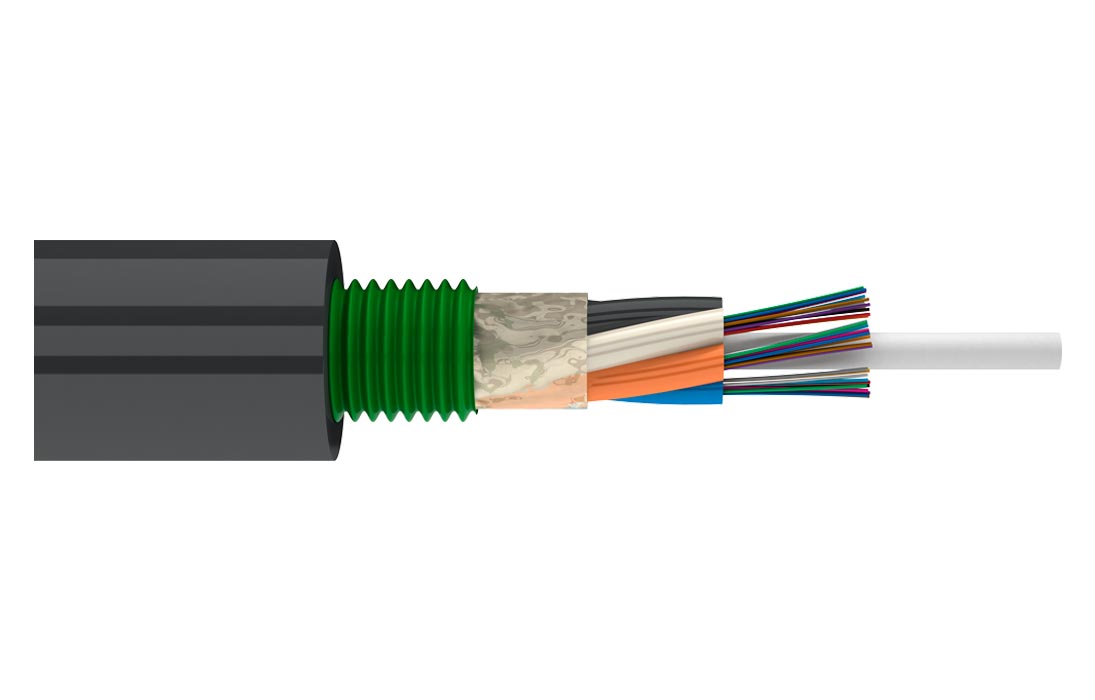

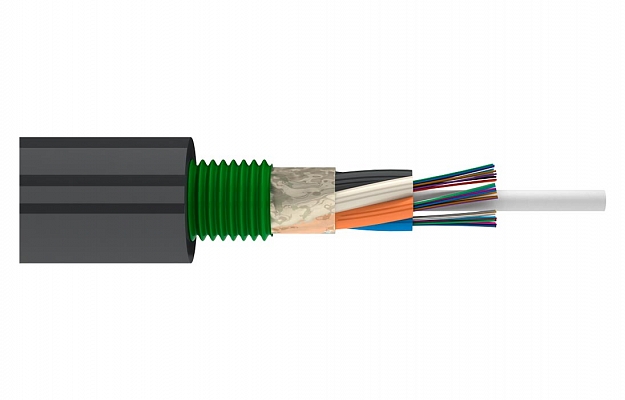

The cable consists of a number of buffer tubes stranded over a fiberglass (FRP) rod and protected by corrugated steel tape and a jacket made of medium density polyethylene (MDPE). The free space in the loose tube and in the cable core is filled with hydrophobic gel.

The cable has a lightweight design (without intermediate sheath).

The DOL cables have the most optimal design among cables armored with steel tape.


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 91 920.00 RUB
Retail price, W/out Vat Date 28.04.2024 76 600.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 2.7
Crush resistance, kN/cm 0.3
Number of fibers 12
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning or equivalent
Min. fiber bending radius min. 3 mm (for 10 min.)
Cable diameter, mm 10.6
Cable weight, kg/km 121.3
Cable bending radius, mm 172
Operating temperature, °C -50…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
ДОЛ тип кабеля
П материал наружной оболочки (полиэтилен средней плотности)
12 кол-во оптических волокон
У тип оптических волокон (усовершенствованное одномодовое волокно, с расширенной полосой рабочих длин волн с пониженными затуханиями, соответствующее рекомендациям G.652D)
2,7кН макс. допустимая растягивающая нагрузка
