DPS-N-16U(4x4)-7 kN Fiber Optic Cable

Part number: 130905-00503 Copyed at buffer

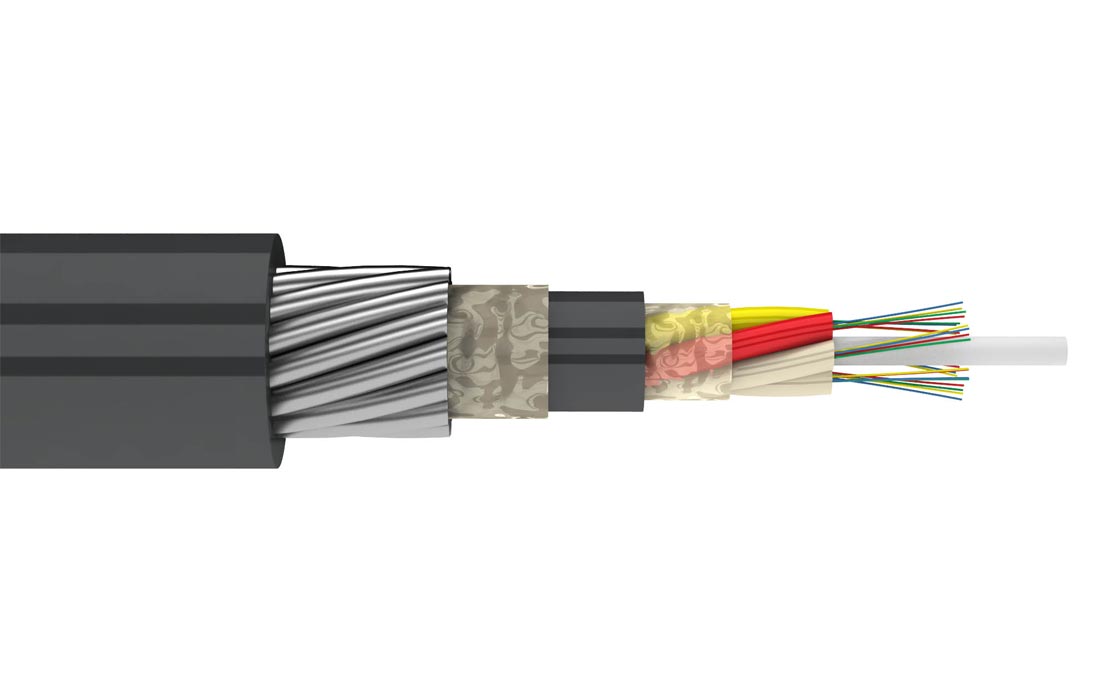

DPS-N-16U(4x4)-7 kN Fiber Optic Cable внешний вид 1
DPS-N-16U(4x4)-7 kN Fiber Optic Cable внешний вид 2
DPS-N-16U(4x4)-7 kN Fiber Optic Cable внешний вид 1
DPS-N-16U(4x4)-7 kN Fiber Optic Cable внешний вид 2

About this item (PDF)

Ask a question (1)

The DPS fiber optic cable is intended for outdoor applications for installation in soils of any category, cable ducts, pipes, cable blocks, tunnels, collectors, on bridges and hanging cable trays and for indoor applications if there are especially high requirements for mechanical stability.

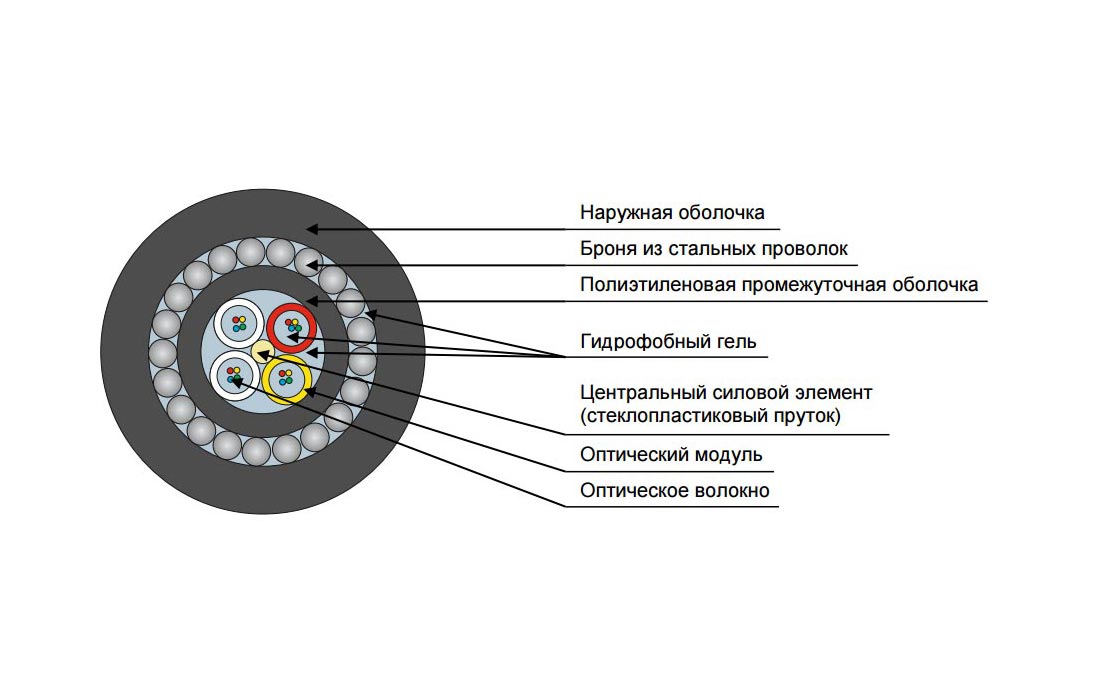

The cable consists of a number of buffer tubes stranded over a fiberglass (FRP) rod covered with an inner polyethylene sheath and protected by the armor made of galvanized steel wires and the outer cable jacket made of medium density polyethylene (MDPE). The free space inside the buffer tubes, the cable core and in the armor layer is filled with a hydrophobic gel.

N means that the cable sheath is made of a polymeric material that does not spread combustion in case of single installation (Class PRGO1, GOST 53315-2009).


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 167 400.00 RUB
Retail price, W/out Vat Date 28.04.2024 139 500.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 7
Crush resistance, N/cm 400
Number of fibers 16
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning or equivalent compliant with specified standards
Nominal outer diameter of cable, mm 11.2
Min. cable bending radius, mm 186
Operating temperature, °C -60…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Cable weight, kg/km 199.3
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
ДПС — тип кабеля
Н — материал наружной оболочки (полимерная композиция, не распространяющая горение при одиночной прокладке)
16 — кол-во оптических волокон
У — тип оптических волокон (усовершенствованное одномодовое волокно, с расширенной полосой рабочих длин волн с пониженными затуханиями, соответствующее рекомендациям G.652D)
7кН — макс. допустимое растягивающее усилие
Video
Product Reviews / Questions (1)

Related products

120808-00021 28/04/2024
  • Stock availibility
  • Moscow, Domodedovo:
    780
  • Moscow:
    0
  • Novosibirsk:
    123
  • Ekaterinburg:
    113
  • Forecast:
    2-4 недели *
LSO-40 Warning Signal Tape"Caution! Fiber Optic Cable!" , 40mm x 500m
Stock availibility
Retail
481.98 rub
roll
120808-00022 28/04/2024
  • Stock availibility
  • Moscow, Domodedovo:
    112
  • Moscow:
    0
  • Novosibirsk:
    60
  • Ekaterinburg:
    43
  • Forecast:
    2-4 недели *
LSO-70 Warning Signal Tape"Caution! Fiber Optic Cable!" , 70mm x 500m
Stock availibility
Retail
810.56 rub
roll

Analogues

130905-01118 28/04/2024
  • Stock availibility
  • Moscow, Domodedovo:
    0.300
  • Moscow:
    0
  • Novosibirsk:
    0
  • Ekaterinburg:
    0
  • Forecast:
    4-6 недель *
TOS-ng(A)-HF-16U-7 kN Fiber Optic Cable
Stock availibility
Retail
46 000.00 rub
km
Copied at buffer

Central warehouse: 142001, Domodedovo, Promishlennaya st.

Concrete goods warehouse: 115088, Moscow, st. Yuzhnoportovaya d.7A, Working hours: Monday-Friday: from 8:00 to 17:00 (Saturday, Sunday closed)


Delivery time: Delivery time between warehouses from the moment of payment confirmation can vary from 2 to 3 days.


Copied at buffer

Projected delivery time does not take into account seasonality, production workload and ordered quantity. This period is for informational purposes and is the average value of the order fulfillment for this product over the past 12 months.


Important: The exact delivery time is agreed in the specification.


Copied at buffer

Regional warehouse: 630110, Novosibirsk, st. Bogdana Khmelnitsky, 93 st.6, Working hours: Monday-Friday: from 8:00 to 17:00 (Saturday, Sunday closed). Tel.: +7 (383) 312-04-34


Copied at buffer

Regional warehouse: 620034, Ekaterinburg, st. Elizabethan Highway, 39, Working hours: Monday-Friday: from 8:00 to 17:00 (Saturday, Sunday closed). Tel.: +7 (343) 302-54-34


Copied at buffer
  1. «Yes»: total distributor discount;
  2. «Exclusive»: a discount on a list price or item other than a general discount;
  3. «Limited», depends on quantity:
    • Less than a small wholesale lot = Small wholesale + 2%.
    • More than a small wholesale batch, but less than a large wholesale = Large wholesale.
    • More large wholesale lot = Large wholesale +2%.
A surcharge applies when ordering shorter lengths. Contact your operator.
Copied at buffer
  1. «Yes»: partner's total discount;
  2. «Limited»: a price list discount other than the general discount;
  3. «None», depends on quantity:
    • Less than a small wholesale lot = Affiliate discount.
    • More than a small wholesale lot, but less than a large wholesale lot = Small wholesale; If the Affiliate discount is greater than the Small wholesale, then the Affiliate discount.
    • More large wholesale lot = Large wholesale.
Cable parameters
  • 130905-00503

    DPS-N-16U(4x4)-7 kN Fiber Optic Cable

  • Min. the consignment
    from 1000 m.
  • Own length
    m
  • Comment
130905-00503
DPS-N-16U(4x4)-7 kN Fiber Optic Cable
View:
List
Map
Availability of nomenclature from distributors: 0 km.
Availability of nomenclature from distributors: 0 km.
Attention! The allowable quantity of goods has been exceeded.

Maximum available quantity of goods 0.


If you need a quantity of goods that exceeds the available, contact the responsible manager.


Ведущий менеджер по развитию продукта
Панков Леонид Валерьевич
Phone: +7 (495) 786-34-34, доб. 473
E-Mail: pankov@ssd.ru
Ok
Change
DPS-N-16U(4x4)-7 kN Fiber Optic Cable
Thank you, your request has been sent to the manager.
DPS-N-16U(4x4)-7 kN Fiber Optic Cable
Thank you, your request has been sent to the manager.
DPS-N-16U(4x4)-7 kN Fiber Optic Cable

Advice: To automatically fill in the fields every time - register and log in!

The download of the file will now begin.
DPS-N-16U(4x4)-7 kN Fiber Optic Cable
Product manager:
Phone:
E-Mail:
1 review
  • Без имени
    24.08.2023

    Хоть и указана растягивающая нагрузка 7кН, кабель держит больше 7кН (проволок много для перекрытия сердечника). И огромный плюс – нет закручивания при размотке.
