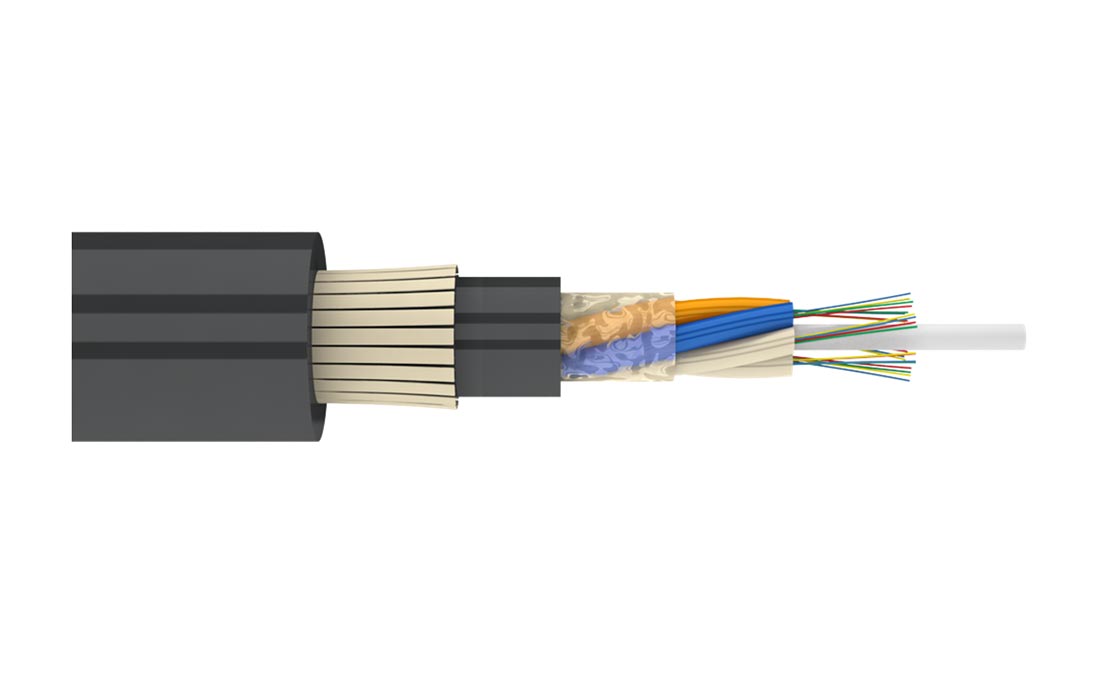

DPTs-P-16U(2x8)-7 kN Fiber Optic Cable

Part number: 130905-01438 Copyed at buffer
DPTs-P-16U(2x8)-7 kN Fiber Optic Cable
DPTs-P-16U(2x8)-7 kN Fiber Optic Cable

About this item (PDF)

Ask a question (1)

The DPTs fiber optic cables are intended for suspension on poles of overhead communication lines, railroad contact and auto-blocking lines, power transmission lines, street lighting poles, power utility lines, between buildings and other structures. It can also be used for construction of fiber optic lines in cable ducts, pipes (including by air blowing installation method), cable blocks, tunnels, collectors, on bridges and overpasses.

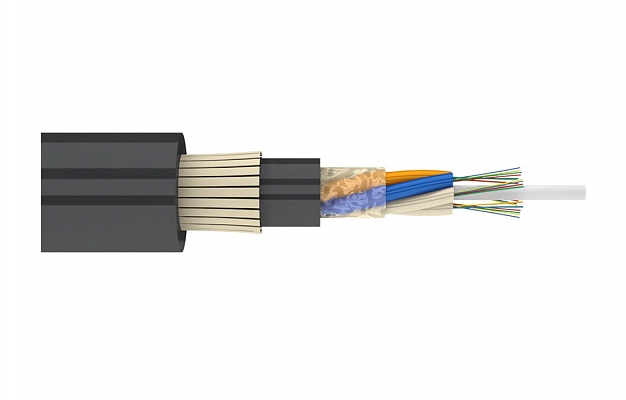

The cable consists of a number of buffer tubes stranded in one layer over a fiberglass (FRP) rod protected with an inner polyethylene sheath and a layer of reinforcing fiberglass threads covered by an outer jacket made of medium density polyethylene (MDPE). The free space inside the buffer tubes is filled with hydrophobic gel.

The DPTs cables produced by Inkab have the most cost-effective design among ADSS DPT cables thanks to the use of reinforcing fiberglass threads.


Scroll to related products

Price
Retail price, with Vat Date 27.04.2024 114 338.57 RUB
Retail price, W/out Vat Date 27.04.2024 95 282.14 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 7
Crush resistance, N/cm 300
Number of fibers 16
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning or equivalent compliant with specified standards
Nominal outer diameter of cable, mm 12.7
Min. cable bending radius, mm 190.5
Operating temperature, °C -60…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Cable weight, kg/km 127.1
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
DPTs — cable type
P — medium density polyethylene (MDPE)
16 — number of fibers
U — fiber optic type (improved single-mode fiber, with expanded operating wavelength band with reduced attenuation, compliant with G.652D recommendations)
7 kN — maximum tensile strength
Video
Product Reviews / Questions (1)
