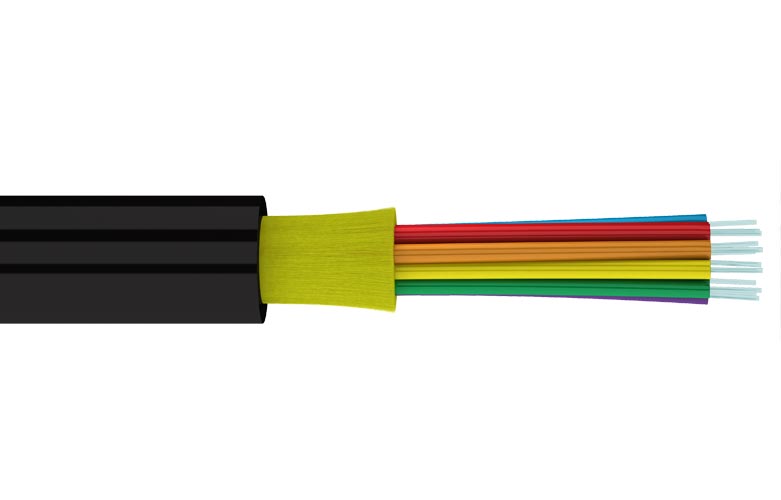

V OBR-U ng(A)-HF 12G657А 800N InLAN Distribution Fiber Optic Cable

Part number: 130905-00657 Copyed at buffer
V OBR-U ng(A)-HF 12G657А 800N InLAN Distribution Fiber Optic Cable
V OBR-U ng(A)-HF 12G657А 800N InLAN Distribution Fiber Optic Cable

About this item (PDF)

Ask a question (3)

The V OBR-U ng(A)-HF fiber optic cables are intended for indoor and outdoor applications for installation in cable trays and ducts, pipes, blocks, tunnels, on building facades, for suspension on poles of communication lines, power transmission lines, street lighting poles, between buildings and other structures.

The cable contains a bundle of fibers in a buffer coating covered with a layer of aramid reinforcing yarns. The cable outer jacket is made of halogen-free flame retardant polymer (LSZH) compound with low smoke emission. The cable jacket for indoor installation is colored white during production.

Color identification of fibers:

No. | Color code:
01. Blue blu.png
02. Orange ora.png
03. Green gre.png
04. Brown bro.png
05. Gray gra.png
06. White whi.png
07. Red red.png
08. Black bla.png
09. Yellow yel.png
10. Purple vio.png
11. Pink pin.png
12. Aqua bir.png
13. Blue + black ring blu1.png
14. Orange + black ring ora1.png
15. Green + black ring gre1.png
16. Brown + black ring bro1.png
17. Gray + black ring gra1.png
18. White + black ring whi1.png
19. Red + black ring red1.png
20. Natural nat.png
21. Yellow + black ring yel1.png
22. Purple + black ring vio1.png
23. Pink + black ring pin1.png
24. Aqua + black ring bir1.png

*The fiber colors can be changed upon request of the customer.


Scroll to related products

Price
Retail price, with Vat Date 29.04.2024 106 800.00 RUB
Retail price, W/out Vat Date 29.04.2024 89 000.00 RUB
Item parameters
Technical specifications
Nominal outer diameter of cable, mm 6.9
Crush resistance, N/cm 100
Maximum tensile strength, N 800
Min. cable bending radius, mm 69
Number of fibers 12
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning or equivalent compliant with specified standards
Min. fiber bending radius of fiber 3 mm (for 10 min.)
Cable weight, kg/km 51.6
Operating temperature, °C -40…+50
Installation temperature, °С -10...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Warranty period, years 2
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
OBR-U — cable type (versatile, for indoor and outdoor applications)
ng(A)-HF — cable sheath type (does not spread combustion in case of group installation)
12 — number of fibers
G.657А1 — optical fiber type
