Micro DOTs-P-16U-3 kN Fiber Optic Cable

Part number: 130905-01595 Copyed at buffer
Micro DOTs-P-16U-3 kN Fiber Optic Cable
Sale
Micro DOTs-P-16U-3 kN Fiber Optic Cable

About this item (PDF)

Ask a question (1)

The DOTs fiber optic cables are intended for suspension on poles of overhead communication lines, railroad contact and auto-blocking lines, power transmission lines, street lighting poles, power utility lines, between buildings and other structures. It can also be used for construction of fiber optic lines in cable ducts, pipes (including by air blowing installation method), cable blocks, tunnels, collectors, on bridges and overpasses.

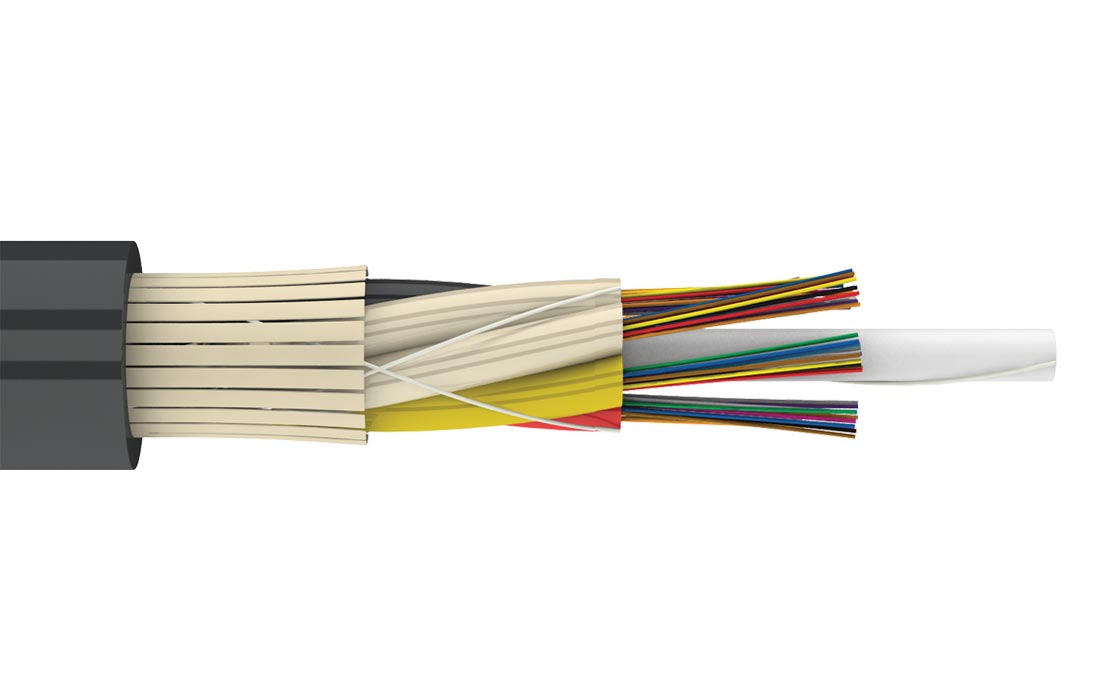

The cable consists of a number of buffer tubes stranded over a fiberglass (FRP) rod protected with a layer of reinforcing fiberglass threads covered by an outer jacket made of medium density polyethylene (MDPE). The free space inside the buffer tubes is filled with hydrophobic gel.

The DOTs cables produced by Inkab have the lightest and most cost-effective design among ADSS cables. The lightweight design differs from the standard design by the absence of an inner sheath and a hydrophobic gel in the cable core. Thanks to this, the design obtains its own advantages which are different from other designs.


Scroll to related products

Price
Sale price, with Vat Date 28.04.2024 68 400.00 RUB
Sale price, W/out Vat Date 28.04.2024 57 000.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 3
Crush resistance, N/cm 300
Number of fibers 16
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning
Nominal outer diameter of cable, mm 9.3
Min. cable bending radius, mm 139.5
Operating temperature, °C -60…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Cable weight, kg/km 70.3
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
DOTs — cable type
P — outer jacket material (medium density polyethylene (MDPE))
16 — number of fibers
U — fiber optic type (improved single-mode fiber, with expanded operating wavelength band with reduced attenuation, compliant with G.652D recommendations)
3 kN — maximum tensile strength
Video
