OK8C-08 G.652D-2.6 kN Fiber Optic Cable

Part number: 130905-01556 Copyed at buffer

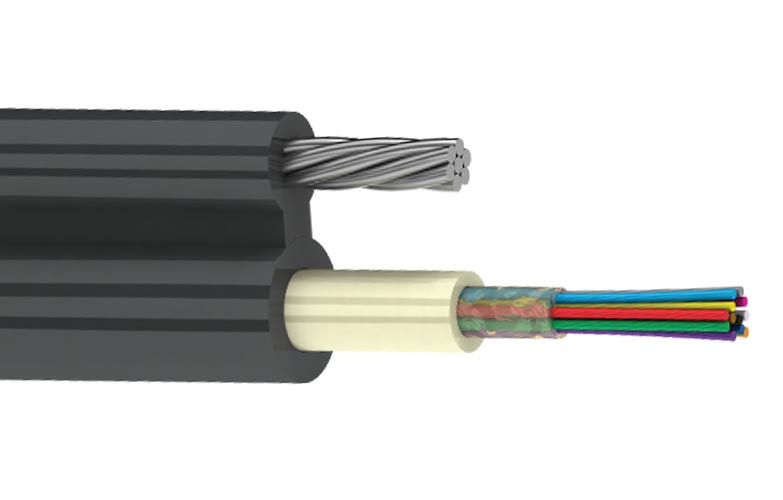

OK8C-08 G.652D-2.6 kN Fiber Optic Cable

About this item (PDF)

Ask a question (1)

The OK8C fiber optic cables are intended for suspension on poles of overhead communication lines, power transmission lines, street lighting poles, between and inside buildings and other structures; for installation in cable ducts, pipes, cable blocks, tunnels, collectors, on bridges and overpasses.

The cable central loose tube is protected by a polymer outer jacket. The cable has the external strength member made of a steel rope coated with a polymer jacket. The free space inside the loose tube is filled with a hydrophobic gel.

The OK8C cables are widely used as distribution and subscriber drop cables in the construction of FTTB and FTTN networks in urban and rural areas.


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 33 600.00 RUB
Retail price, W/out Vat Date 28.04.2024 28 000.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 2.6
Crush resistance, N/cm 300
Number of fibers 8
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning
Strength member sheath diameter, mm 3.8
Cable sheath diameter, mm 5.1
Max. cable dimensions, mm 8.9
Min. cable bending radius, mm 133.5
Operating temperature, °C -50…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Cable weight, kg/km 44.5
Kit content

The cable is delivered on plywood storage reels. Each construction length is supplied with a test report.

Marking
ОК8Ц — тип кабеля
08 — кол-во оптических волокон
xG.652D — тип оптических волокон (усовершенствованное одномодовое волокно, с расширенной полосой рабочих длин волн с пониженными затуханиями, соответствующее рекомендациям G.652D)
2,6кН — макс. допустимое растягивающее усилие
