OKD-2D-01хG.657.А1 1.4 kN Fiber Optic Cable

Part number: 130905-01839 Copyed at buffer
OKD-2D-01хG.657.А1 1.4 kN Fiber Optic Cable
OKD-2D-01хG.657.А1 1.4 kN Fiber Optic Cable

About this item (PDF)

Ask a question (1)

The OKD-2D fiber optic cable is used for suspension (if there are high requirements for resistance to external electromagnetic impact) on poles of overhead communication lines, railroad contact and auto-blocking lines, power transmission lines with a maximum potential value of the electric field up to 12 kV and between buildings and other structures.

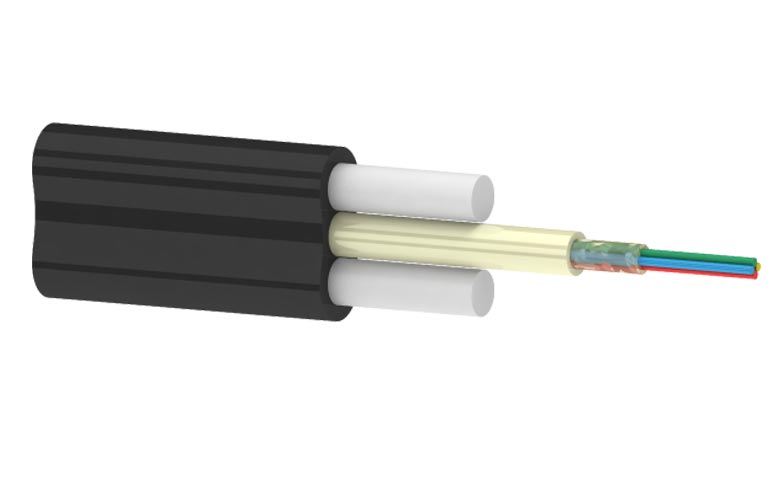

The cable consists of a loose tube covered by an outer jacket made of medium density polyethylene (MDPE). Two fiberglass (FRP) rods are embedded in the cable sheath and used as strength members. The free space inside the loose tube is filled with a hydrophobic gel.

The OKD-2D cable is widely used as distribution cable in FTTB networks and as subscriber drop cable for construction of FTTN networks in rural areas.


Scroll to related products

Price
Retail price, with Vat Date 27.04.2024 18 600.00 RUB
Retail price, W/out Vat Date 27.04.2024 15 500.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 1.4
Crush resistance, N/cm 1000
Number of fibers 1
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning
Min. cable bending radius, mm 24
Operating temperature, °C -40…+70
Installation temperature, °С -10...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Dimensions, mm 2.4 х 5.6
Cable weight, kg/km 16.3
Kit content

The cable is delivered on plywood storage reels. Each construction length is supplied with a test report.

Marking
OKD — cable type
2D — number of dielectric strength members
01 — number of fibers
G.657.A1 — single-mode bend insensitive fiber, with expanded operating wavelength band and reduced attenuation and increased resistance to bending
1.4 kN — maximum tensile strength
