OKS-32хG.652D-7 kN Fiber Optic Cable

Part number: 130905-03421 Copyed at buffer

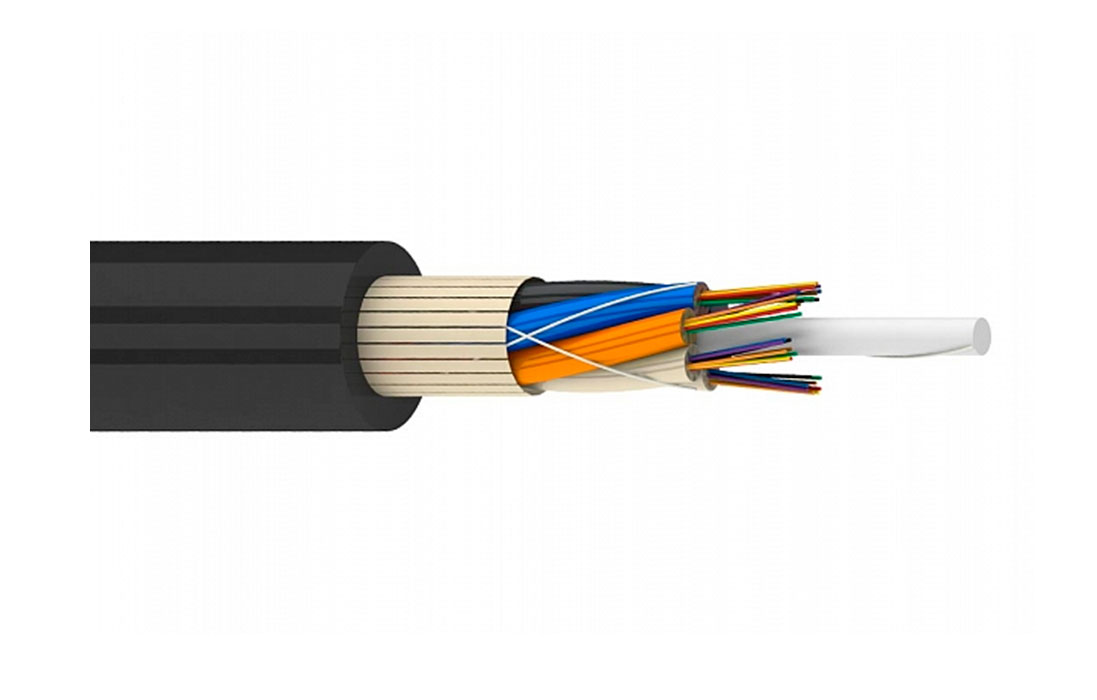

OKS-32хG.652D-7 kN Fiber Optic Cable

About this item (PDF)

Ask a question (1)

The OKS fiber optic cables are intended for suspension on poles of communication lines, power transmission lines, street lighting poles, railroad contact and auto-blocking lines, between buildings and other structures. It can also be used for installation in pipes (including by air blowing installation method), cable blocks, tunnels, collectors, on bridges and overpasses; the cable is intended for indoor and outdoor applications. The specified constant cable tensile strength is used to limit the maximum possible mechanical effect on the poles which derives from the cable suspension.

The cable consists of a number of buffer tubes stranded in one layer over a fiberglass (FRP) rod protected with an inner polyethylene sheath and a layer of reinforcing fiberglass threads covered by an outer jacket made of medium density polyethylene (MDPE). The free space inside the buffer tubes and the cable core is filled with a hydrophobic gel.


Scroll to related products

Price
Retail price, with Vat Date 07.05.2024 76 920.00 RUB
Retail price, W/out Vat Date 07.05.2024 64 100.00 RUB
Item parameters
Technical specifications
Механическая прочность на разрыв, кН 7
Допустимая раздавливающая нагрузка, Н/см 300
Количество волокон 32
Тип волокон G.652.D+G.657.A1
Производитель ОВ Corning или аналог с соответствием указанным стандартам
Номинальный наружный диаметр ОК, мм 8,8
Масса ОК, кг/км 61,3
Минимальный радиус изгиба ОК, мм 132
Рабочая температура, °С -60…+70
Температура монтажа, °С -30…+50
Транспортировка и хранение, °С -60…+70
Срок службы, лет 25
Kit content

Кабель поставляется на деревянных барабанах ГОСТ5151-79. К каждой строительной длине прилагается паспорт.
