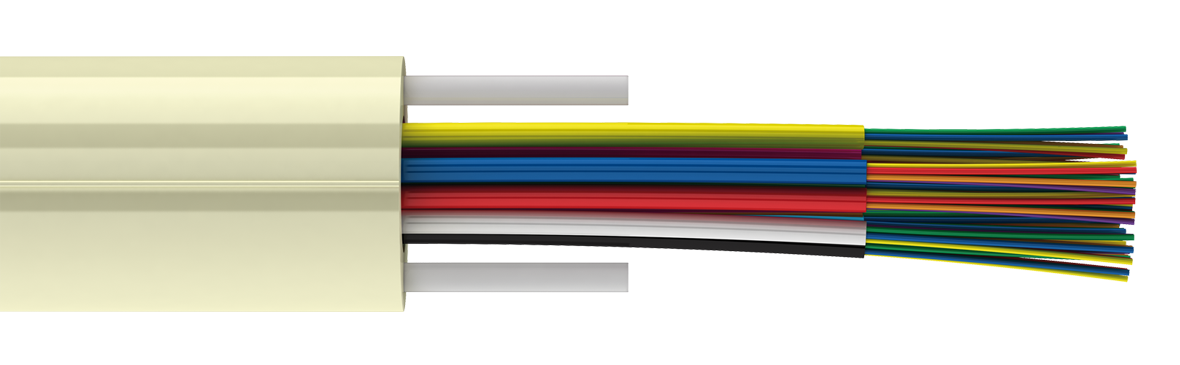

CCD OK-NRS ng(A)-HF 24x4xG657A Distribution Fiber Optic Cable

Part number: 130905-00324 Copyed at buffer
CCD OK-NRS ng(A)-HF 24x4xG657A Distribution Fiber Optic Cable
CCD OK-NRS ng(A)-HF 24x4xG657A Distribution Fiber Optic Cable

About this item (PDF)

Ask a question (2)

The CCD OK-NRS fiber optic cables are specially designed for construction fiber-to-the-home (FTTH) broadband access networks in apartment buildings (urban areas) or large business centers.

The cable contains a bundle of single- or multi-fiber soft micro-module tubes without any gel inside. The cable outer jacket is made of halogen-free flame retardant polymer (LSZH) composition with low smoke emission. Two fiberglass rods are embedded in the cable jacket diametrically opposite to each other. They prevent axial torsion of the cable, and also serve as strength members.

An opening in the cable outer jacket can be cut with a special stripping tool to provide free access to the core elements. The micro-module can be selected and pulled out of the cable up to 6 m for taping and splicing at the floor. Due to this, riser cables can be installed during construction of the network in existing or newly created risers without the need for excess cable loops and installation of floor distribution boxes. Distribution boxes can be installed later on the floors where needed for subscribers connections.


Scroll to related products

Price
Retail price, with Vat Date 19.04.2024 390 496.39 RUB
Retail price, W/out Vat Date 19.04.2024 325 413.66 RUB
Item parameters
Technical specifications
Maximum tensile strength, N 400
Crush resistance, N/cm 80
Number of fibers 96
Fiber type G.657.A1
Fiber manufacturer Corning
Nominal outer diameter of cable, mm 13.5
Cable weight, kg/km 135
Min. cable bending radius, mm 135
Operating temperature range, °C -30...+50
Installation temperature, °С -10...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
OK — fiber optic cable
NRS — cable type
ng(A) — flame retardant, low smoke emission
24 — number of micro-modules
4 — number of fibers in the micro-module tube
G657A — fiber type
CCD — manufactured by Sviazstroydetal
