TOL-N-08U-2.7 kN Fiber Optic Cable

Part number: 130905-00359 Copyed at buffer

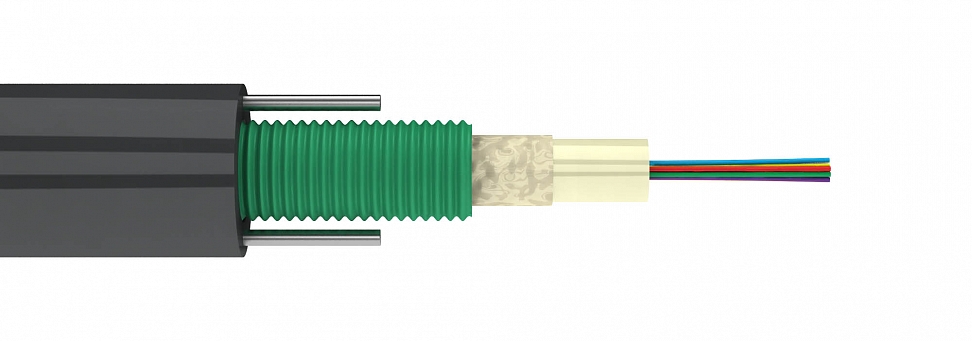

TOL-N-08U-2.7 kN Fiber Optic Cable внешний вид 1
TOL-N-08U-2.7 kN Fiber Optic Cable внешний вид 2
TOL-N-08U-2.7 kN Fiber Optic Cable внешний вид 1
TOL-N-08U-2.7 kN Fiber Optic Cable внешний вид 2

About this item (PDF)

Ask a question (1)

The TOL fiber optic cable is intended for indoor and outdoor applications for installation in cable ducts, pipes, trays, cable blocks, tunnels, collectors, on bridges and overhead trays, in the ground, between buildings and other structures.

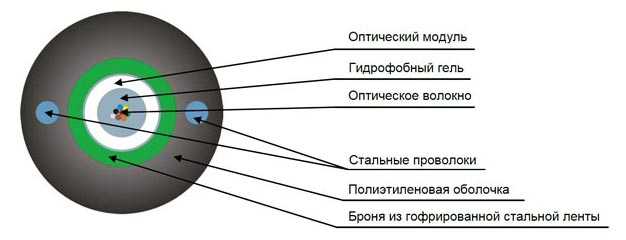

The cable consists of a loose tube armored with corrugated steel tape and an outer jacket made of medium density polyethylene (MDPE) with incorporated strength members made of steel wires. The free space in the loose tube and under the corrugated tape is filled with hydrophobic gel.

The TOL cables have the lightest and most economical design among cables armored with steel tape.

N means that the cable sheath is made of a polymeric material that does not spread combustion in case of single installation (Class PRGO1, GOST 53315-2009).


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 82 800.00 RUB
Retail price, W/out Vat Date 28.04.2024 69 000.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 2.7
Crush resistance, kN/cm 0.5
Number of fibers 8
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning or equivalent compliant with specified standards
Min. fiber bending radius min. 3 mm (for 10 min.)
Cable diameter, mm 7.3
Cable weight, kg/km 70.5
Cable bending radius, mm 124.5
Operating temperature, °C -50…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Min. cable diameter bending radius, mm 20
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
ТОЛ — тип кабеля
Н — материал наружной оболочки - полиэтилен не распространяющий горение при одиночной прокладке (Класс ПРГО1)
8 — кол-во оптических волокон
У — тип оптических волокон (усовершенствованное одномодовое волокно, с расширенной полосой рабочих длин волн с пониженными затуханиями, соответствующее рекомендациям G.652D)
2,7кН — макс. допустимая растягивающая нагрузка
