TOS-N-24U-7 kN Fiber Optic Cable

Part number: 130905-01869 Copyed at buffer

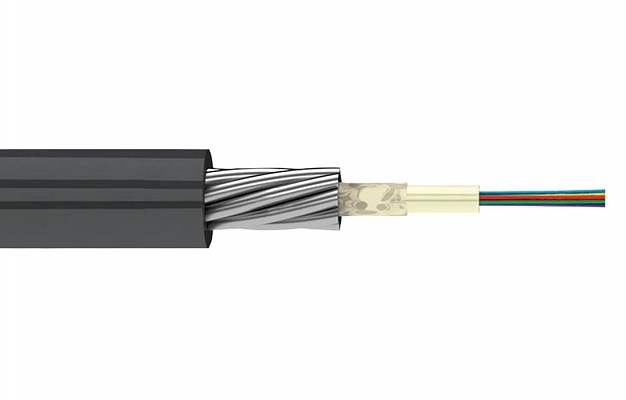

TOS-N-24U-7 kN Fiber Optic Cable внешний вид 1

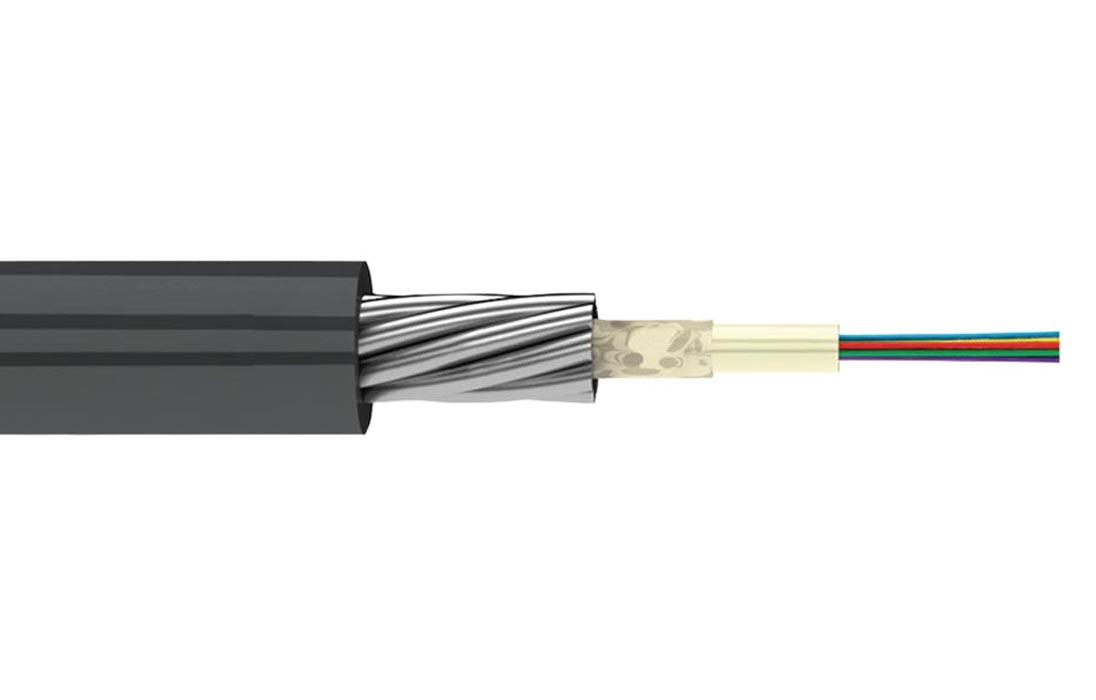

TOS-N-24U-7 kN Fiber Optic Cable внешний вид 2
TOS-N-24U-7 kN Fiber Optic Cable внешний вид 1
TOS-N-24U-7 kN Fiber Optic Cable внешний вид 2

About this item (PDF)

Ask a question (1)

The TOS fiber optic cable is intended for outdoor applications for installation in soils of any category, cable ducts, pipes, cable blocks, tunnels, collectors, on bridges and hanging cable trays and for indoor applications if there are especially high requirements for mechanical stability.

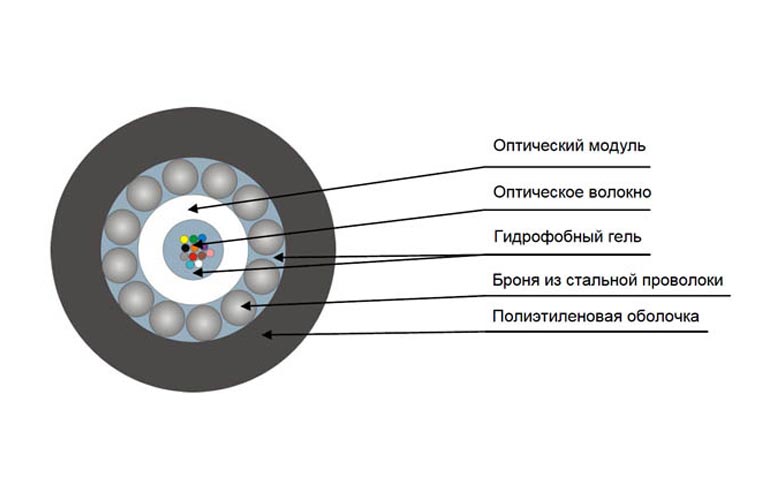

The cable consists of a central loose tube protected by the armor made of galvanized steel wires and the outer cable jacket made of medium density polyethylene (MDPE). The free space inside the loose tube and between the steel wires is filled with a hydrophobic gel.

The TOS cables have the lightest and most economical design among cables armored with steel wires.

N means that the cable sheath is made of a polymeric material that does not spread combustion in case of single installation (Class PRGO1, GOST 53315-2009).


Scroll to related products

Price
Retail price, with Vat Date 27.04.2024 119 880.00 RUB
Retail price, W/out Vat Date 27.04.2024 99 900.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 7
Crush resistance, N/cm 700
Number of fibers 24
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning
Nominal outer diameter of cable, mm 8.3
Min. cable bending radius, mm 145.5
Operating temperature, °C -60…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -50...+50
Service life, years 25
Cable weight, kg/km 123.9
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
ТОС — тип кабеля
Н — материал наружной оболочки (полиэтилен средней плотности)
24 — кол-во оптических волокон
У — тип оптических волокон (усовершенствованное одномодовое волокно, с расширенной полосой рабочих длин волн с пониженными затуханиями, соответствующее рекомендациям G.652D)
7кН — макс. допустимая растягивающая нагрузка
