TPOm-P-08U-4 kN Fiber Optic Cable

Part number: 130905-00064 Copyed at buffer

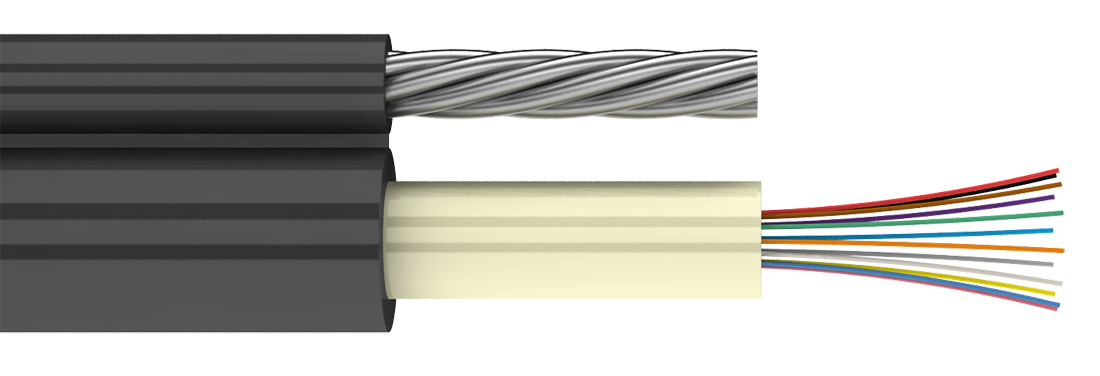

TPOm-P-08U-4 kN Fiber Optic Cable внешний вид 1
TPOm-P-08U-4 kN Fiber Optic Cable внешний вид 2
TPOm-P-08U-4 kN Fiber Optic Cable внешний вид 1
TPOm-P-08U-4 kN Fiber Optic Cable внешний вид 2

About this item (PDF)

Ask a question (1)

The TPOm fiber optic cables are intended for suspension on poles of overhead communication lines, railroad contact and auto-blocking lines, power transmission lines, street lighting poles, power utility lines, between buildings and other structures; for installation in cable ducts, pipes, cable blocks, tunnels, collectors, on bridges and overpasses.

The cable central loose tube is protected by a polymer outer jacket. The cable has the external strength member made of a steel rope coated with a polymer jacket.

The TPOm cable is manufactured under TU 3587-002-88083123-2010.


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 70 800.00 RUB
Retail price, W/out Vat Date 28.04.2024 59 000.00 RUB
Item parameters
Technical specifications
Maximum tensile strength, kN 4
Crush resistance, kN/cm 0.3
Number of fibers 8
Fiber type G.652.D+G.657.A1
Fiber manufacturer Corning
Min. fiber bending radius min. 3 mm (for 10 min.)
Strength member sheath diameter, mm 5.0
Cable sheath diameter, mm 6.3
Equivalent cable diameter, mm 8.2
Max. cable dimensions, mm 12.3
Cable weight, kg/km 71.4
Strength member elasticity modulus, kN/mm² 125
Operating temperature, °C -60…+70
Installation temperature, °С -30...+50
Storage and transportation temperature, °C -60...+70
Service life, years 25
Warranty period, years 2
Kit content

The cable is delivered on wooden storage reels according to GOST5151-79. Each construction length is supplied with a test report.

Marking
TPOm — cable type
P — outer jacket material (medium density polyethylene (MDPE))
08 — number of fibers
U — fiber optic type (improved single-mode fiber, with expanded operating wavelength band with reduced attenuation, compliant with G.652D recommendations)
4 kN — maximum tensile strength
