Moxa EDS-208A-MM-SC-T Switch

Part number: 121007-00312 Copyed at buffer

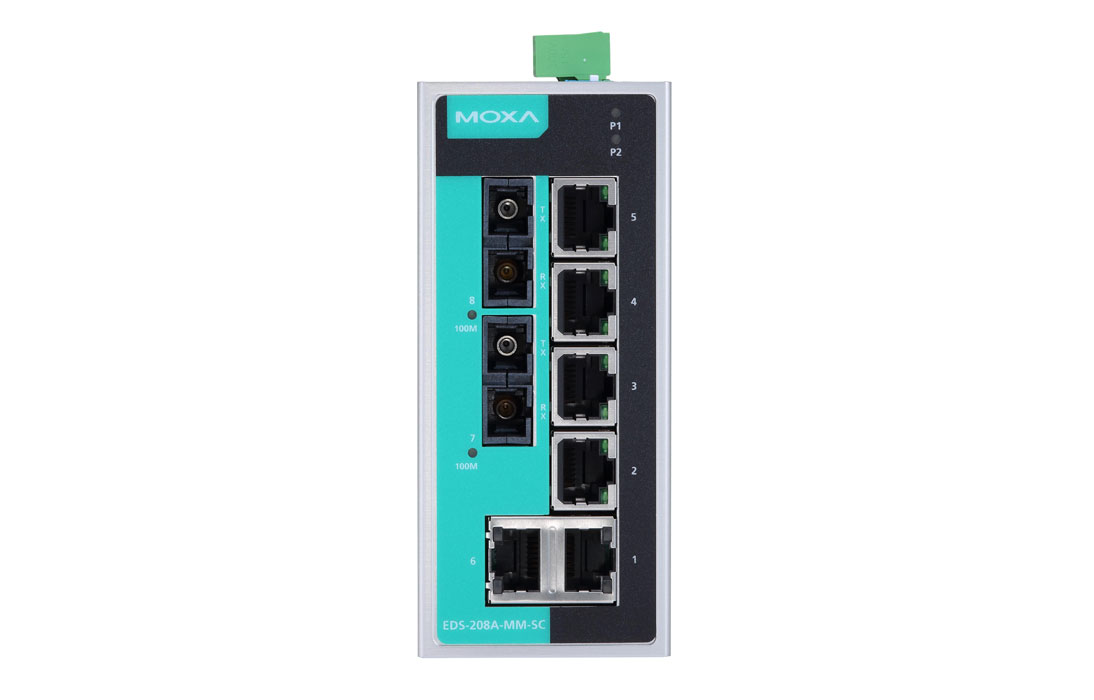

Moxa EDS-208A-MM-SC-T Switch внешний вид 1

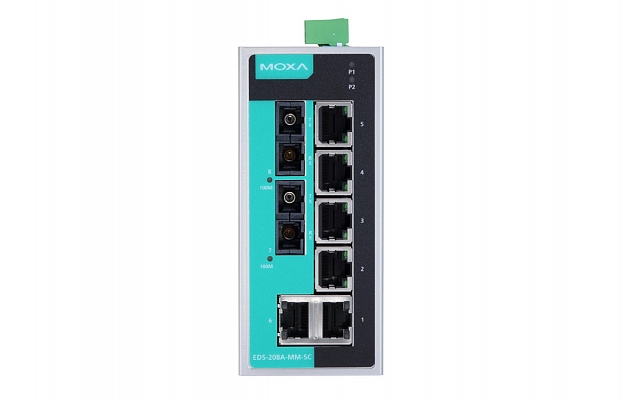

Moxa EDS-208A-MM-SC-T Switch внешний вид 2

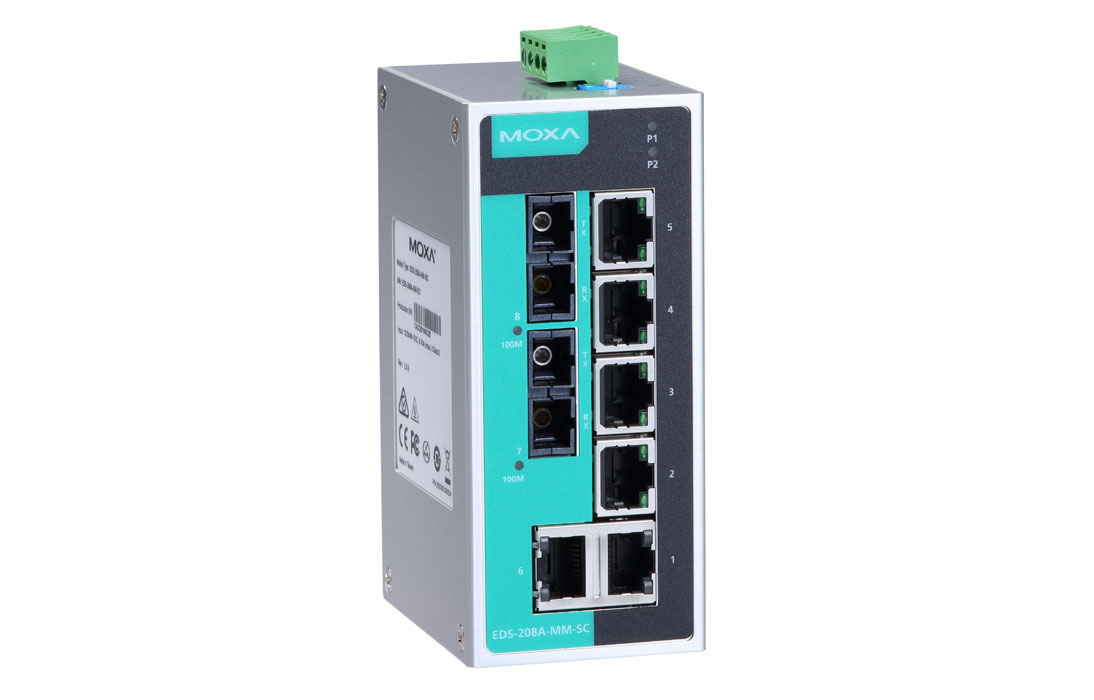

Moxa EDS-208A-MM-SC-T Switch внешний вид 1
Moxa EDS-208A-MM-SC-T Switch внешний вид 2

About this item (PDF)

Ask a question

It is an unmanaged DIN-rail mount switch suitable for operation in extended operating temperature range. The switch is enclosed in an IP30-rated durable metal housing providing great versatility for use in a variety of industries.

The switch has six 10/100 Mbps RJ-45 copper ports and two SC (multi-mode fiber) 100 Mbps optical ports, supporting IEEE 802.3 and IEEE 802.3u/x standards, with full/half-duplex MDI/MDI-X auto-recognition. The switch can be installed on a DIN rail as well as in distribution boxes. It is equipped with 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be used simultaneously with different DC power sources.

The switch has been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.


Only by query

If you are interested in this product, contact the responsible manager to clarify the price and delivery dates.

Руководитель группы СиЭС
Неняев Евгений Александрович
Phone: +7 (495) 786-34-34, доб. 420
E-Mail: nenyaev@ssd.ru
Send request
Delivery time
By query
Item parameters
Technical specifications
Total number of ports 8
Switch layer L2
Connector type 6 x RJ45 10/100 Mbps, 2 x SC (multi-mode fiber) 100 Mbps
Fiber optic cable type, microns 50/125, 62.5/125
Fiber optic transmission range, km up to 4
Mac address table size 2000
Body material Metal
Operating voltage 12/24/48 VDC (9.6 ~ 60 VDC)
Input current 0.15 A @ 24 VDC
Operating temperature, °C -40...+75
Storage temperature range, °C -40 ... +85
Dimensions, mm 50x115x70
Weight, g 280
Kit content
Switch 1 pc.
Quick start guide 1 pc.
Logistic data
Volume, m3: 0,000403
Weight, kg: 0,38
