Moxa EDS-P510A-8PoE-2GTXSFP-T Switch

Part number: 121007-00331 Copyed at buffer

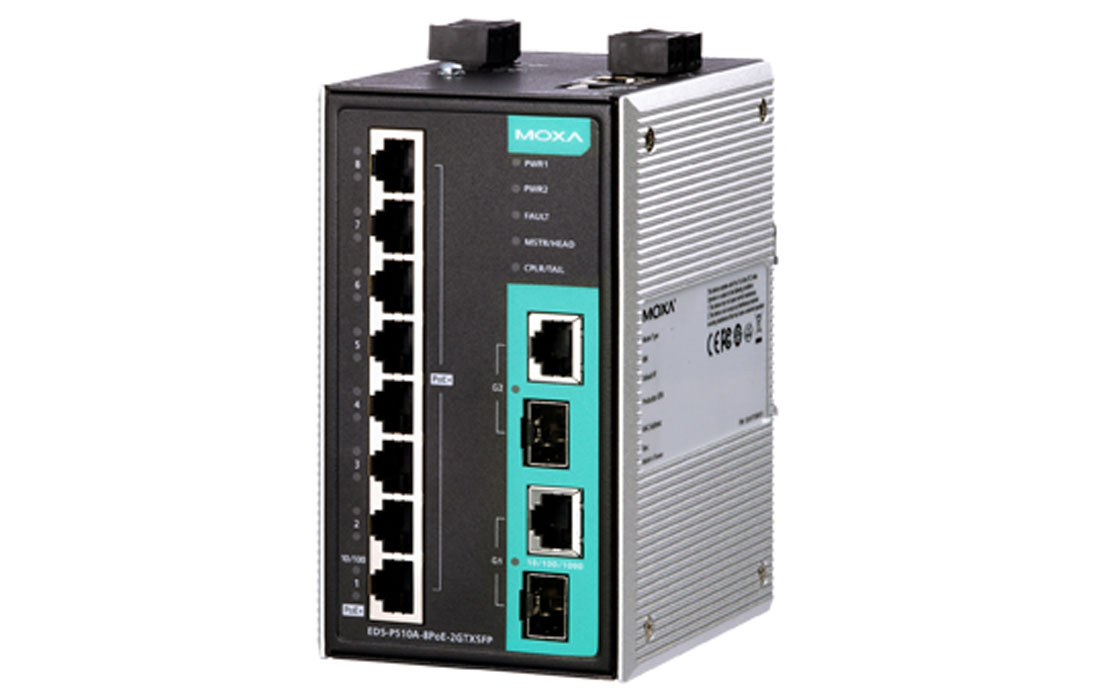

Moxa EDS-P510A-8PoE-2GTXSFP-T Switch внешний вид 1

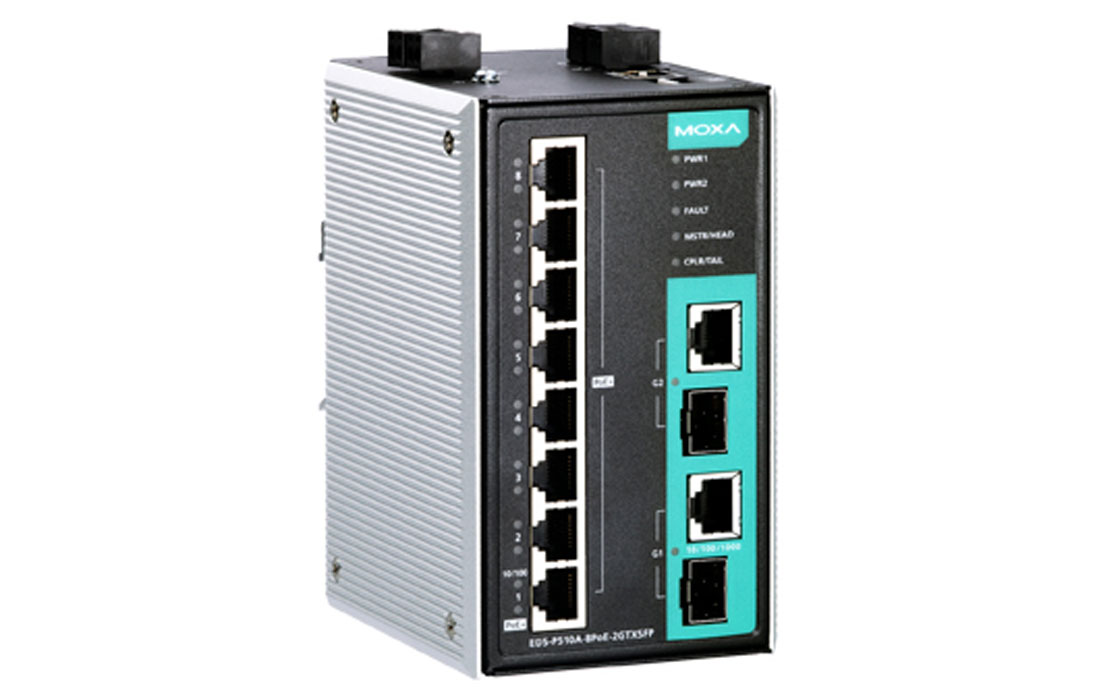

Moxa EDS-P510A-8PoE-2GTXSFP-T Switch внешний вид 2

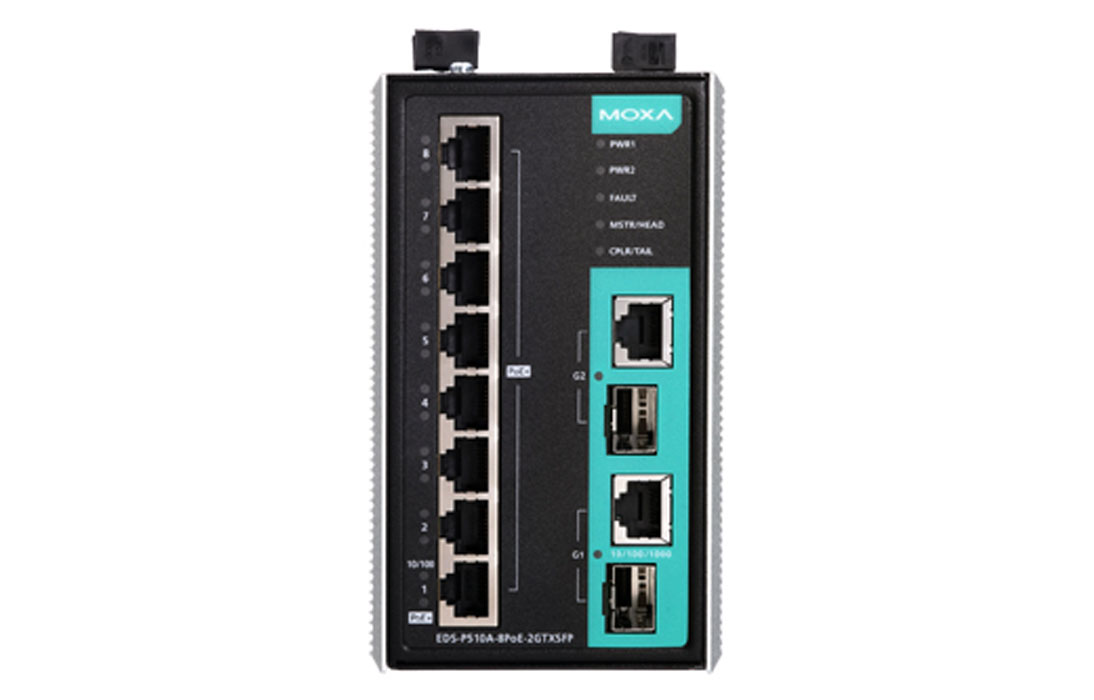

Moxa EDS-P510A-8PoE-2GTXSFP-T Switch внешний вид 3
Moxa EDS-P510A-8PoE-2GTXSFP-T Switch внешний вид 1
Moxa EDS-P510A-8PoE-2GTXSFP-T Switch внешний вид 2
Moxa EDS-P510A-8PoE-2GTXSFP-T Switch внешний вид 3

About this item (PDF)

Ask a question

It is a managed DIN-rail mount switch suitable for operation in extended operating temperature range and supporting POE. The switch is enclosed in an IP30-rated metal housing providing great versatility for use in a variety of industries (Class I Div. 2, ATEX Zone 2 standards).

There are eight 10/100 Mbps RJ-45 copper ports and two 100/1000 Mbps Combo Gigabit ports (SFP) on the casing. It supports a lot of advanced control features such as Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP. The ready-to-use Turbo Ring feature can be easily configured using the web-based control interface or DIP switches located on the switch top panel.

The switch is equipped with a discrete input and built-in relay warning function that alerts network engineers when power failures or port breaks occur.


Only by query

If you are interested in this product, contact the responsible manager to clarify the price and delivery dates.

Руководитель группы СиЭС
Неняев Евгений Александрович
Phone: +7 (495) 786-34-34, доб. 420
E-Mail: nenyaev@ssd.ru
Send request
Delivery time
By query
Item parameters
Technical specifications
Total number of ports: 10
Switch layer: L2
Connector type: 8 х RJ45 POE+ Ethernet 10/100 Mbps, 2 х Combo Gigabit Ethernet 10/100/1000 Mbps (twisted pair + SFP)
Mac address table size: 8000
Body material: Metal
Operating voltage: 48 VDC (44 ~ 57 VDC), PoE+ > 50 VDC (recommended)
Input current: 5.36 A @ 48 VDC
Operating temperature, °C: -40...+75
Storage temperature range, °C: -40 ... +85
Dimensions, mm: 79.2x135x105
Weight, kg: 1.03
Kit content
Switch: 1
Quick start guide: 1 pc.
Logistic data
Volume, m3: 0,001123
Weight, kg: 1,23
