CCD ES-1500 Suspension Bracket

Part number: 130801-02689 Copyed at buffer

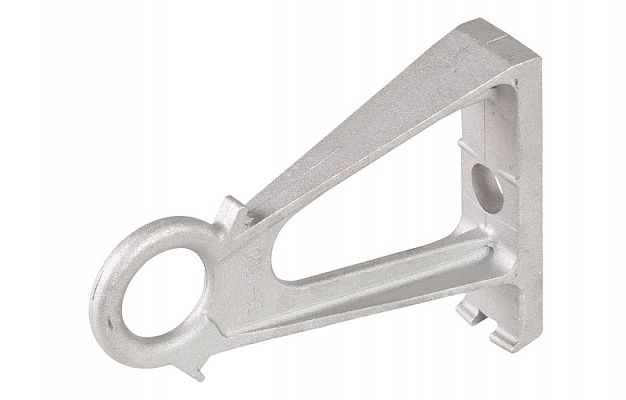

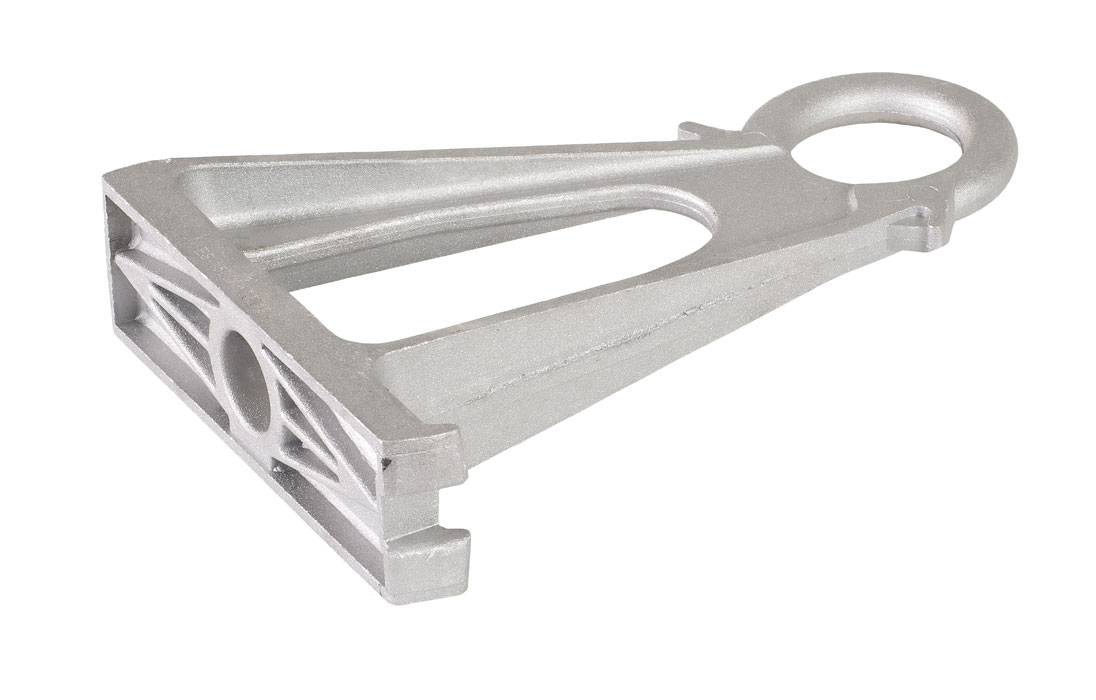

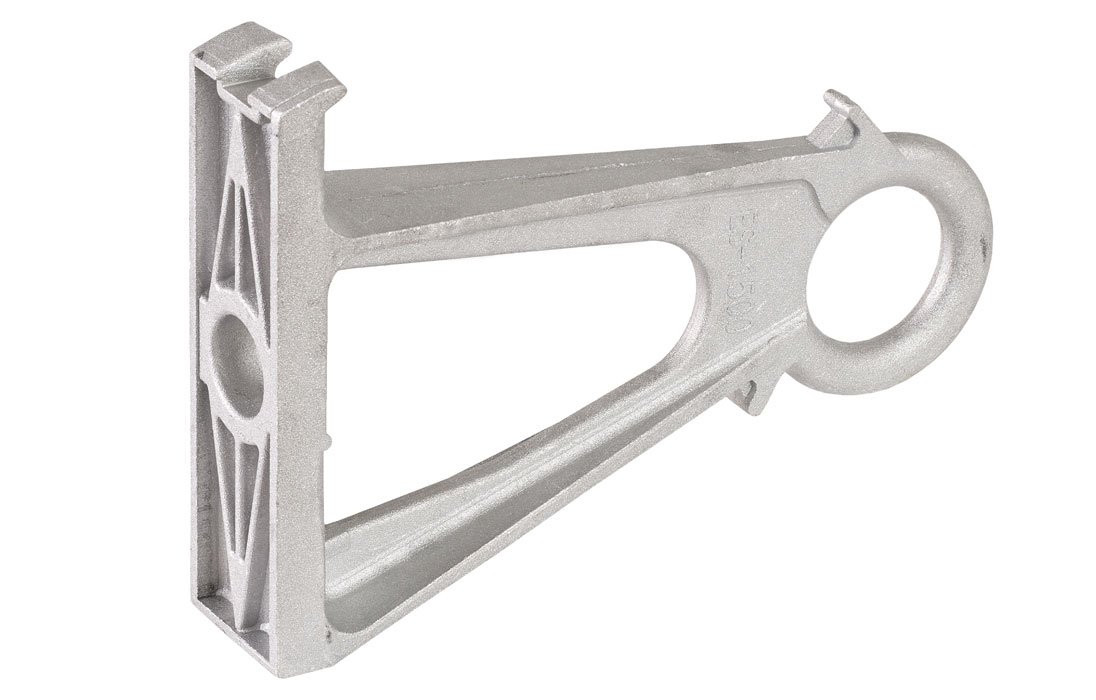

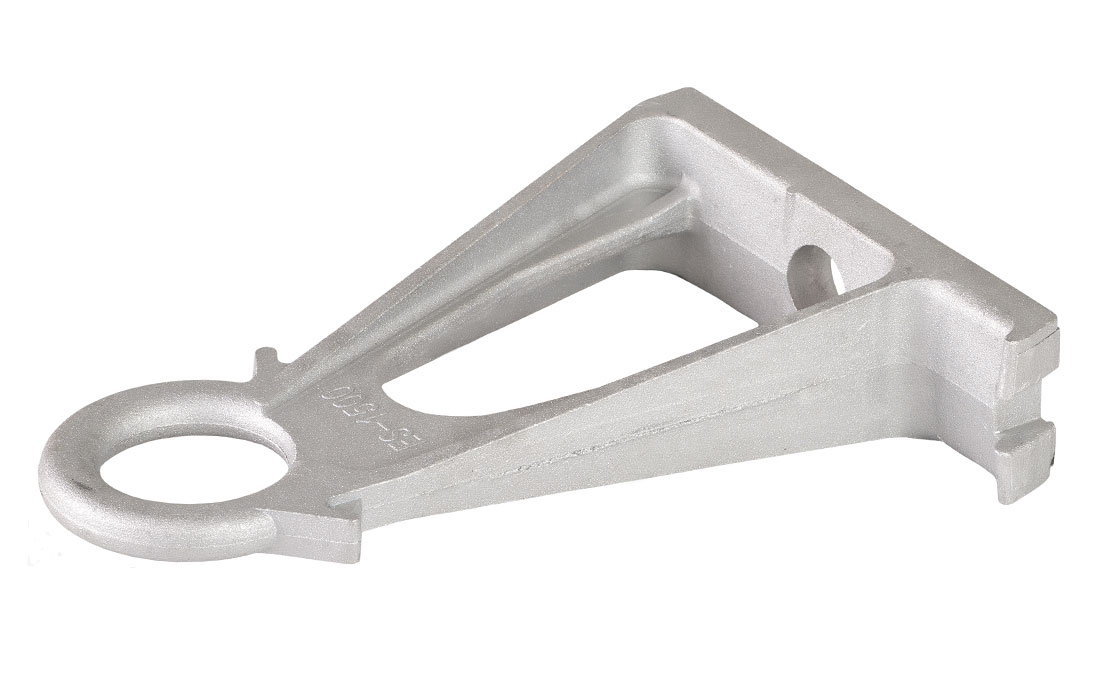

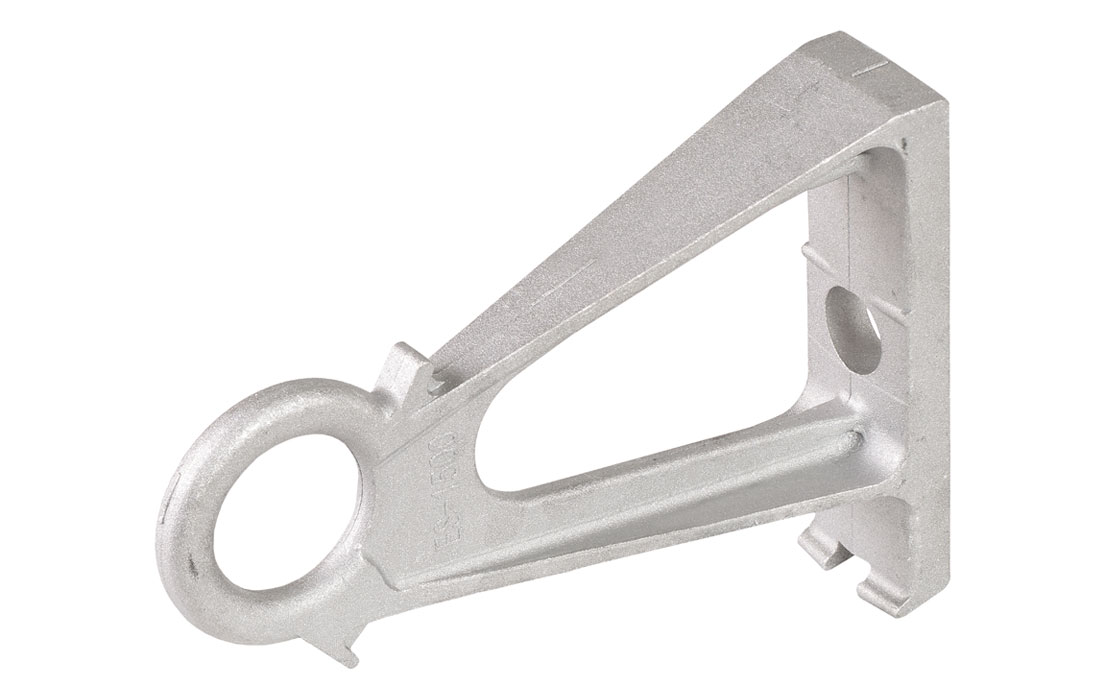

CCD ES-1500 Suspension Bracket внешний вид 1
CCD ES-1500 Suspension Bracket внешний вид 2
CCD ES-1500 Suspension Bracket внешний вид 3
CCD ES-1500 Suspension Bracket внешний вид 4
CCD ES-1500 Suspension Bracket внешний вид 1
CCD ES-1500 Suspension Bracket внешний вид 2
CCD ES-1500 Suspension Bracket внешний вид 3
CCD ES-1500 Suspension Bracket внешний вид 4

About this item (PDF)

Ask a question

The suspension bracket is designed for fastening the clamps to suspend «eight»-shape ADSS cables with the external strength member on intermediate poles of power transmission and communication lines, lines of city electrical facilities (street lighting, ground electric transport), buildings and other structure elements.

Thanks to its design, the bracket can be fastened by two steel bands with buckles to round or square poles or with a 16 mm diameter bolt to the wall.


Price
Retail price, with Vat Date 03.05.2024 189.00 RUB
Retail price, W/out Vat Date 03.05.2024 157.50 RUB
Item parameters
Technical specifications
Breaking load, kN 8
Climatic category (GOST 15150) UHL-1
Body dimensions, mm 165х120х33
Weight, kg 0.17
Kit content
CCD ES-1500 Suspension Bracket 1 pc.
Logistic data
Volume, m3: 0,000480
Weight, kg: 0,208
