CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box

Part number: 130411-00366 Copyed at buffer

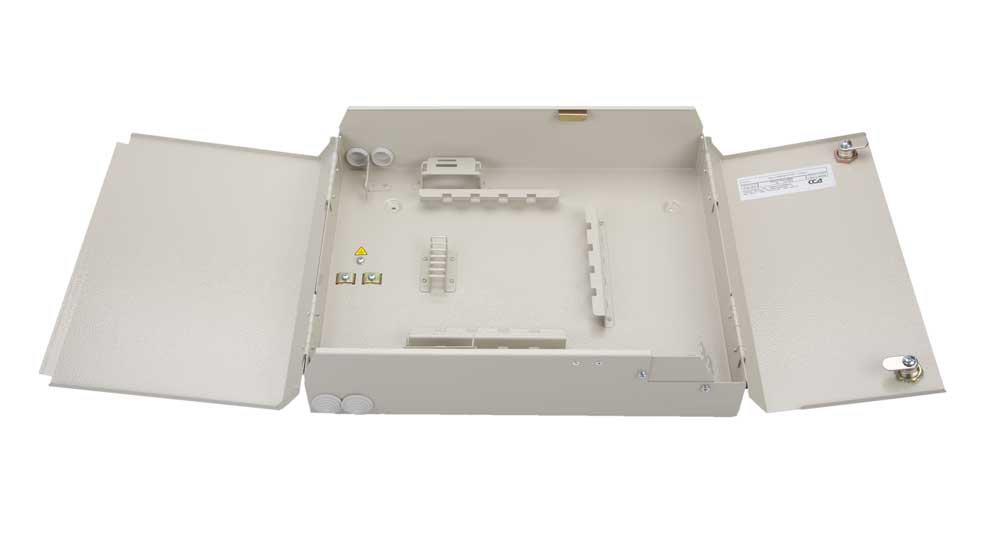

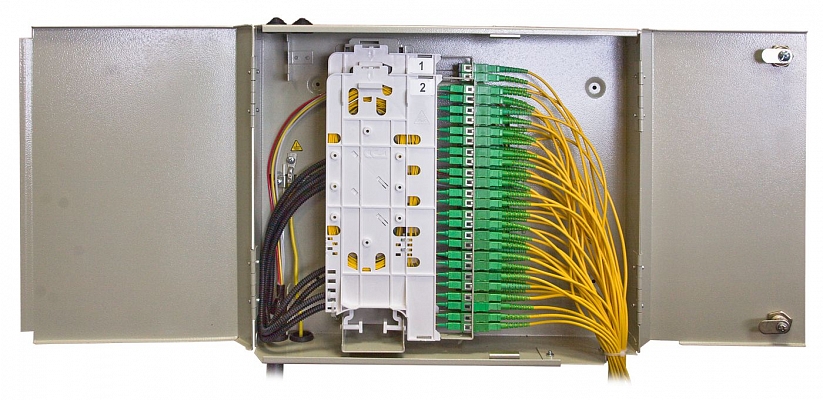

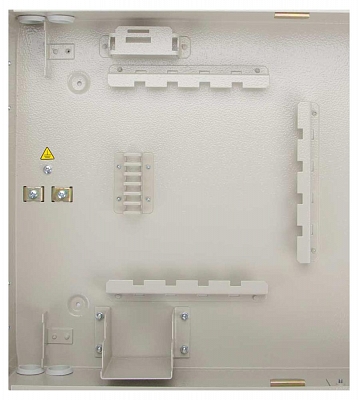

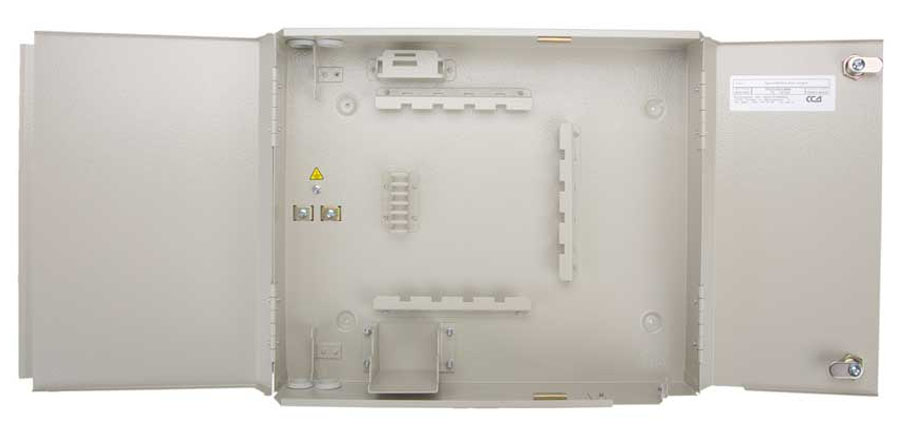

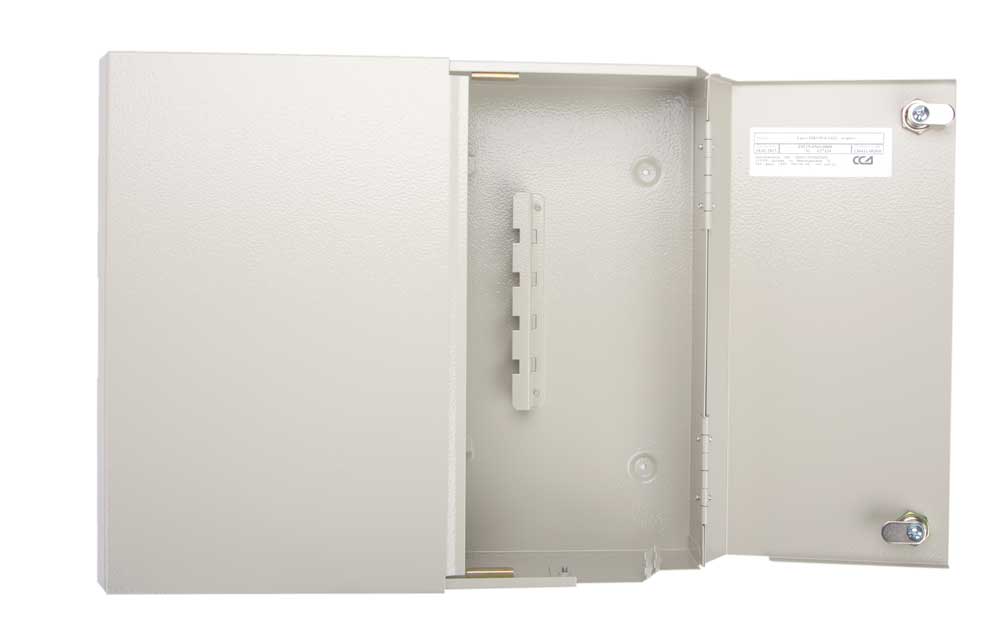

CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 1
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 2
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 3
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 4
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 5
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 6
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 7
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 8
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 1
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 2
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 3
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 4
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 5
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 6
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 7
CCD ShKON-K-64(2)-64SC-64SC/APC-64SC/APC Wall Mount Distribution Box внешний вид 8

About this item (PDF)

Ask a question

The ShKON-K wall mount distribution box is used in offices, control and communication rooms or other operated facilities.

The ShKON-K box has compact size, easy for installation and provides convenient fiber management. Different versions of the distribution box allow choosing the optimal size and capacity for terminating cables with a total capacity from 32 to 288 fibers.

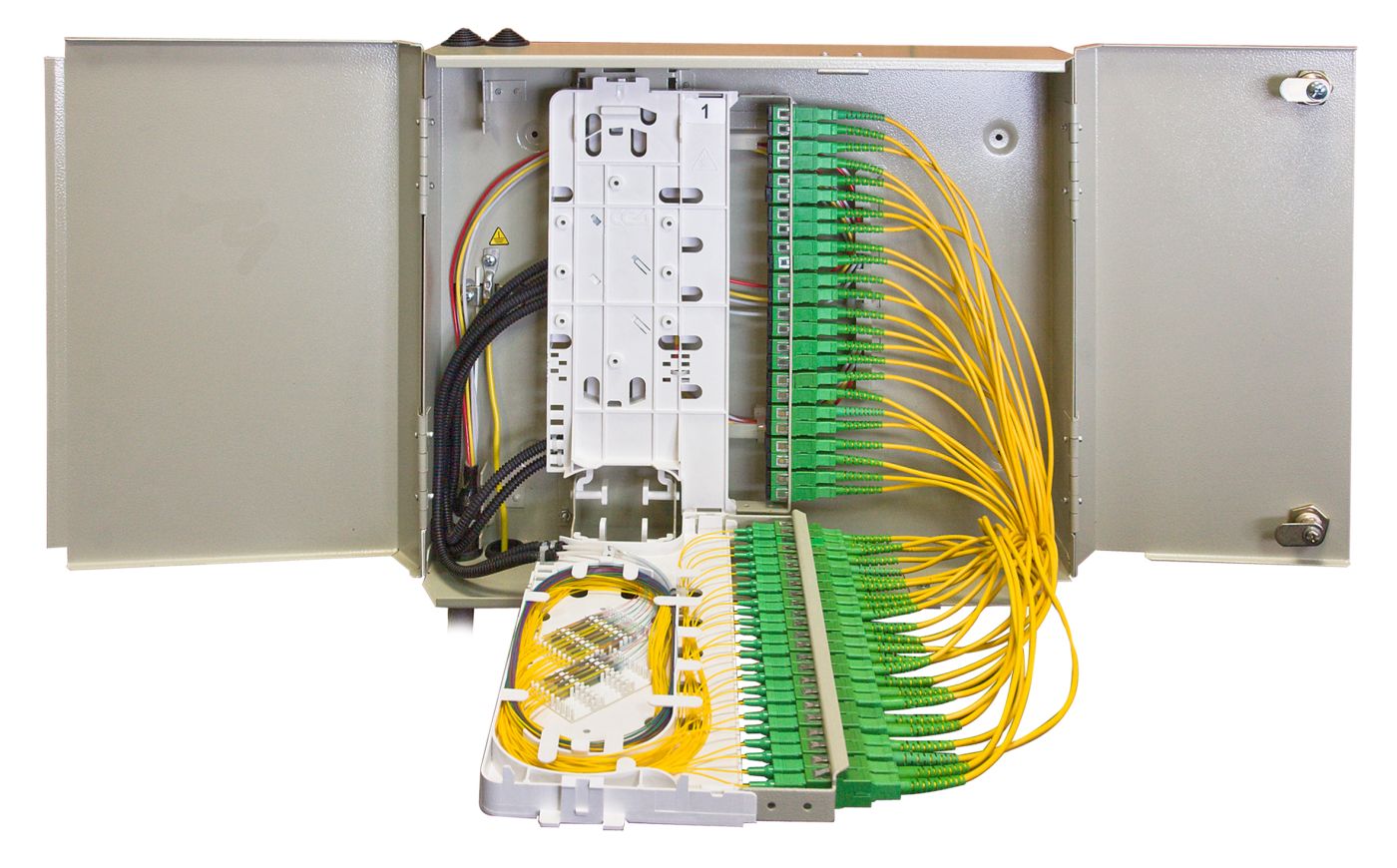

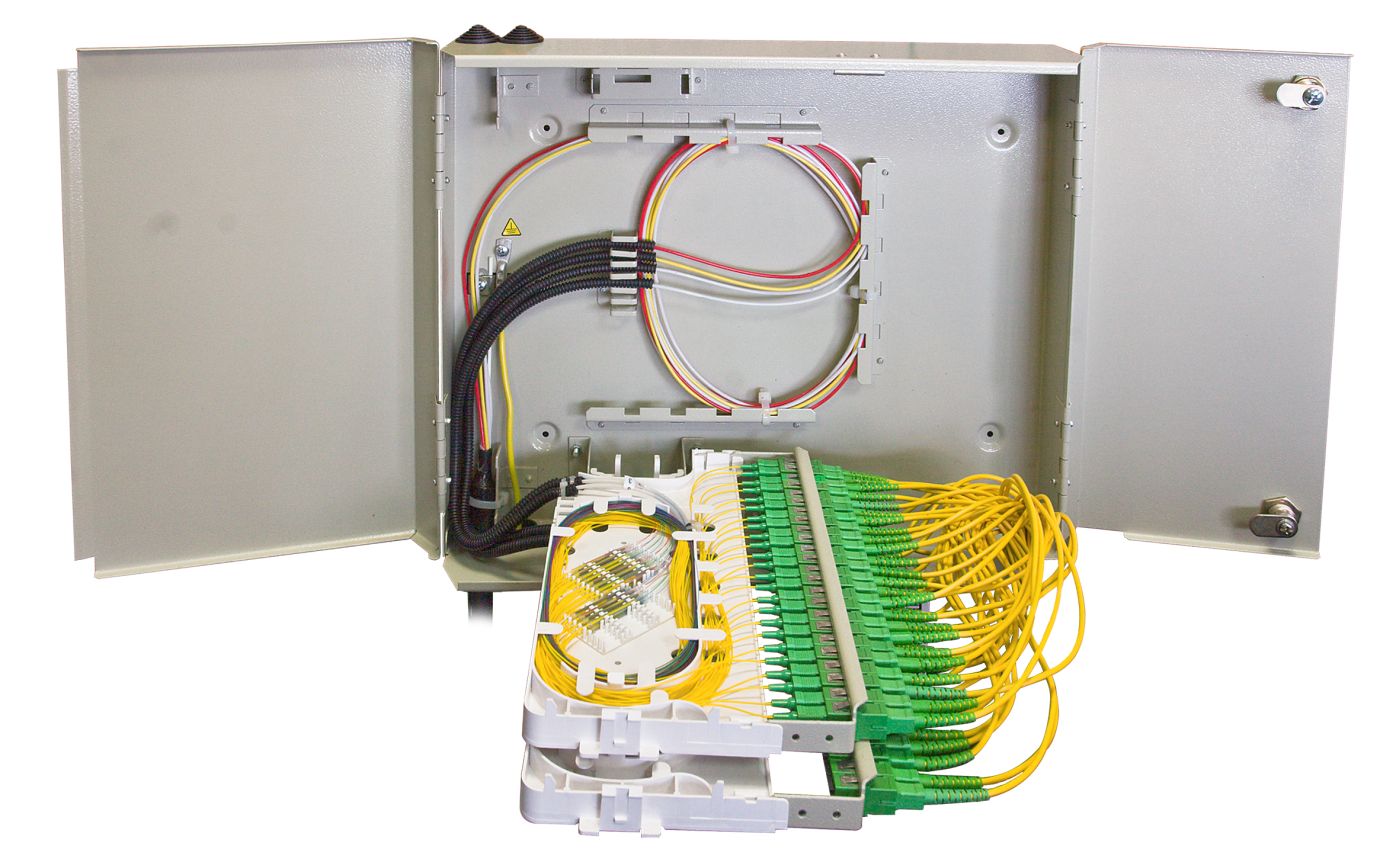

In the current solution, fibers are spliced and terminated in folding cross modules combined into a cable block.

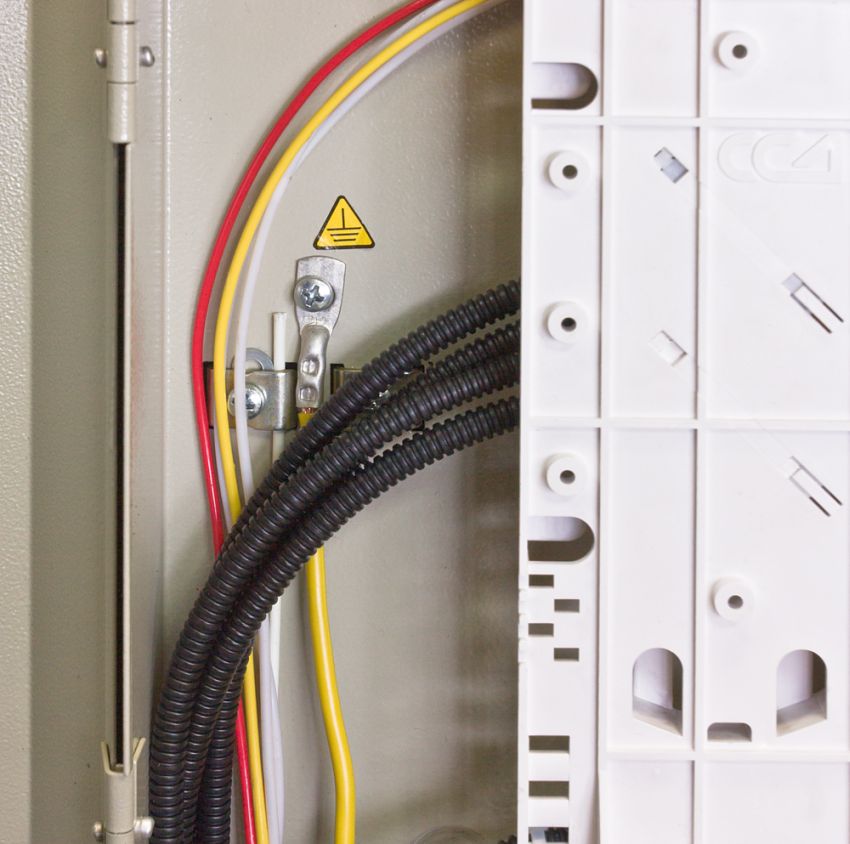

Cables are prepared and secured in the cable entry compartment. Then the fibers in transition tubes are routed to the splicing section into the corresponding module.

The ShKON-K-64(2)-64SC/APC wall mount distribution box contains two cross modules with a total capacity of up to 64 fibers.


Price
Retail price, with Vat Date 29.04.2024 31 028.32 RUB
Retail price, W/out Vat Date 29.04.2024 25 856.93 RUB
Item parameters
Technical specifications
Number of optical ports 64
Type of ports SC/APC
Type of locks Cylinder lock
Number of cross modules 2
Max. number of inserted cables, pcs. 4
Max. cable diameter, mm 20
Dimensions, mm 402х347х102
Weight, kg 4.2
Kit content
Distribution box with door and locks
 1 pc.
Cable block bracket
 1 pc.
Blind rubber grommet
 4 pcs.
Installation kit
 1 pc.
К-32SC-32SC/APC-32SC/APC module
 2 pcs.
Logistic data
Volume, m3: 0,018309
Weight, kg: 5,7
Marking
ШКОН — шкаф кроссовый оптический настенный
К-64 — серия кросса
(2) — допустимое количество кроссовых модулей
64-SC — количество портов и вид отверстий
64-SC/APC — количество и тип адаптеров (розеток)
64SC/APC — количество и тип пигтейлов
