CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel

Part number: 130304-00904 Copyed at buffer

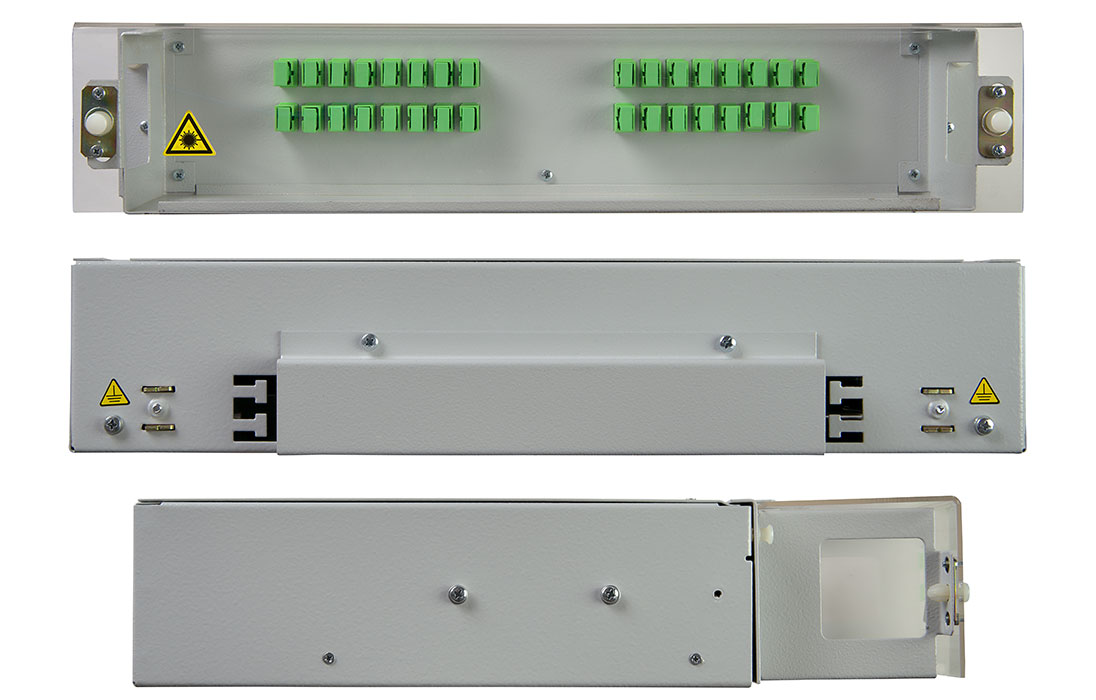

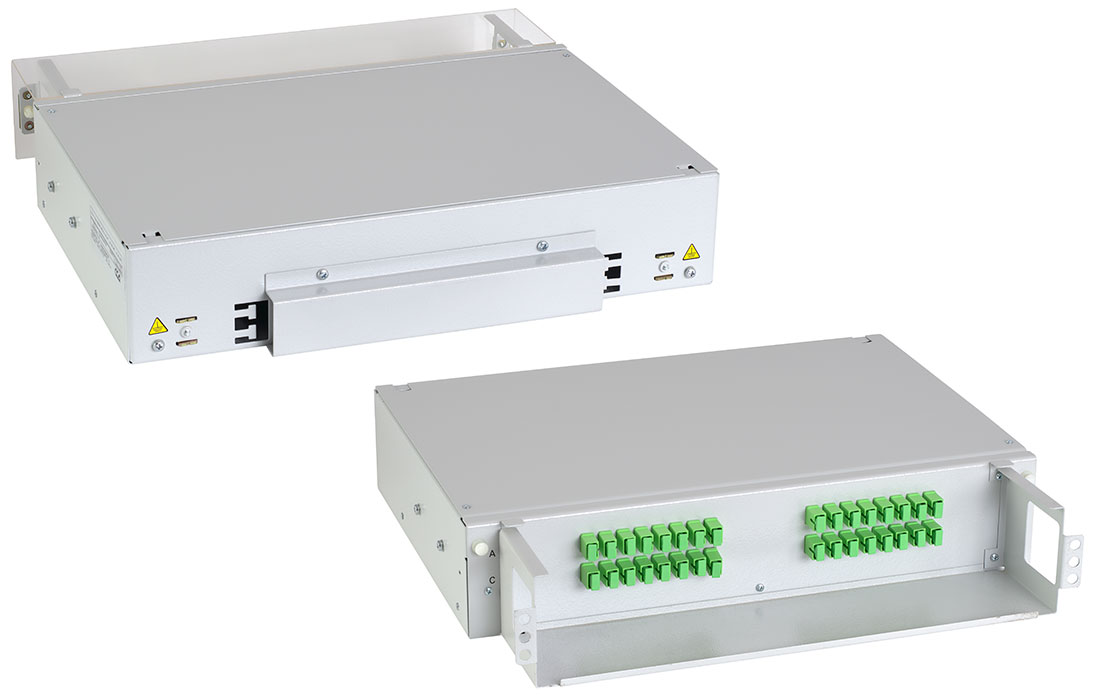

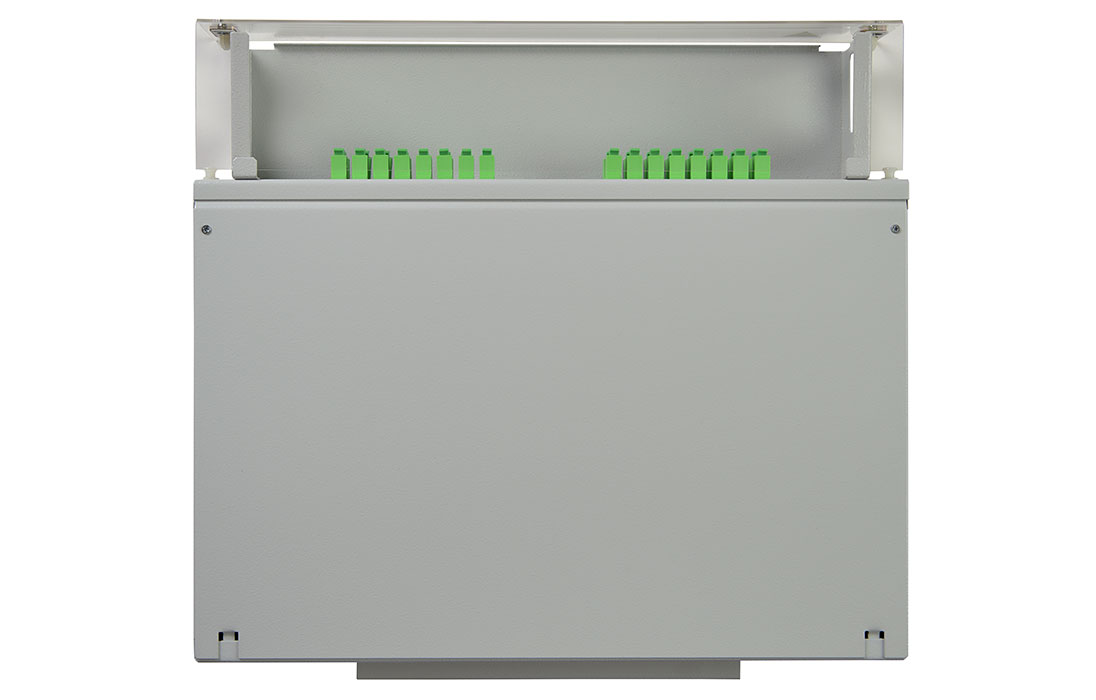

CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 1
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 2
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 3
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 4

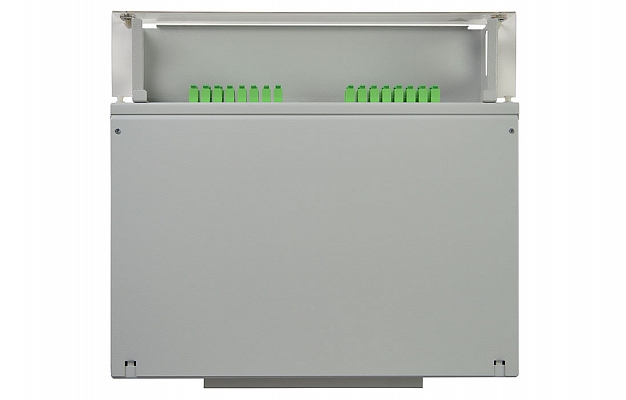

CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 5
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 6

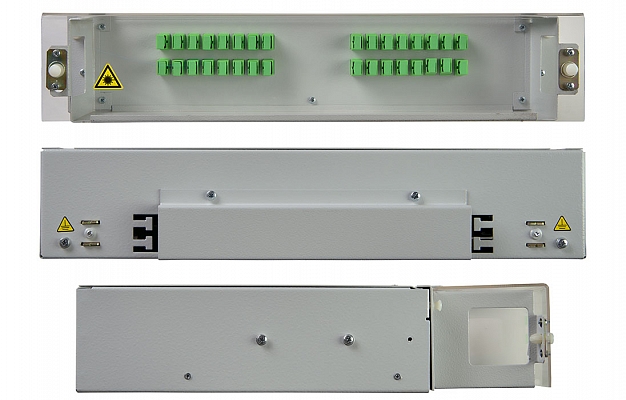

CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 7
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 1
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 2
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 3
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 4
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 5
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 6
CCD ShKOS-VP-2U/4-32SC-32SC/APC-32SC/APC Patch Panel внешний вид 7

About this item (PDF)

Ask a question (2)

The CCD ShKOS-VP patch panel is intended for use in 19'' racks. It can also be installed in 21'' (ETSI) and 23'' racks and cabinets with the use of extra brackets.

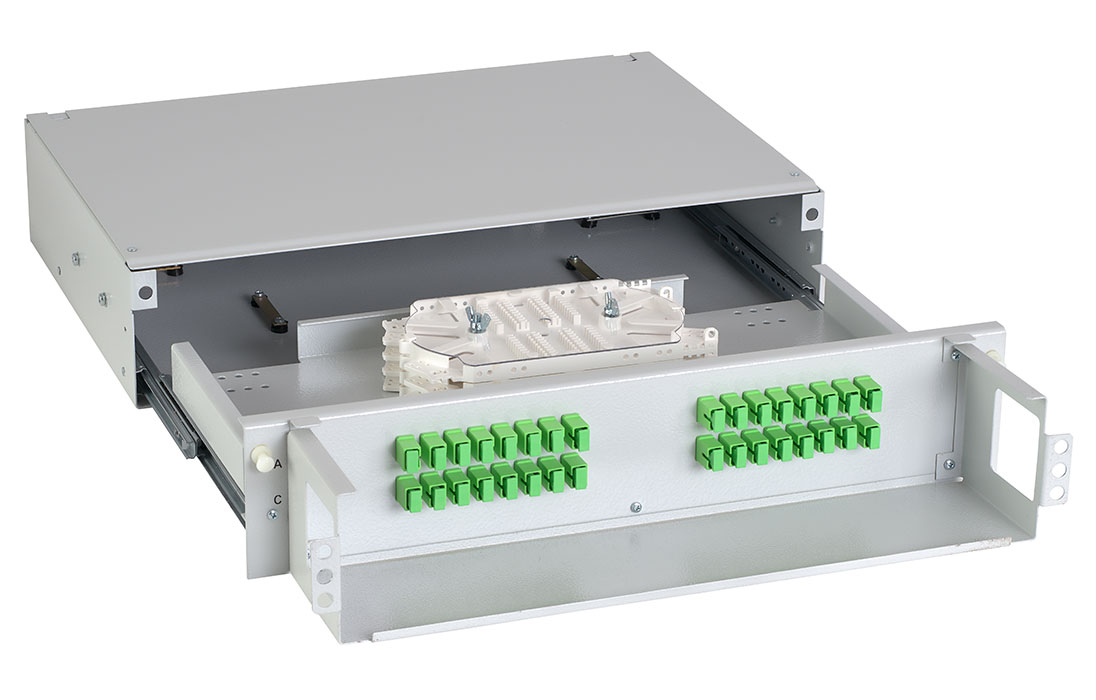

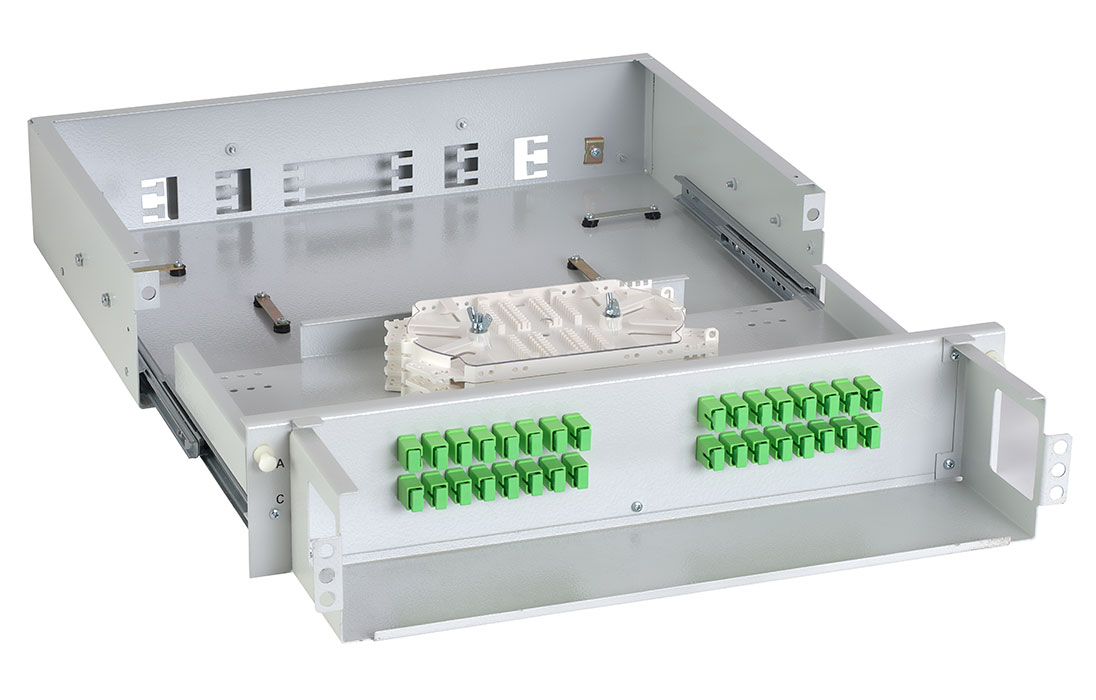

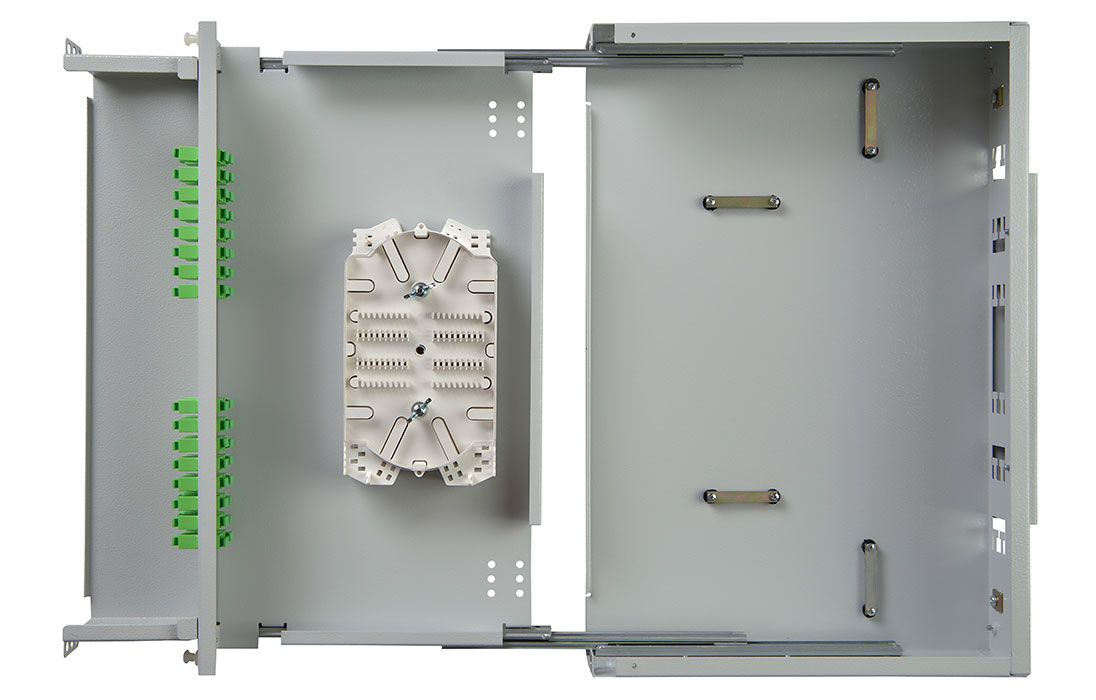

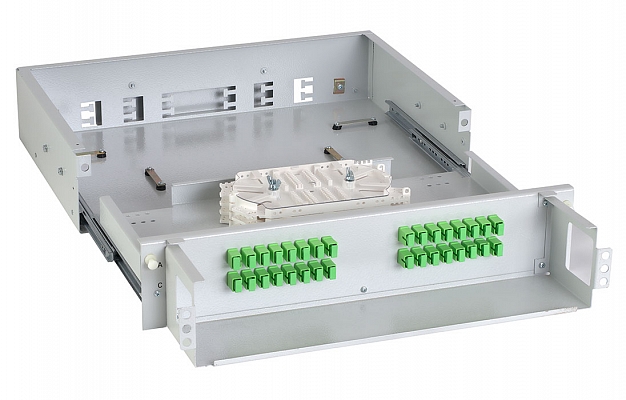

The patch panel is equipped with the sliding shelf that ensures easy installation and subsequent maintenance. There is an organizer shelf covered with a protective plastic shield to protect patch cords connected to the patch panel adapters. The patch cords are routed out through corresponding openings on the left and right side of the patch panel.

Unlike 1U ShKOS-VP patch panels, the removable adapter plates are not used in the 2U ShKOS-VP patch panels. The adapter slots are located symmetrically on the front panel.

The cable sheath is fastened with nylon cable ties to the specific cable entry node secured to the rear wall of the patch panel body. The cable central strength member is anchored by a metal hold-down clamp.

Features:
• complete kit;
• perforated front panel for adapter installation;
• sliding shelf;

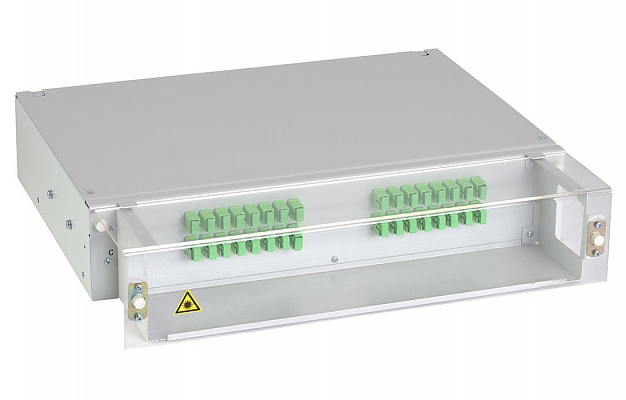

• removable front organizer shelf with a protective shield;
• 19" fastening brackets position can be changed to adjust the patch panel depth in the rack;
• cables can be inserted from any side due to the cable entry longitudinal location;
• option of preterminated cables insertion and fastening to the patch panel body;
• can be equipped with extra 21" (ETSI) and 23" brackets.


Price
Retail price, with Vat Date 29.04.2024 17 011.44 RUB
Retail price, W/out Vat Date 29.04.2024 14 176.20 RUB
Item parameters
Technical specifications
Max. number of SC ports 32
Max. number of inserted cables, pcs. 4 or 2 transit
ODF type 19'', 23'', ETSI
Patch panel body dimensions, mm 410х414х85.5
Weight, kg 5.6
Kit content
ShKOS-VP-2U patch panel body 1 pc.
19" fastening bracket 2 pcs.
Organizer shelf with protective shield 1 pc.
KT-3645 splice tray 4 pcs.
KT splice tray cover 1 pc.
SC/APC/SM adapter 32 pcs.
SC/APC/SM pigtail 32 pcs.
KDZS 4525 splice sleeves 40 pcs.
250 mm nylon cable tie 4 pcs.
Buffer tube marker and tie kit 1 pc.
Pigtail markers 2 kits
Logistic data
Volume, m3: 0,022231
Weight, kg: 5,7
Marking
ShKOS — fiber optic distribution patch panel
VP — sliding patch panel type
2U — patch panel height in units
4 — number of cable entries
32 — number of ports
SC — type of ports
32 — number of adapters
SC/APC — type of adapters
32 — number of pigtails
SC/APC — type of pigtails
