CCD VOKS-FP-93-36P-24SC/APC-OVM MODF Cabinet, Organizers, VKR

The CCD VOKS-FP-93 MODFcabinet is used for inserting a large number of fiber optic cables (several dozen or more), splicing and patching of fibers, routing of incoming/outgoing cables and patch cords. It can be installed in data centers, headends, collocation points and telecom central offices  , in cable TV networks, in FTTx access networks (fiber to the home, community, desk, etc.), in passive optical networks (PON), in telecom rooms of large office buildings, etc.

The MODF cabinet use is reasonable when a large number of optical ports (not less than 200) are located in one control room. The maximum number of ports in the cabinet is 1728 SC ports or 3456 LC ports. In comparison with traditional solutions based on standard 19" cabinets and racks, the VOKS-FP cabinet provides extra functionality for cable entry, installation of fibers and patching of optical ports with patch cords.

Generally, there are three differ in purpose sections are inside the MODF intended for fastening multifiber cables, fiber splicing and and patching, for patch cords accommodation and storage This significantly simplifies the installation and maintenance  of large number of optical ports. Modular design  ensures that its capacity can be increased as the network expands, and new cables are inserted. The cable management system provides the installation of new cables and switching between operating cables with no negative impact on the previously inserted fibers.

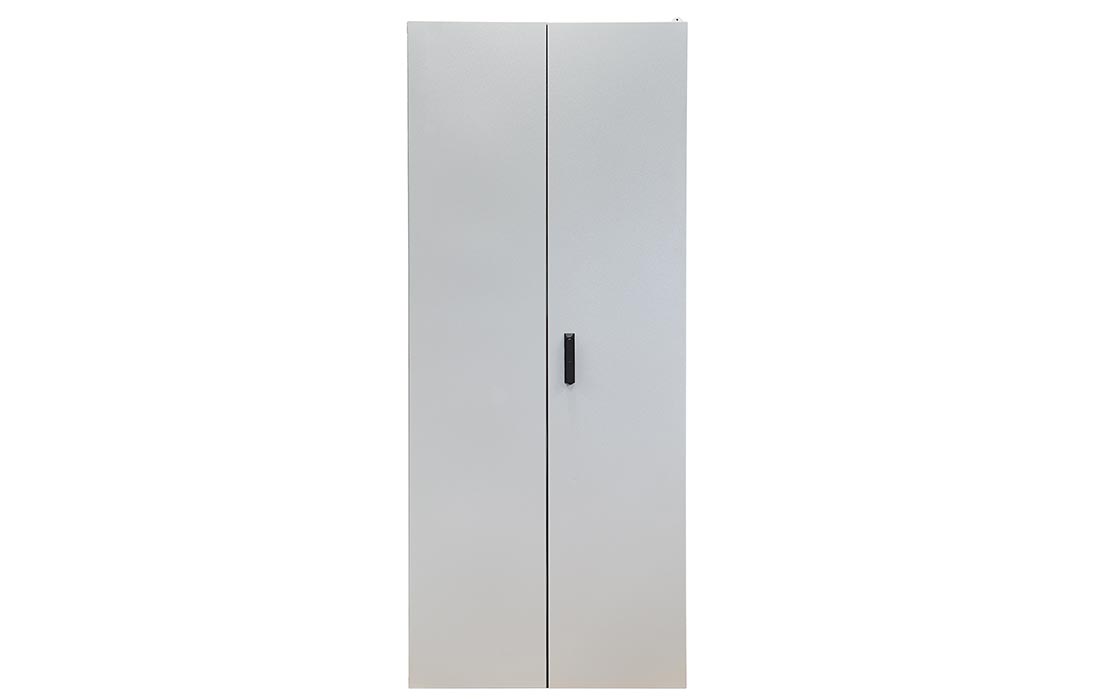

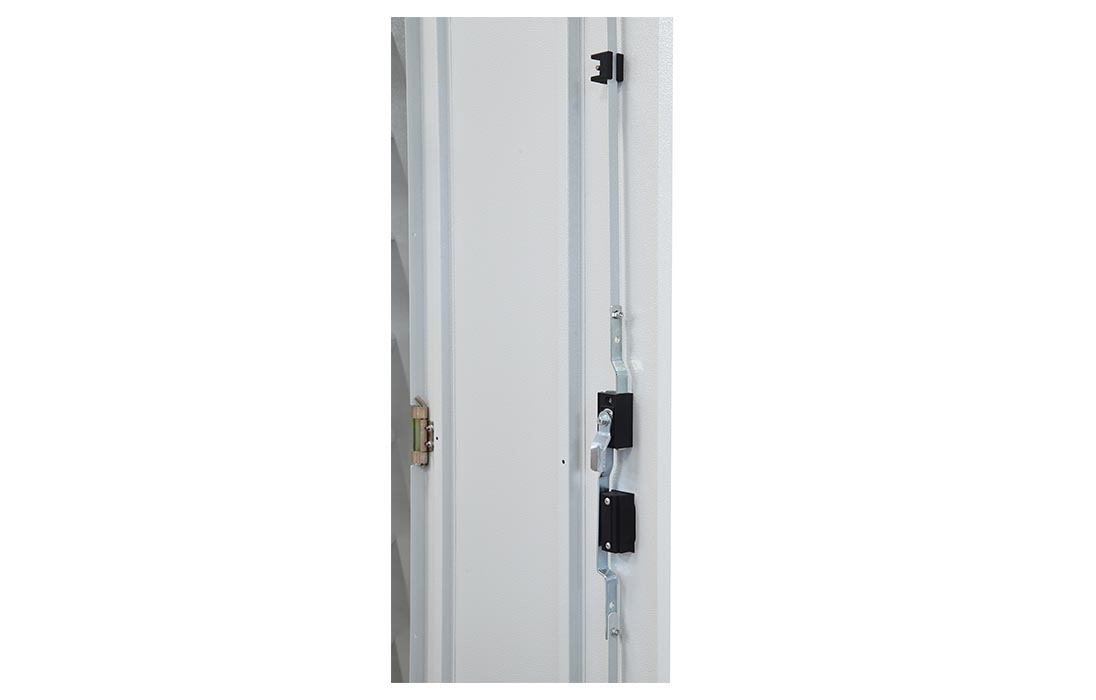

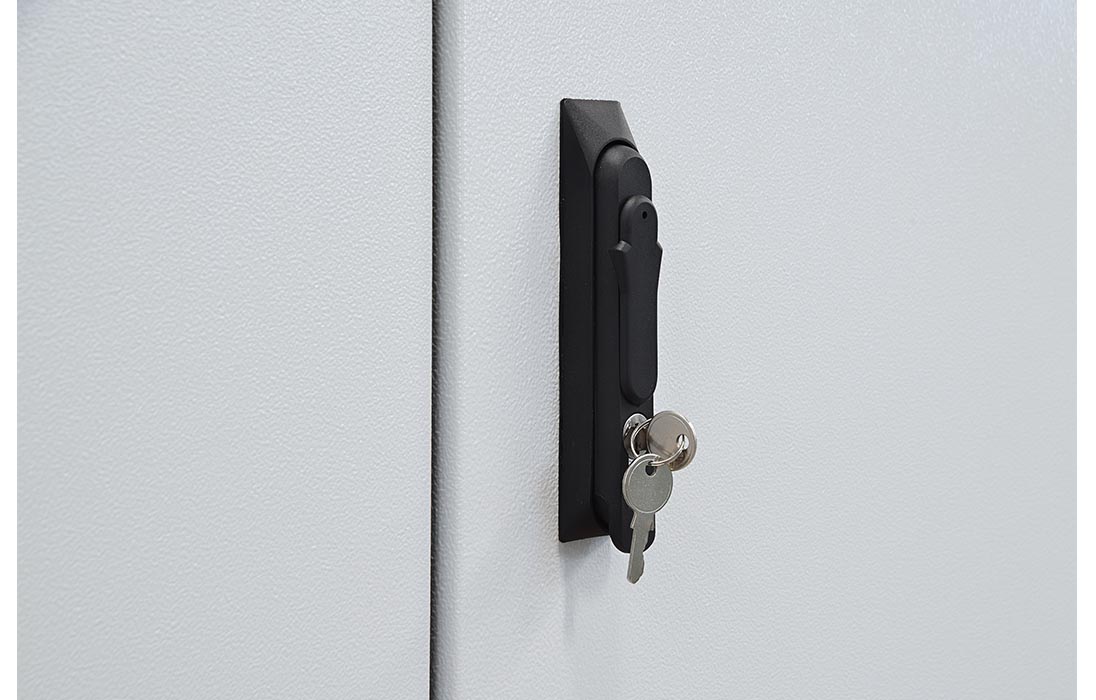

The structure is based on a specific frame with the following dimensions: height - 2000 mm, width - 900 mm and depth - 300 mm.

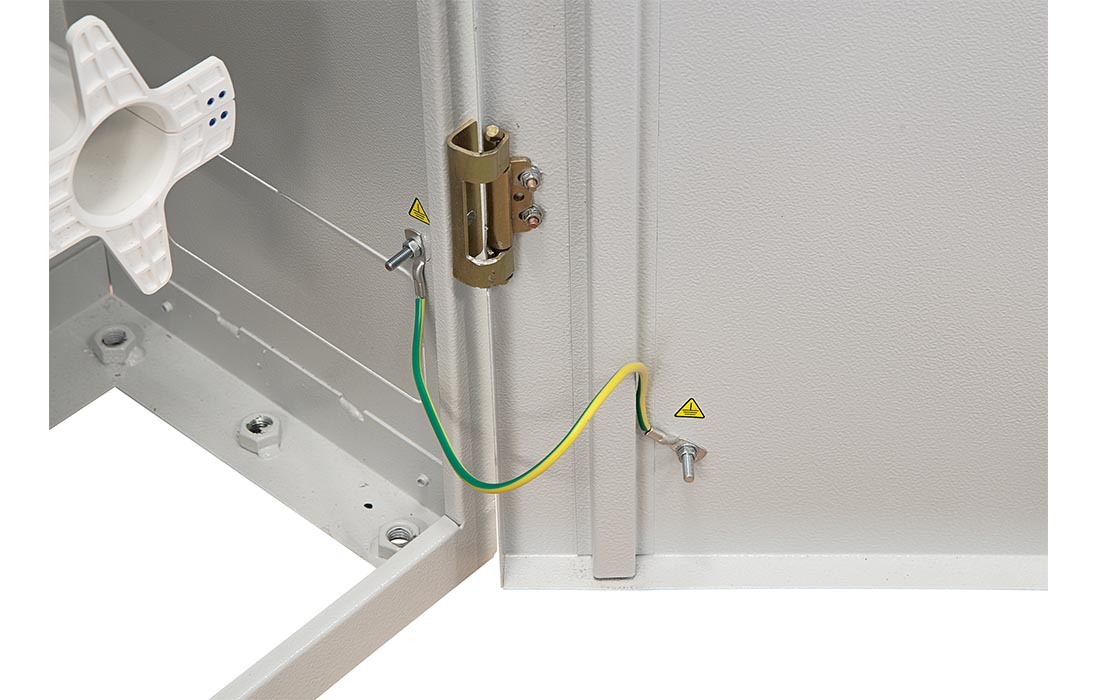

Incoming feeder and distribution cables are prepared and secured in the VKR breakout module. The metal members of cable construction  are grounded as well if available

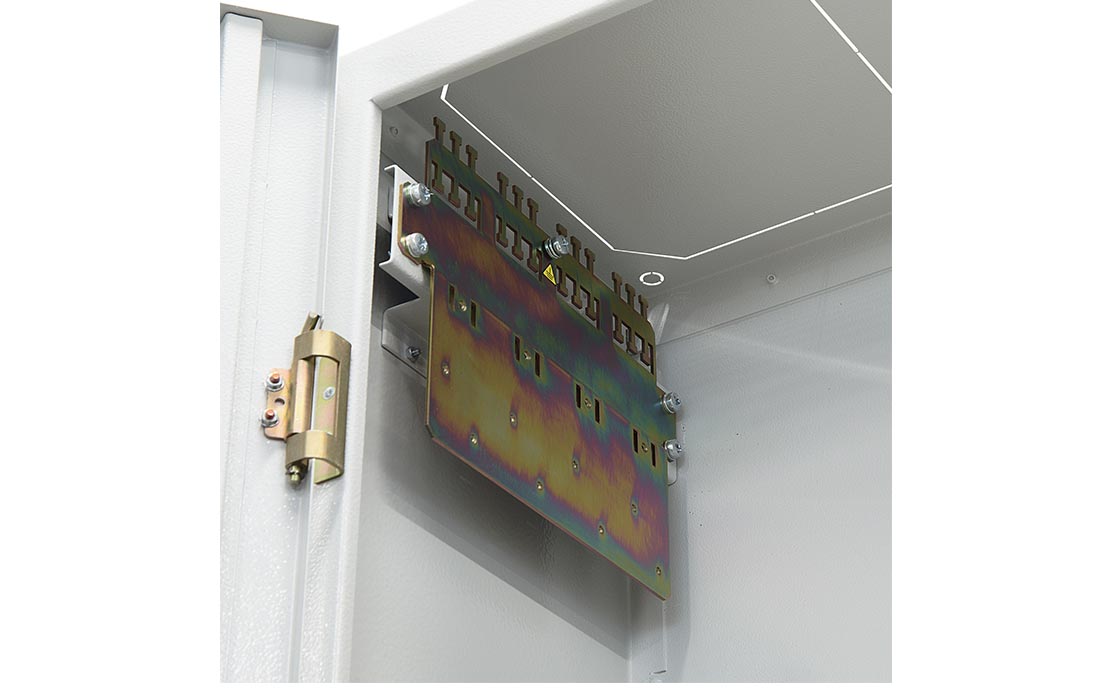

The VKR-3 breakout modules are installed on the VKR carrier plate. One plate  can accommodate up to 4 breakout modules. One carrier plate is already pre-installed in the VOKS-FP cabinet. Up to 5 extra  carrier plates can be installed. Place of installation of carrier plate with VKR-3 module depends on the way of cables enter into the cabinet from above or from below.

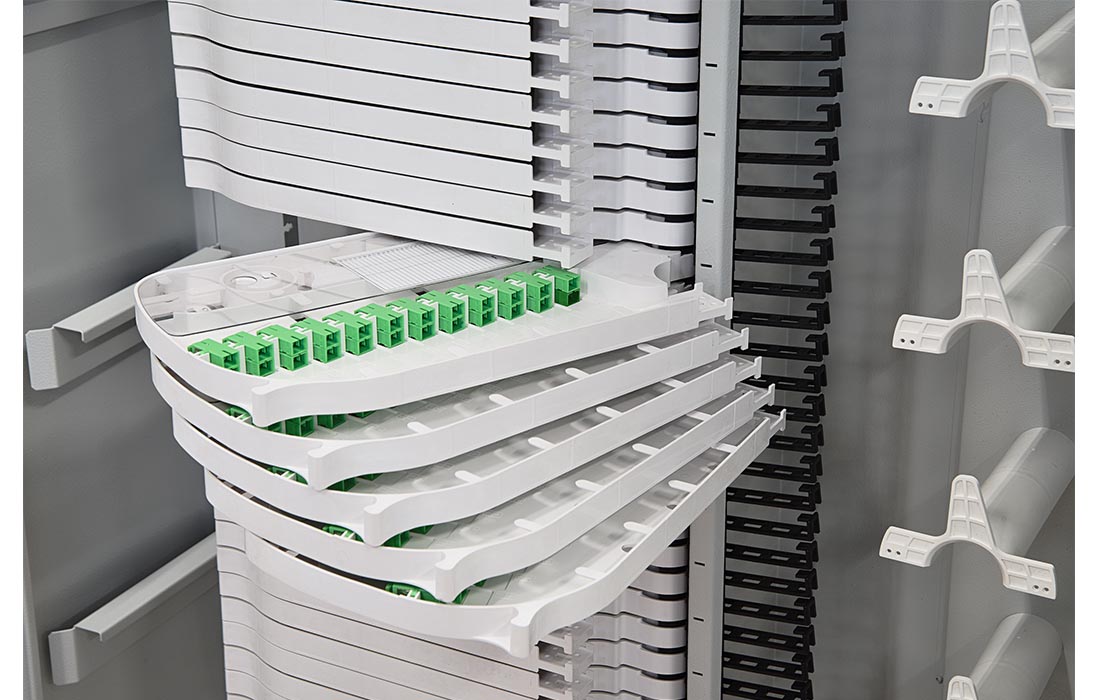

From the breakout module, fibers in transition  tubes are routed into the cross-connect modules and are spliced with pigtails. Optical adapters are installed in the cross-connect modules. For the convenience of fiber maintenance, the cross-connect modules can be swiveled in open position

The cross-connect modules are installed directly into the cabinet frame and can be easy extracted for access.

Cable blocks ("baskets") are not used.

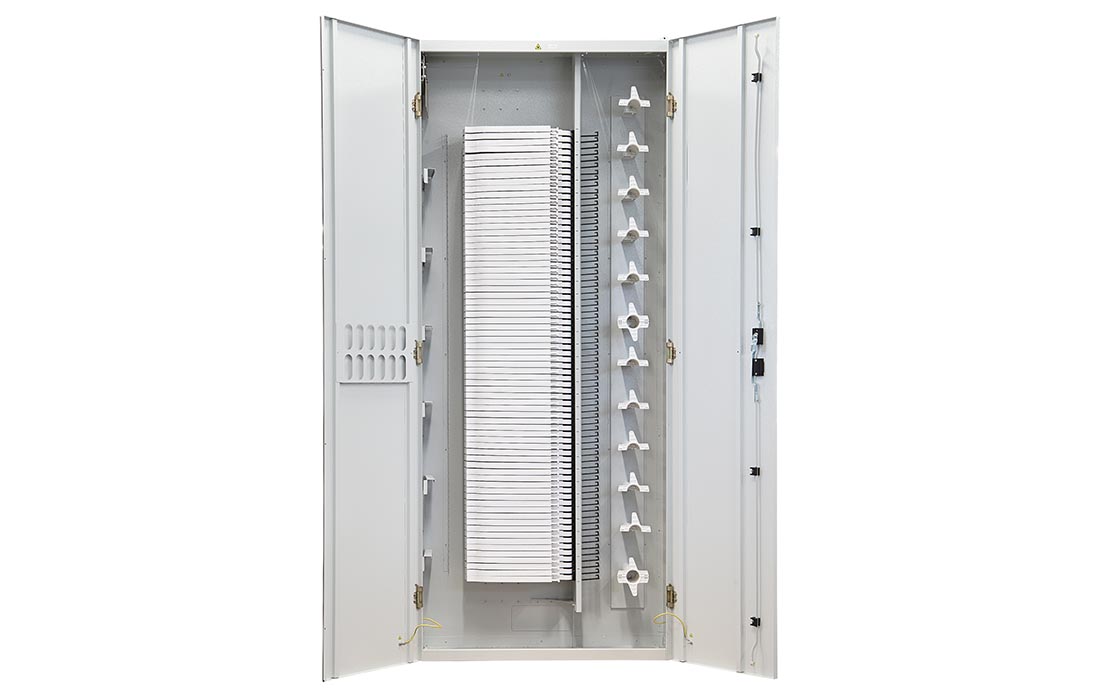

On the right side of the cabinet, there is a storage section with organizers  to lay out and store an excess length of patch cords connected to the cross-connect modules. Such organizer plates increase reliability and minimize time losses during  the MODF maintenance, particularly during patching operations.

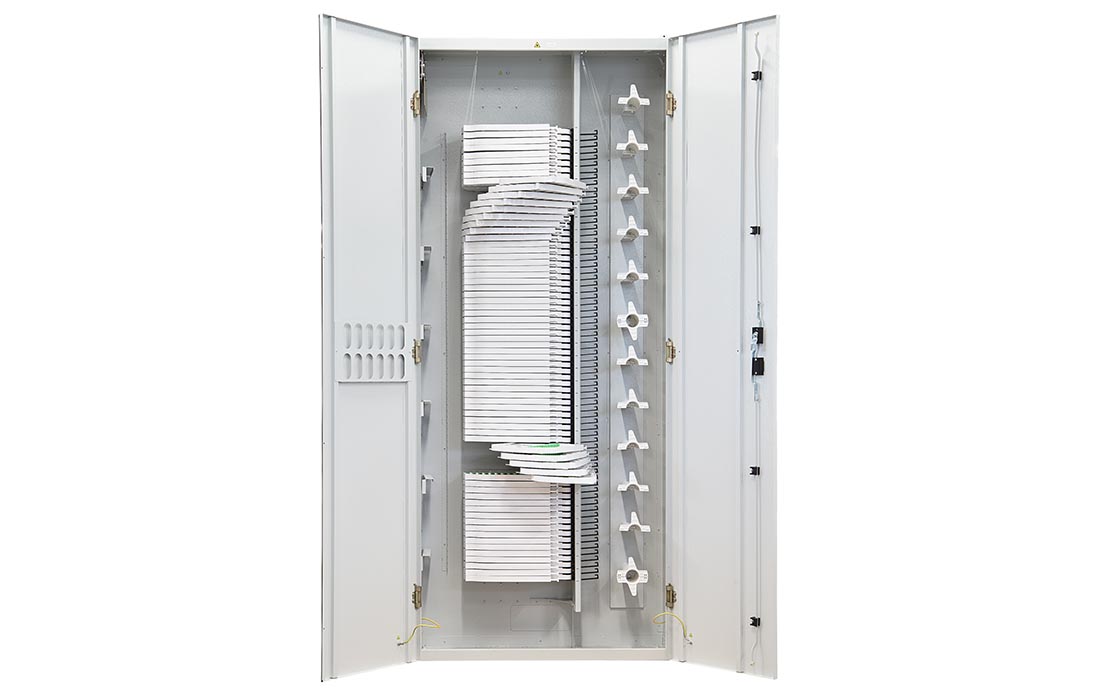

There are the following functional sections inside the VOKS-FP:

• the section for cable insertion, stripping and fastening is arranged in the upper or lower part of the cabinet with the use of VKR-3 breakout modules and 10'' carrier plate;

• the section for splicing and patching of fibers is arranged in the central part of the cabinet.;
