CCD MTOK-A1/216-1KT3645-K-77 Closure Kit

Part number: 130103-00071 Copyed at buffer

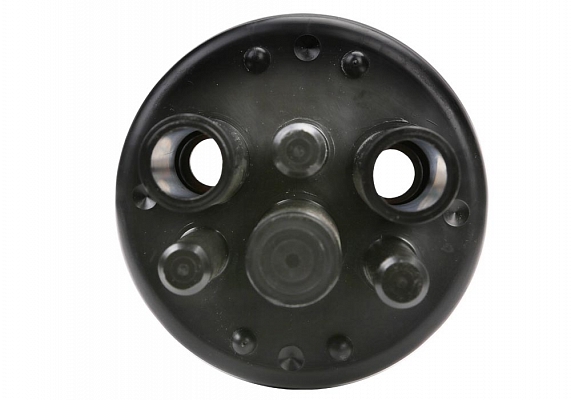

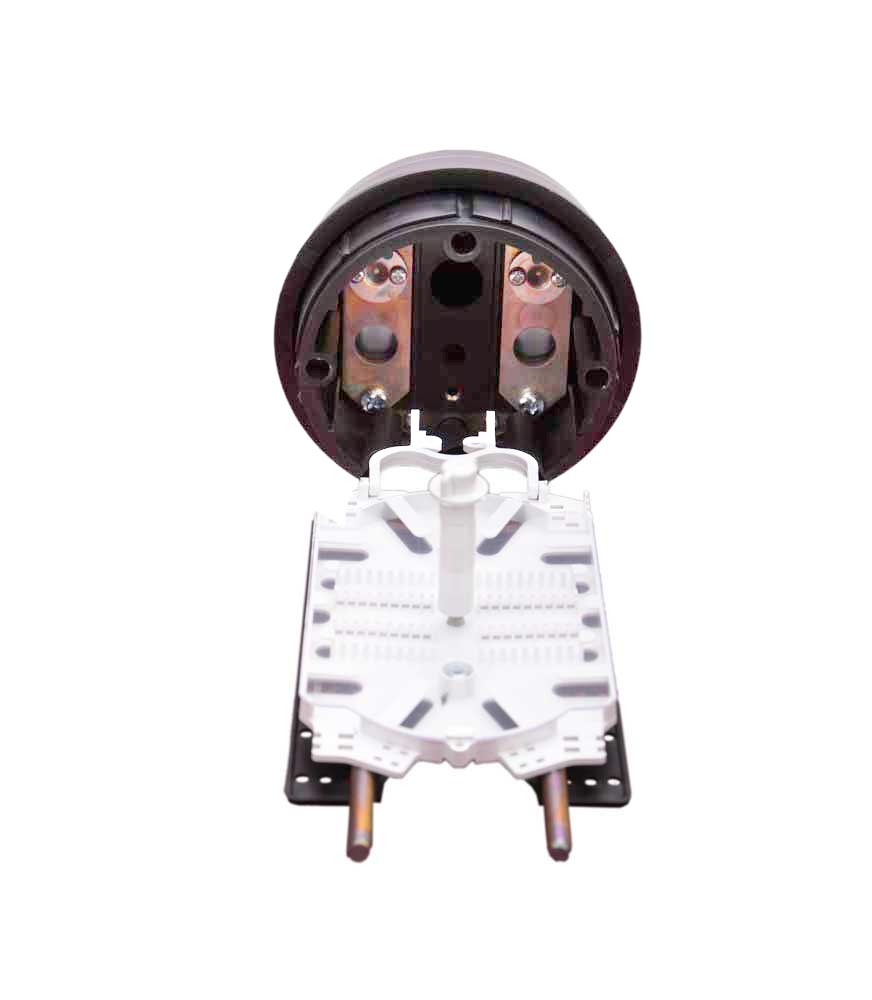

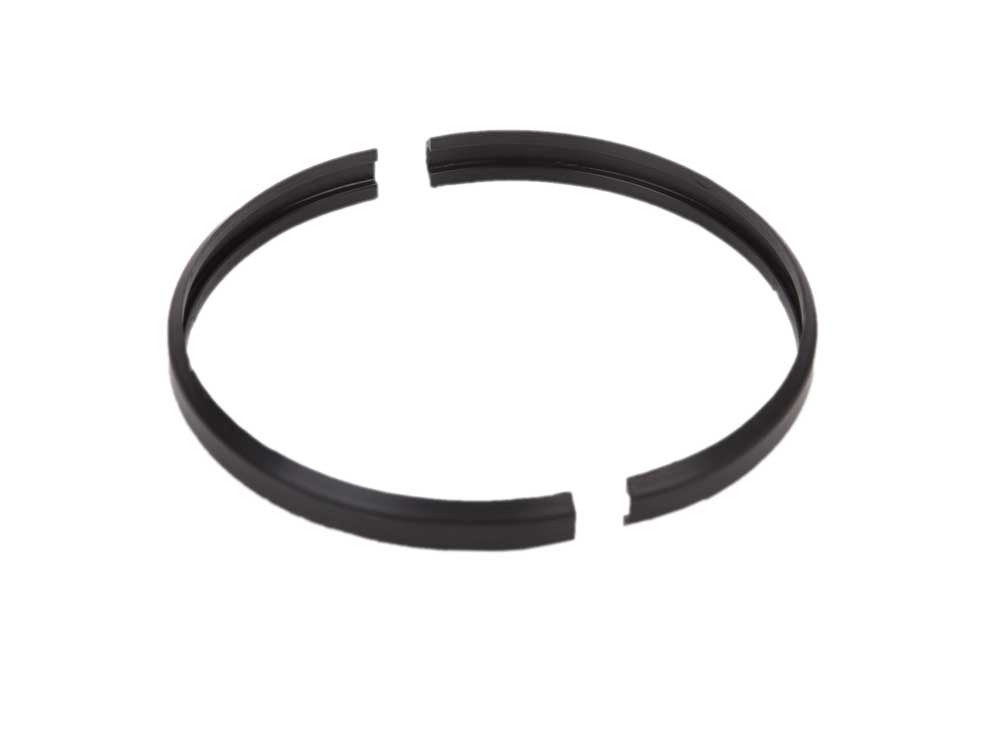

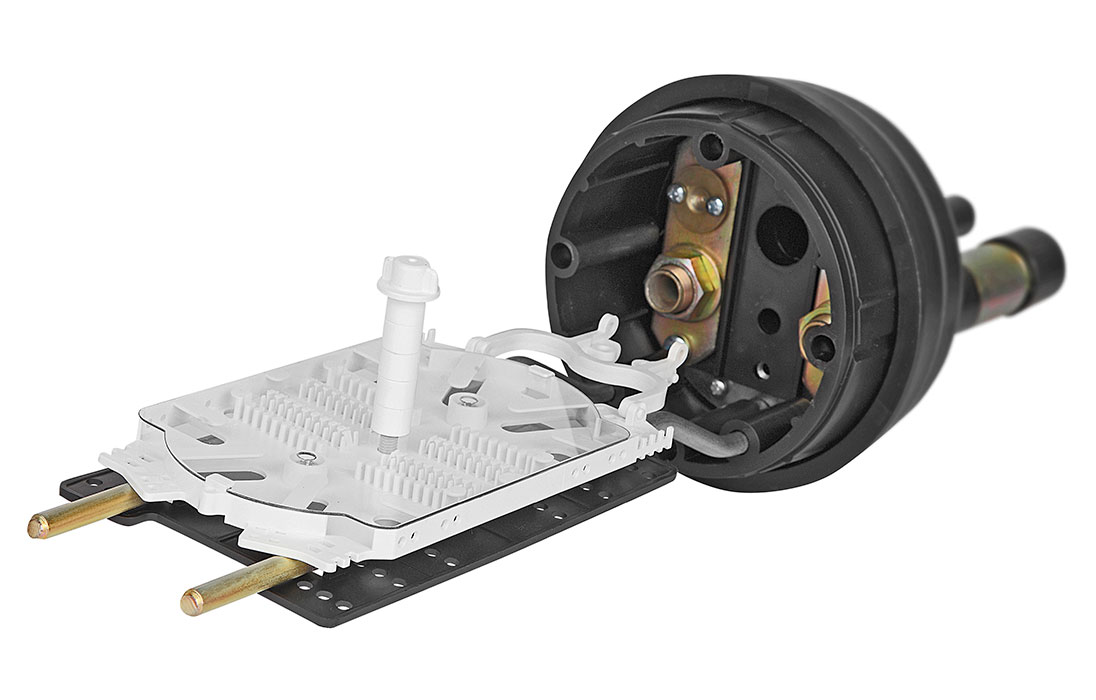

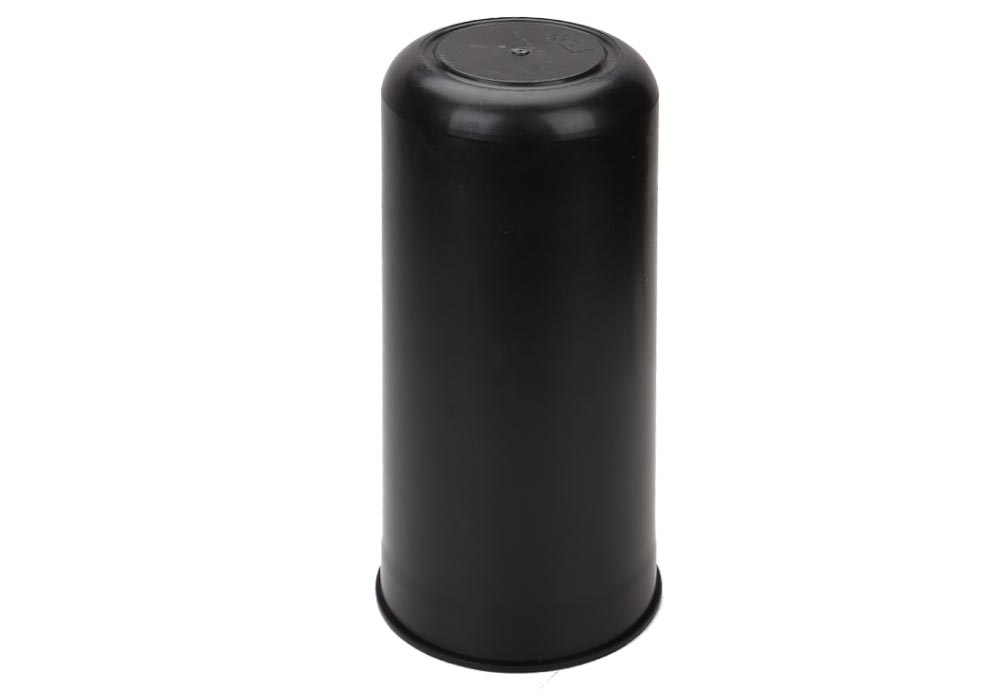

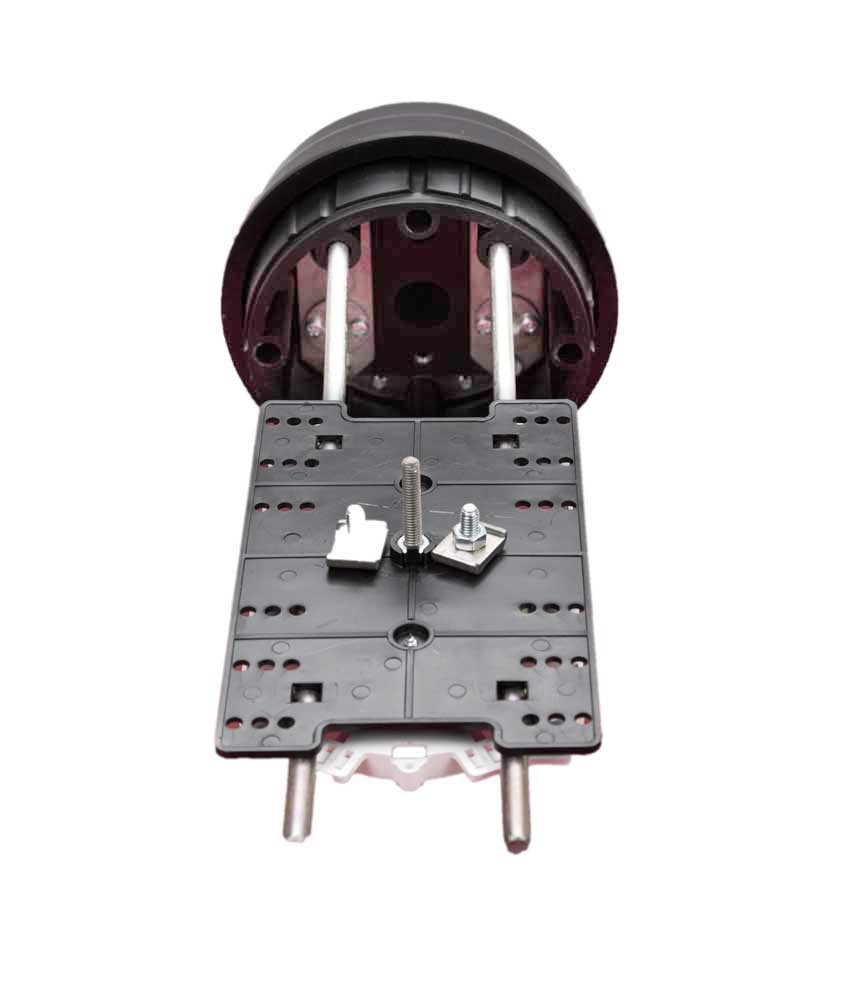

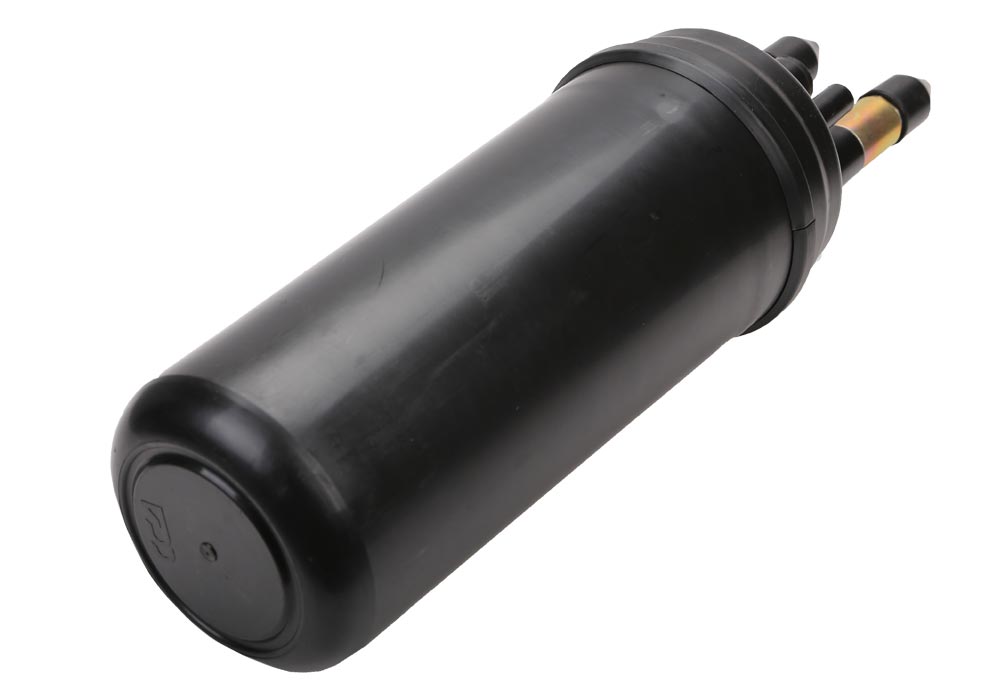

CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 1

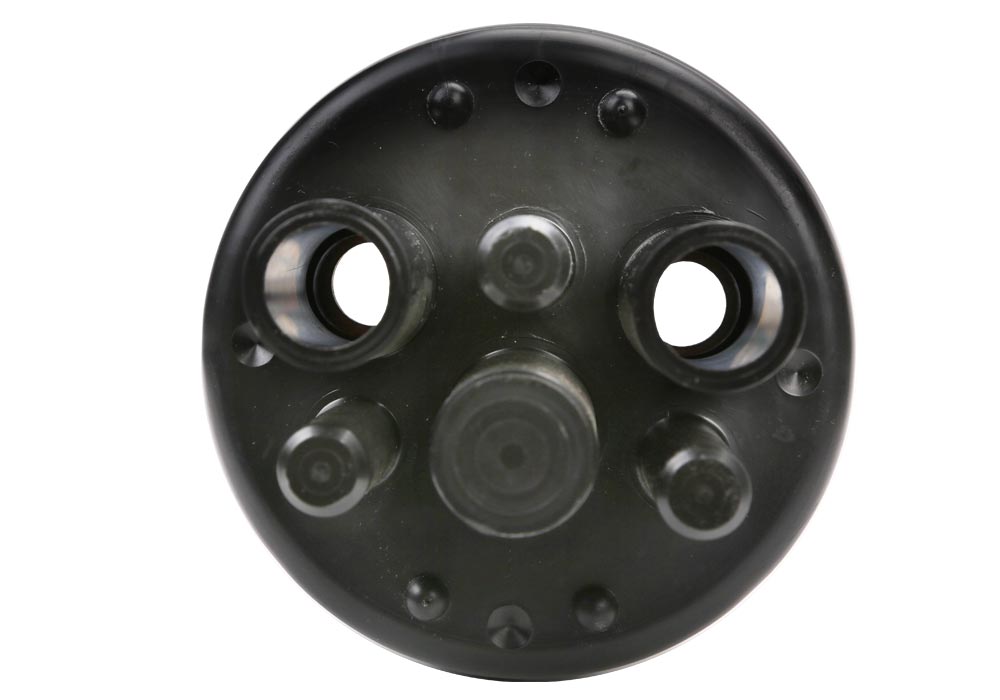

CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 2
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 3
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 4
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 5
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 6
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 7
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 8
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 9
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 1
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 2
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 3
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 4
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 5
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 6
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 7
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 8
CCD MTOK-A1/216-1KT3645-K-77 Closure Kit внешний вид 9

About this item (PDF)

Ask a question (1)

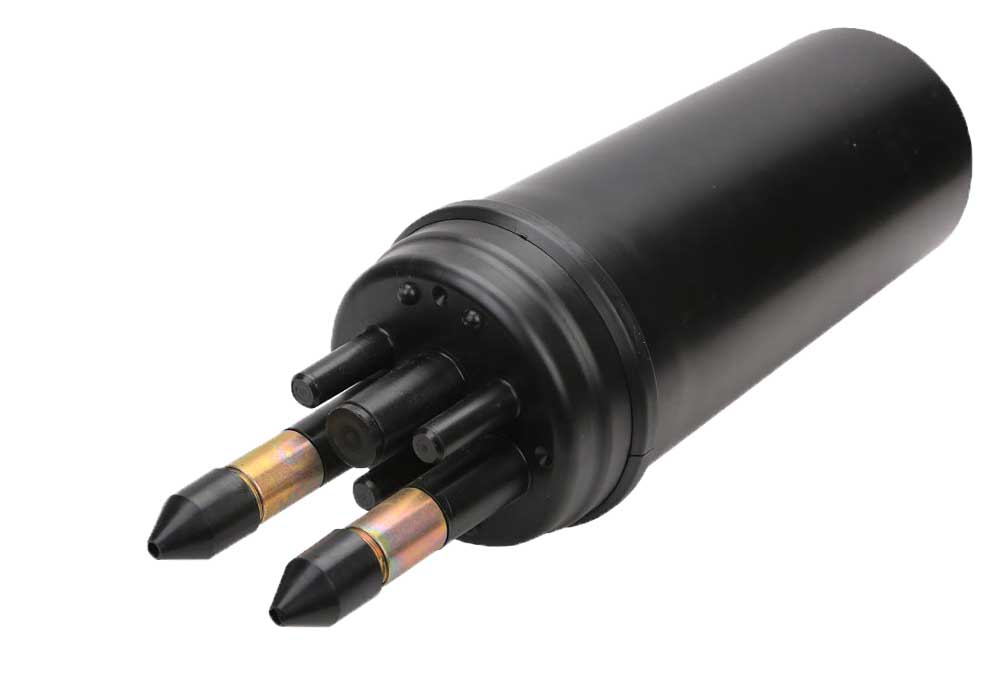

The classic МТОК-А1 Dome Closure Kit is used for jointing any underground fiber optic cable (OPUG) in all types of soils, and for submarine cable installed across rivers, lakes, and swamps. This is achieved using special cable entries that correspond to each specific cable group.

The closure body and head are sealed with heat shrink tubes. The heat shrink tubes are also used for resealing in case of the closure opening for maintenance. .

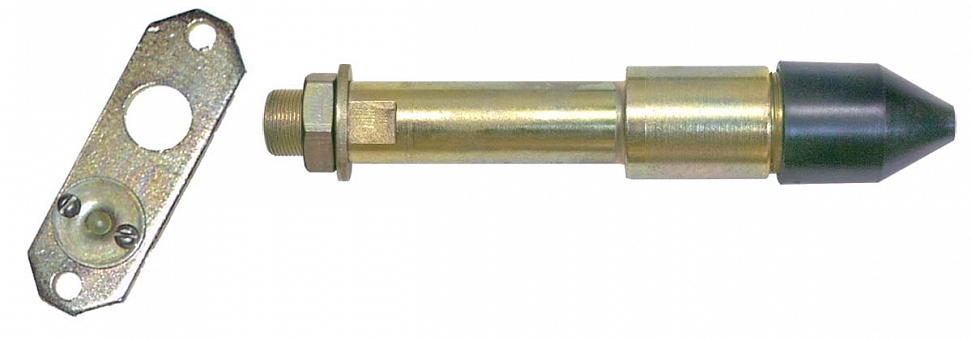

The cable insertion, central strength member fastening, and cable ports sealing are achieved using specific cable entry kits . A special insulating plate is installed on the closure head, which, in combination with the appropriate cable entry sealing kits, provides unique features and capabilities:

- solid anchoring of armored cable (bears up to 15 kN force at break),

- protection against twisting of armored cables during operation,

- electric contact between the cable armor and the special entry (fitting) body,

- option of insulation or connection the armor of all cables straight in the closure,

- longitudinal sealing of inserted cables,

- option to lead out the grounding wire (testing wire) from the armor of each cable.

The MTOK-A1 closure is supplied with two cable entry sealing kits: MTOK #7 or # 8. The closure can also be ordered with one MTOK #7 and one #8 cable entry sealing kits. In case of the third cable insertion into the closure, an additional cable entry sealing kit must be purchased. The extra cable entry sealing kit must comply with the fiber optic cable design.

The grounding (test) wires are entered into the closure through separate small ports. The grounding wires are sealed with heat shrink tubes (HST).

If the closure is mounted in pits, it is required to purchase additional mechanical and mud protection closures MCHZ or MPZ depending on the soil type. The Bracket for Closure Installation in manholes must be purchased to install the closure in cable duct manholes or cable rooms.


Scroll to related products

Price
Retail price, with Vat Date 25.04.2024 11 146.66 RUB
Retail price, W/out Vat Date 25.04.2024 9 288.88 RUB
Item parameters
Technical specifications
Number of fusion splices 216
Splice tray type KT-3645
Max. number of trays 6
Number of cable ports:
- round, up to 16 mm 3
- round, up to 9 mm 3
Closure body sealing Heat shrink tube (HST)
Cable ports sealing HST entry kits
Operating temperature, °C -60...+70
Size, mm:
- length 527
- diameter 159
Weight, kg 3,1
Kit content
Closure body (head, dome, tray bracket, HST 180/58)
 1 pc.
KT-3645 splice tray
 1 pc.
KDZS 4525 fusion splice sleeves
 20 pcs.
KDZS splice inserting tweezers
 1 pc.
MTOK#7 Cable Entry Sealing Kit
 2 pcs.
Marker and tie kit
 1 pc.
Silica gel pad
 1 pc.
Logistic data
Volume, m3: 0,023940
Weight, kg: 3,172
Marking
МТОК — муфта тупиковая оптическая
А1 — оголовник типа А, кожух тип 1
216 — емкость муфты 216 ОВ
1 — одна кассета в комплекте
КТ3645 — кассета КТ-3645
К — наличие КДЗС
77 — наличие комплектов для ввода ОК №7 – 2 шт.
