Part number: 120205-00019 Copyed at buffer

About this item (PDF)

The closure is intended for installation of cables with water-blocking components located in cores, polyethylene reinforced sheaths, with a shield of aluminum foil, SBVBepPu type.

During cable preparation, the cables water-blocking elements are kept for further use in the creation of a waterproof wire splices.

The closure kit includes parts and materials to ensure insulation of wire splices, rehabilitation of wrapping insulation with moisture protection and restoration of the plastic sheath tightness.


Price
Retail price, with Vat Date 13.10.2024 7 301.15 RUB
Retail price, W/out Vat Date 13.10.2024 6 084.29 RUB
Item parameters
Technical specifications
Installed closure length, mm 800
Max. diameter of installed closure, mm 60
Number of pairs with 0.9 mm copper wires in spliced cables 24-30
Closure kit weight, kg 1.7

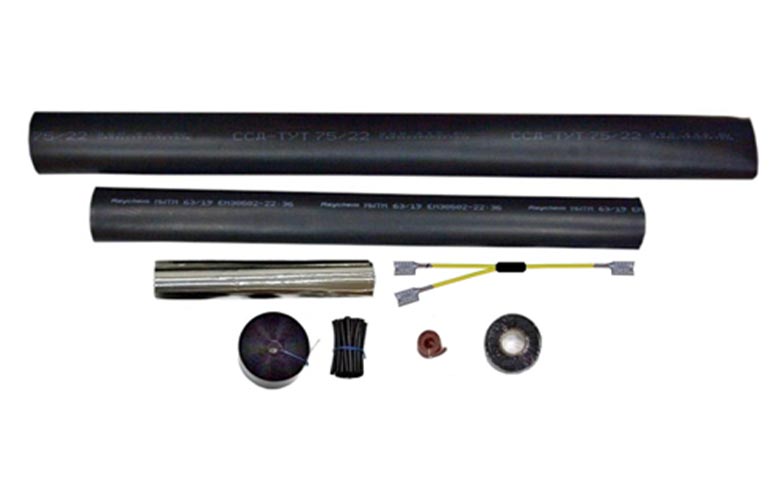

Kit content
DPRKhM foil 1 pc.
PE tape 1 roll
Zip-Lock PE bag 1 pc.
Sheath scuff strip 1 pc.
4/1 ATUM HST tube 60 pcs.
Insulation vinyl tape 2 rolls
Shield Jumper 1 pc.
75/22 700mm HST tube 1 pc.
75/22 800mm HST tube 1 pc.
Box 1 pc.
Product passport 1 pc.
Logistic data
Volume, m3: 0,017657
Weight, kg: 2,462
