Part number: 130801-00711 Copyed at buffer

About this item (PDF)

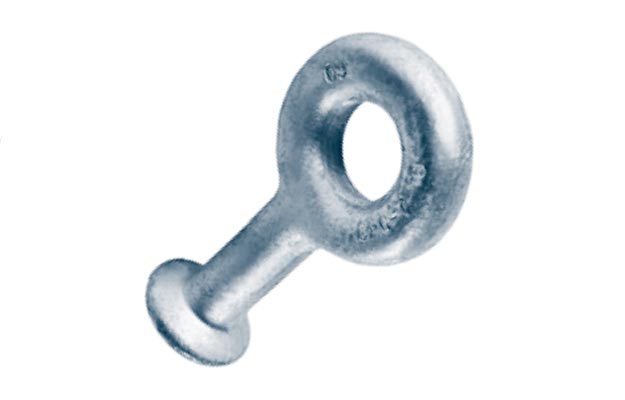

The SRS-7-16 ball-eye link provides a chain connection with suspension string or strain string of power transmission line.

It has a rounded edge to provide mobility in two planes when connected with U-bolts.


Scroll to related products

Price
Retail price, with Vat Date 06.11.2024 146.28 RUB
Retail price, W/out Vat Date 06.11.2024 121.90 RUB
Item parameters
Technical specifications
Min. bond strength, kN 70

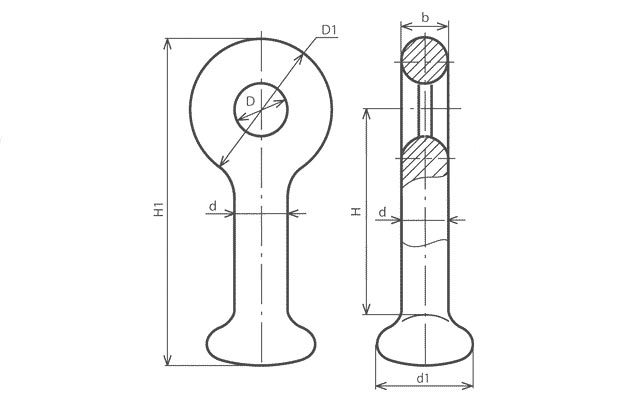

Dimensions, mm
- b 17
- D 23
- D1 55
- d 17
- H 65
- H1 106
Weight, kg 0.34
Kit content
SRS-7-16 Ball-Eye Link 1 pc.
Logistic data
Volume, m3: 0,000600
Weight, kg: 0,35
