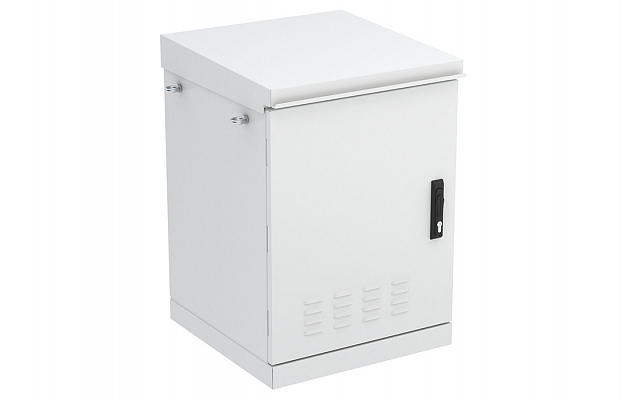

CCD ShKT-NP-18U-600-800 19", 18U (600x800) Floor Mount Climatic Telecommunication Cabinet
Part number:
130411-00856
Copyed at buffer
About this item (PDF)
ShKT-NP is a 19" floor standing telecommunication cabinet used for the installation of active and passive equipment in harsh environmental conditions.
The cabinet is manufactured in accordance with the 482.6 mm (19") series supporting structure system per GOST 28601.2-90 (IEC 297).
The cabinet meets U1 climatic category (optionally UHL1 per GOST 15150-69) and can be operated outdoors and indoors at temperatures from -45 to +40 °C, with a maximum operating relative humidity of 98% at a temperature of -25 °C.
It can be installed on the floor in the technical premises, on a concrete foundation outdoors or on rooftops.
The cabinet has an all-metal welded frame, can be easily installed and fitted with equipment, and requires no assembly. Cabinet fasteners provide the increased rigidity of the frame.
Four M16 holes are located in the cabinet basement to fasten it to a concrete foundation.

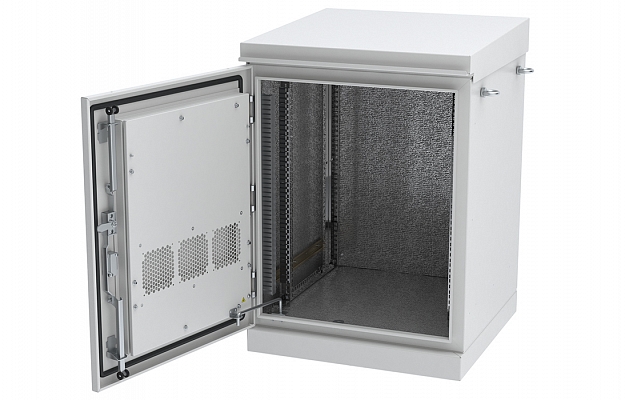

The cabinet door is two-layer, ventilated and equipped with a filter inside.
The cabinet roof is ventilated and equipped with a filter inside. There are places to install a fan module in the roof.
Cable entries are located at the bottom of the cabinet.
The cabinet is lined with insulation inside.
The cabinet body and roof are installed on a basement 67 mm height.

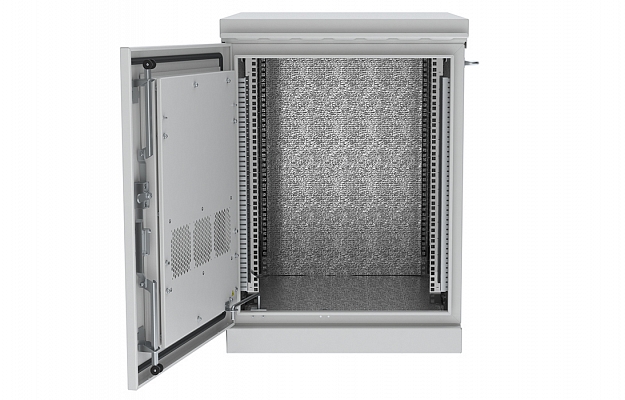

The vertical rails are depth-adjustable.
All metal parts of the cabinet are connected in one ground circuit.
It has impact resistant epoxy polyester powder coating, color – grey RAL 7035.
The cabinet has IP65 ingress protection of the housing (IP55 if an air conditioner or fan module installed).
