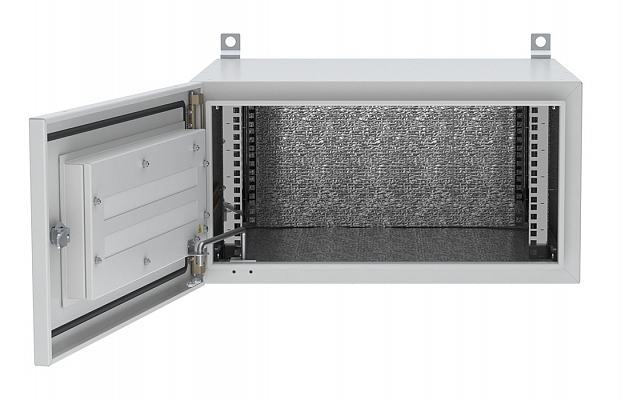

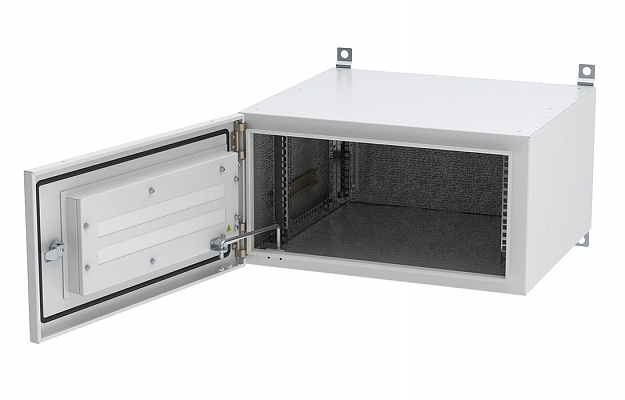

CCD ShKT-NV-9U-600-350 19", 9U (600x350) Hinged Climatic Telecommunication Cabinet
Part number:
130411-00805
Copyed at buffer
About this item (PDF)
ShKT-NV is a 19" hinged telecommunication cabinet used for the installation of active and passive equipment in harsh environmental conditions. The cabinet is manufactured in accordance with the 482.6 mm (19") series supporting structure system per GOST 28601.2-90 (IEC 297).
The cabinet meets U1 climatic category (optionally UHL1 per GOST 15150-69) and can be operated outdoors and indoors at temperatures from -45 to +40 °C, with a maximum operating relative humidity of 98% at a temperature of +25 °C.
The cabinet has an all-metal welded design.
The cabinet is anchored to a wall or pole (pole mount bracket is not included in the kit).
The wall mount bracket hole is 12 mm in diameter.
The cabinet door is two-layer, ventilated, and equipped with a filter it also has space to install a fan module.
Knockout cable entries are located at the bottom of the cabinet. The cabinet is lined with insulation inside.
The vertical rails are depth-adjustable.
All metal parts of the cabinet are connected in one ground circuit.
The cabinet has IP65 ingress protection of the housing (IP55 if at air conditioner or fan module installed).
