CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof

Part number: 130411-00895 Copyed at buffer
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 1
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 2
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 3
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 4
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 5
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 6
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 7
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 8
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 9
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 1
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 2
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 3
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 4
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 5
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 6
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 7
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 8
CCD ShKT-NV-2-18U-600-600 19”, 18U Hinged Climatic Telecommunication Cabinet with Roof внешний вид 9

About this item (PDF)

Model item:   RFA ,  DWG
Ask a question (1)

ShKT-NV-2 is a 19" hinged telecommunication cabinet used for the installation of active and passive equipment in harsh environmental conditions. The cabinet is manufactured in accordance with the 482.6 mm (19") series supporting structure system per GOST 28601.2-90 (IEC 297).

The cabinet meets U1 climatic category (optionally UHL1 per GOST 15150-69) and can be operated outdoors and indoors at temperatures from -45 to +40 °C, with a maximum operating relative humidity of 98% at a temperature of +25 °C.

The cabinet has an all-metal welded design.

The cabinet is anchored to a wall or pole (pole/wall mount bracket is not included in the kit).

The wall mount bracket hole is 12 mm in diameter.

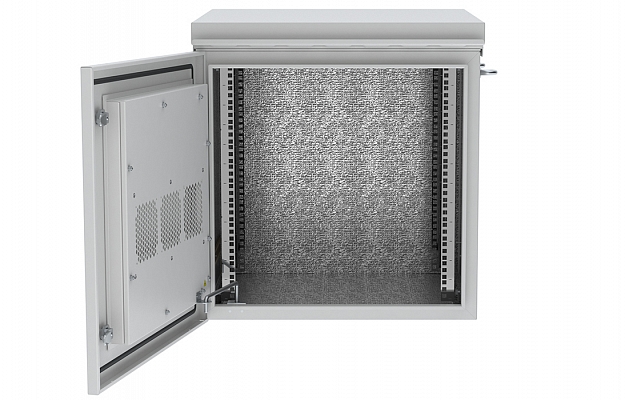

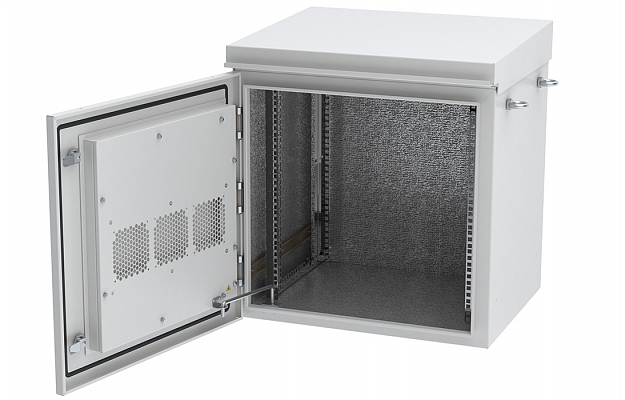

The cabinet door is two-layer, ventilated, and equipped with a filter it also has space to install a fan module.

Knockout cable entries are located at the bottom of the cabinet. The cabinet is lined with insulation inside.

The vertical rails are depth-adjustable.

The main difference of the hinged series ShKT-NV-2 from other climatic telecommunication cabinets is the roof with a canopy provided on top.

All metal parts of the cabinet are connected in one ground circuit.

The cabinet has IP65 ingress protection of the housing (IP55 if an air conditioner or fan module installed).


Scroll to related products

Price
Retail price, with Vat Date 27.04.2024 37 561.20 RUB
Retail price, W/out Vat Date 27.04.2024 31 301.00 RUB
Item parameters
Technical specifications
Height, U 18
Usable depth, mm 500
Color Grey RAL 7035
Distributed load, kg 50
Ingress protection IP65/55*
Climatic category U1
Coating Polyester powder coating
Height, mm 943
Width, mm 600
Depth, mm 659
Weight, kg 81.95
Kit content
Housing 1 pc.
Door 1 pc.
Lock 2 pcs.
Key 2 pcs.
Eye-bolt 4 pcs.
Logistic data
Volume, m3: 0,492723
Weight, kg: 82
Models for design
Шкаф климатический телекоммуникационный навесной ШКТ-НВ-2.rfa
1.55 Mb
130411-00895 ШКТ-НВ-2-18U-600-600 с крышей ССД.dwg
197.44 Kb
Marking
ШКТ — шкаф климатический
НВ — навесной
18U — высота
600*659 — ширина глубина
