CCD ShT-NSs Apartment Built-In Telecommunication Cabinet, Radio-Transparent Door, 4+3 patch cords, 1х4 splitter
Part number:
130411-01178
Copyed at buffer
About this item (PDF)
ShT-NSs telecommunication cabinet is used for the installation of passive and active network equipment including wireless equipment.

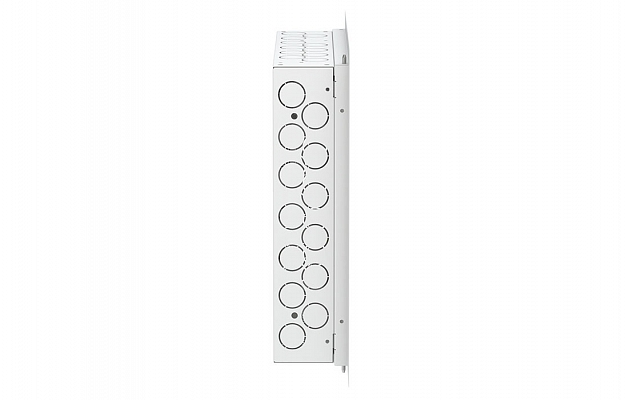

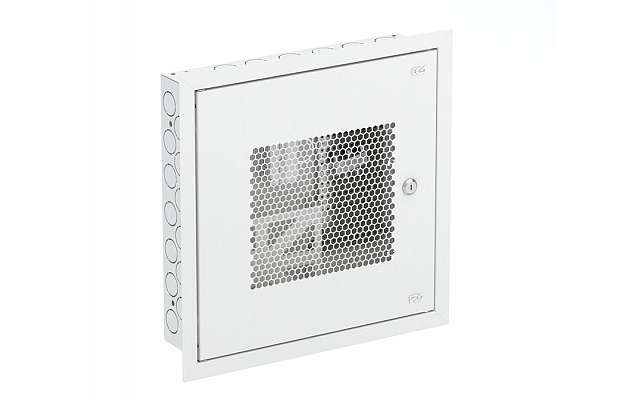

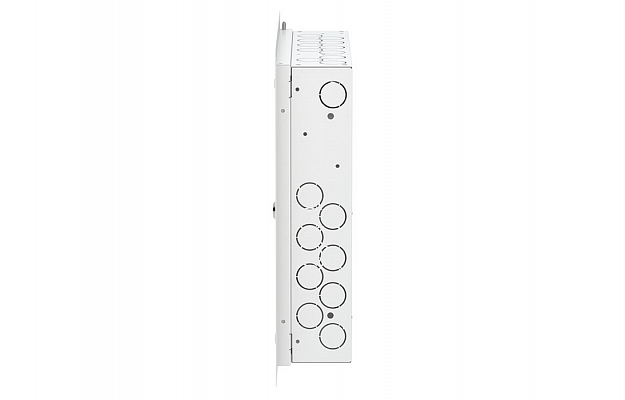

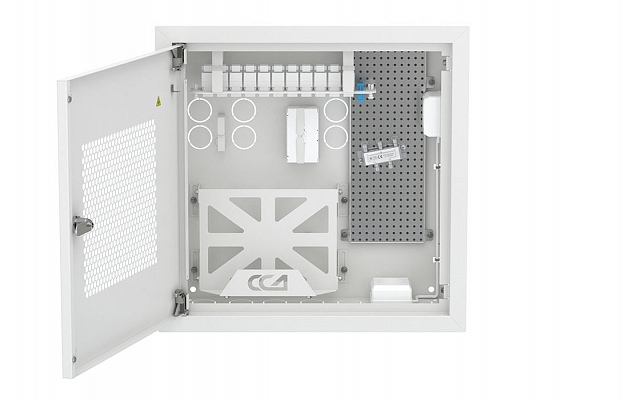

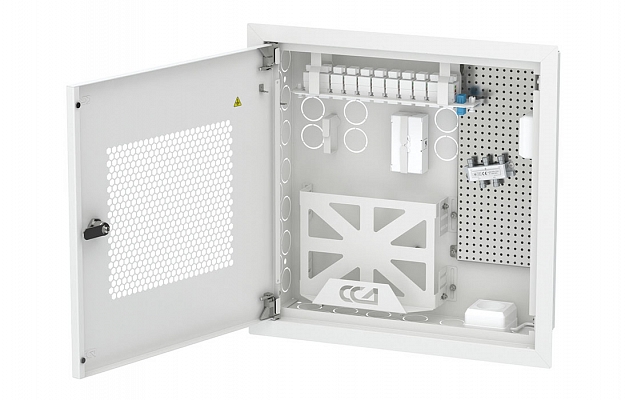

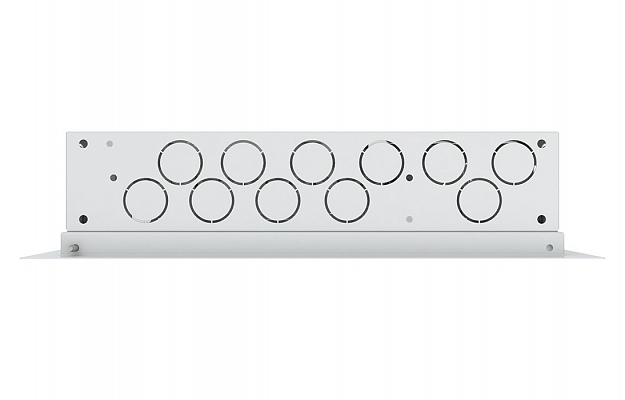

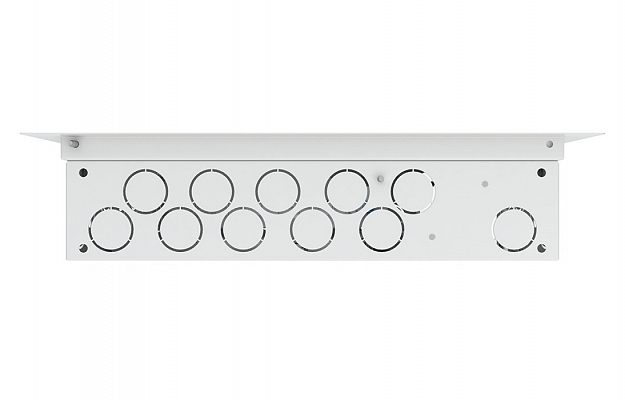

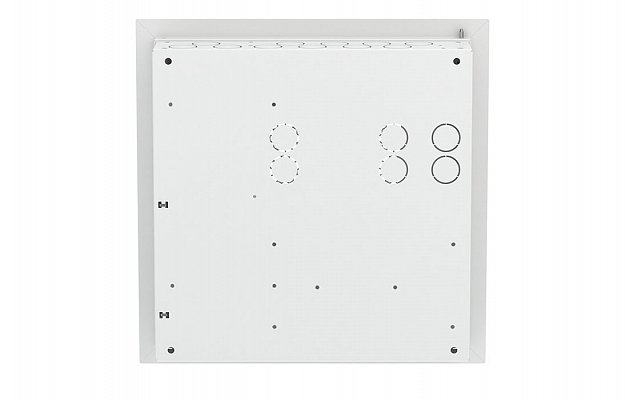

The cabinet consists of the body, external cover frame and perforated door with a lock made of 1.0 mm thick steel. The cover frame is depth adjustable. The door has a perforation for better cooling the active equipment installed inside and passing the radio signal coming out from a Wi-Fi router. There are knockout cable entries with 36 mm diameter on side and rear walls of the cabinet. The cabinet is supplied with 6 rubber cable entry plugs. The cabinet is secured to the wall with dowels through 8.5 mm OD holes on side and rear walls. Inside the cabinet on the rear wall, there is a height adjustable and extendable shelf intended for installing a Wi-Fi router (router is not included in the kit), a frame for Keystone modules, 11 RJ-45 ports, 1 SC UPC port, organizer plate, cable organizer, bracket for 4 parallel RJ-45 ports splitter. Behind the Wi-Fi router shelf on the rear wall, there is a fastener for installing the RF-amplifier (not included in the kit). There are power supply socket on the side wall and in the bottom of the cabinet. Ground circuit elements are located on the door and case of the cabinet.
The cabinet has powder polymeric coating, color – RAL 9003.
