CCD ShRV-K-1 Apartment Distribution Cabinet, Built-In (Telco + Power), 1 Room
Part number:
130411-01401
Copyed at buffer
About this item (PDF)

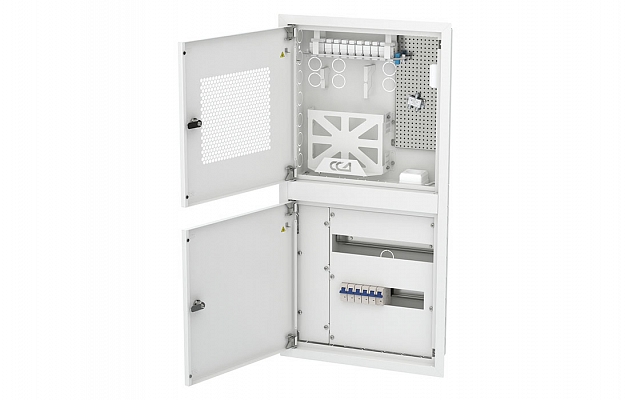

ShRV-K distribution cabinet is used for the installation of electrical, passive and active network equipment including wireless equipment.
It consists of a two-section body and an external hatch which includes an overlay frame with two doors made of 1.0 mm thick steel.
The top and bottom body sections are connected to each other through a spacer.
The top door has a perforation for better cooling the active equipment installed inside and passing the radio signal coming out from a Wi-Fi router. The bottom door is all-metal.
Both doors have locks to prevent unauthorized access to the cabinet.

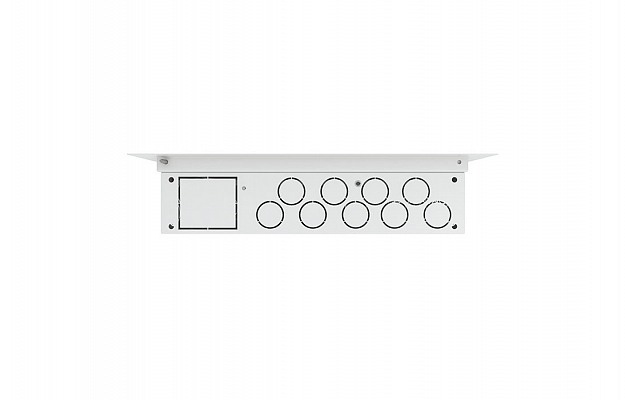

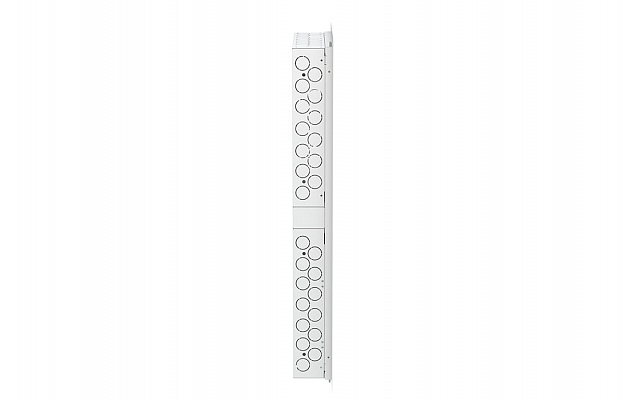

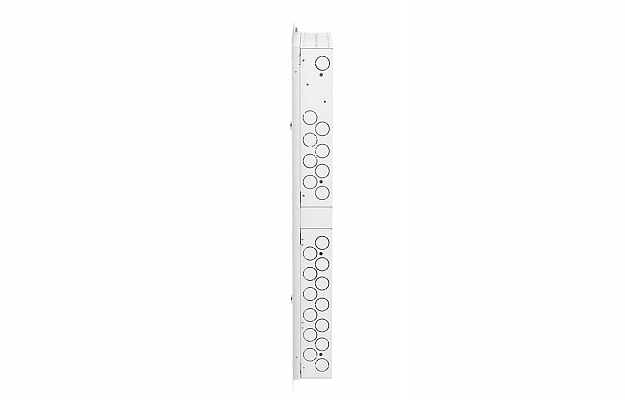

There are knockout cable entries with 36 mm diameter on side and rear walls of the cabinet's two-section body. The cabinet is supplied with 6 rubber cable entry plugs.
The cabinet is secured to the wall with dowels through 8.5 mm OD holes on side and rear walls.
Inside the cabinet on the rear wall of the top section, there is a height adjustable and extendable shelf intended for installing a Wi-Fi router (router is not included in the kit), a frame for Keystone modules, 11 RJ-45 ports, 1 SC UPC port, organizer plate, cable organizer, bracket for 4 parallel RJ-45 ports splitter (splitter is not included in the kit).
The overlay frame with doors and locks is depth-adjustable and fastened to the body by M4 nuts and washers.
Behind the Wi-Fi router shelf on the rear wall, there is a fastener for installing the RF-amplifier (not included in the kit).
There are power supply sockets on the side wall and in the bottom of the top section of the body.
The cabinet has powder polymeric coating, color – RAL 9003.
Ground circuit elements are located on the door and case of the cabinet.
The cabinet grounding system ensures reliable grounding of all parts of the cabinet and meets the requirements of Chapter 17 of EIC 2002 (Rev. 7).
