CCD ShT-NP-S-47U-600-1000-P2P-Ch 19", 47U (600x1000) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door, Black

Part number: 130411-01426 Copyed at buffer
CCD ShT-NP-S-47U-600-1000-P2P-Ch 19", 47U (600x1000) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door, Black

About this item (PDF)

Model item:   RFA ,  DWG
Ask a question (1)

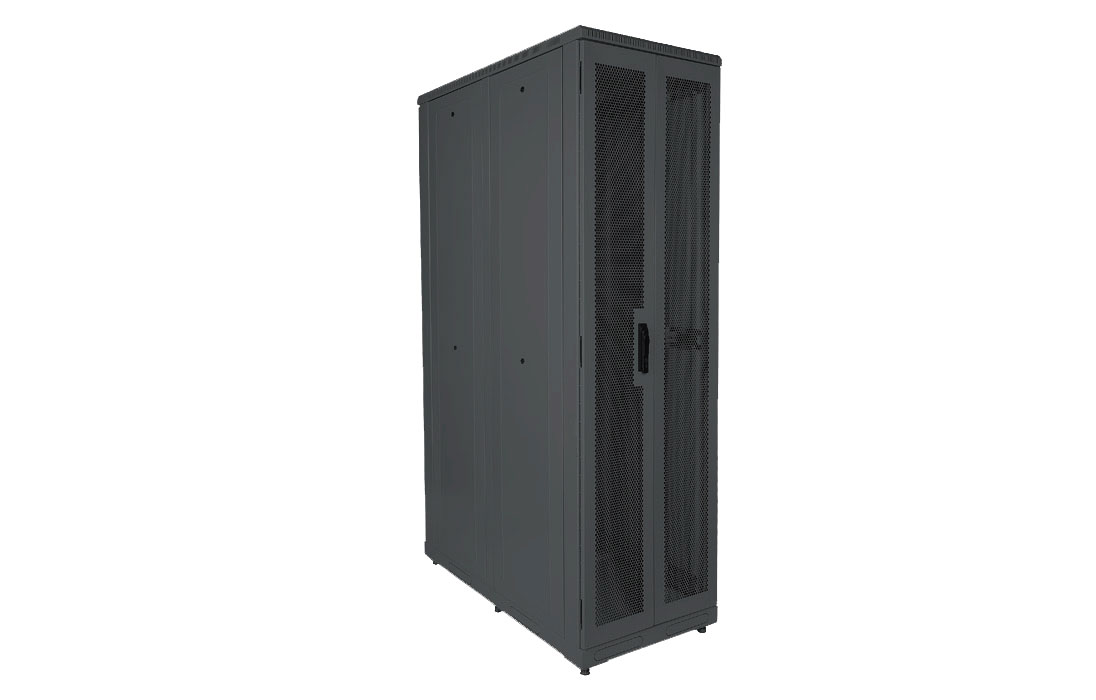

ShT-NP-S is a 19" floor mounted cabinet used for the installation of active and passive server equipment. The cabinet is manufactured in accordance with the 482.6 mm (19") series supporting structure system.

The UHL4 climatic category means that the cabinet is intended for indoor application.

The cabinet consists of a base, roof, three welded frames joined together by C-shape channels and can be fully disassembled.

Supplied in three shipping packages.

The cabinet fasteners provide the increased rigidity of the frame. The distributed vertical load is up to 1000 kg. The basic package of the cabinet includes front and rear doors, side walls with locks.

Cable entries are provided in the upper and lower parts of the cabinet. Fan modules can be installed in the cabinet base or roof.

The vertical rails are depth-adjustable. The cabinet grounding system is included in a basic package.

Six screw supports (legs) can be installed in the cabinet base to compensate for surface irregularities; it is also possible to install rollers. The cabinet can be accessed for installation, connection and maintenance from four sides.


Scroll to related products

Price
Retail price, with Vat Date 01.05.2025 82 192.80 RUB
Retail price, W/out Vat Date 01.05.2025 68 494.00 RUB
Item parameters
Technical specifications
Height, U 47
Usable depth, mm 850
Color Black
Distributed load, kg 1000
Front door material Perforated metal (double leaf)
Rear door material Perforated metal
Height, mm 2260
Width, mm 600
Depth, mm 1000
Weight, kg 110
Kit content
Base 1 pc.
Roof 1 pc.
Frame 3 pcs.
Side wall 4 pcs.
Door 1 pc.
Swing door 1 pc.
Bottom C-shape channel 2 pcs.
Medium C-shape channel 2 pcs.
Upper C-shape channel 2 pcs.
Vertical rails 4 pcs.
Installation kit 1 pc.
Legs 6 pcs.
Set of grounding wires 1 pc.
Logistic data
Volume, m3: 0,652394
Weight, kg: 125,8
Models for design
Шкаф телекоммуникационный напольный серверный 19” 600х1000.rfa
2.27 Mb
130411-01426 ШТ-НП-С-47U-600-1000-П2П-Ч передняя перфорипрованная,задняя перф_двойная_ССД.dwg
750.42 Kb
Marking
ShT — telecommunication cabinet
NP — floor mounted
S — server
47U — cabinet usable height in units
600 — cabinet width in mm
1000 — cabinet depth in mm
P2P — perforated front door, perforated double-leaf swing rear door
