CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door

Part number: 130411-00936 Copyed at buffer
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 1
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 2
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 3
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 4
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 5
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 6
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 7
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 8
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 9
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 10
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 11
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 12
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 1
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 2
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 3
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 4
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 5
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 6
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 7
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 8
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 9
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 10
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 11
CCD ShT-NP-S-42U-800-1200-P2P 19", 42U (800x1200) Floor Mount Telecommunication Server Cabinet, Perforated Front Door, Perforated Double-Leaf Rear Door внешний вид 12

About this item (PDF)

Model item:   RFA ,  DWG
Ask a question

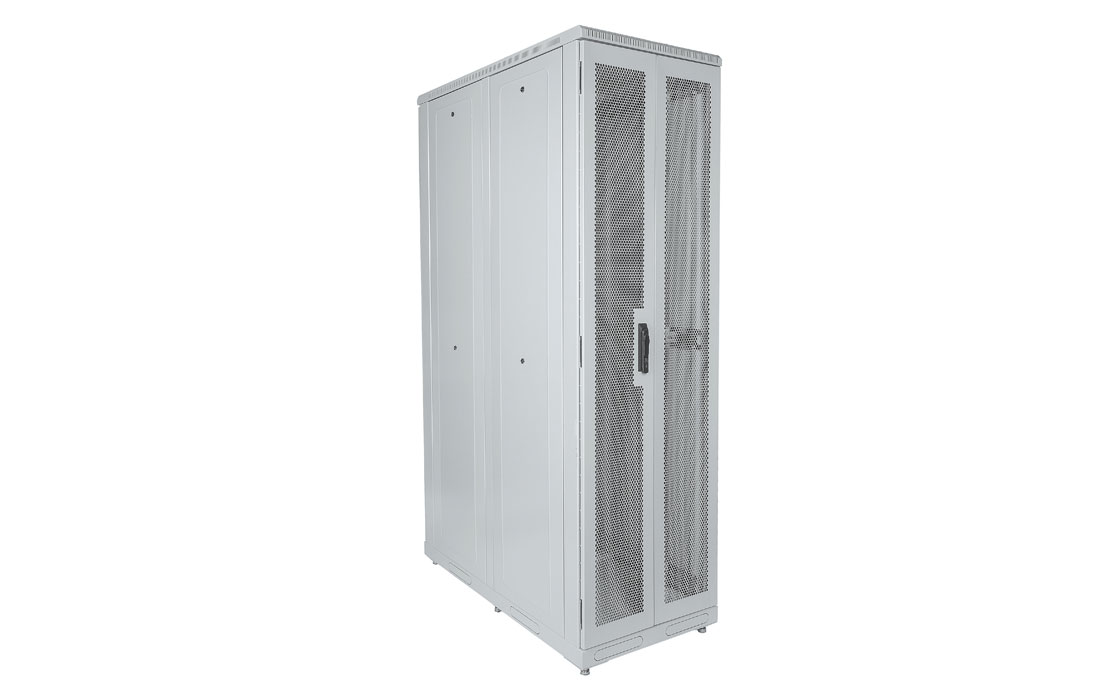

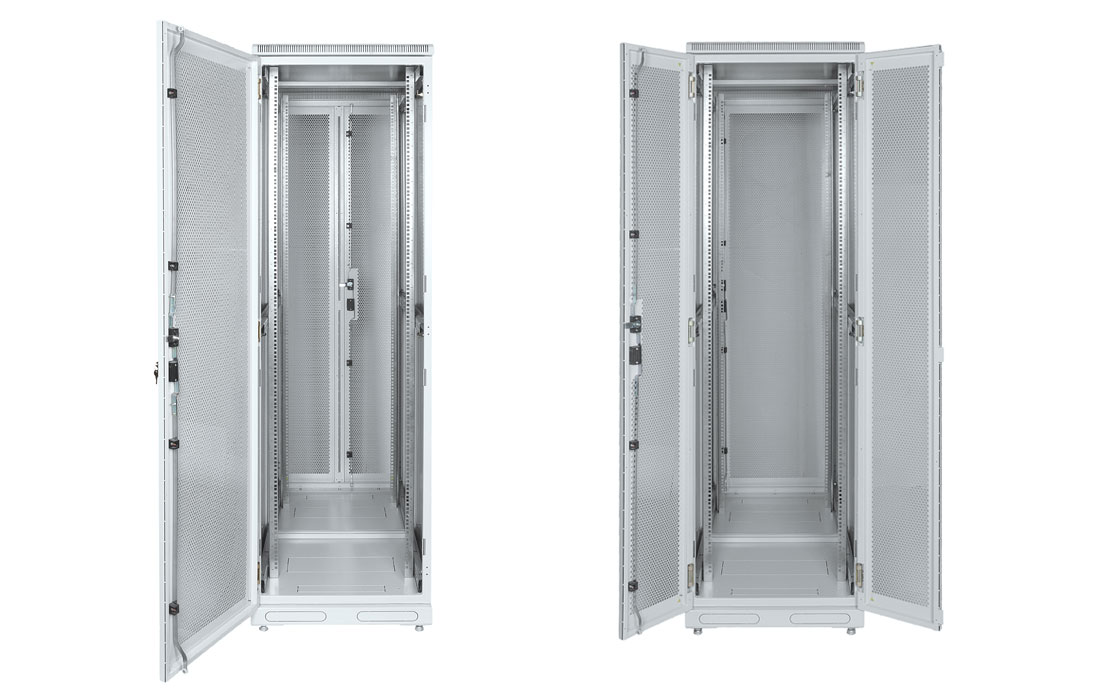

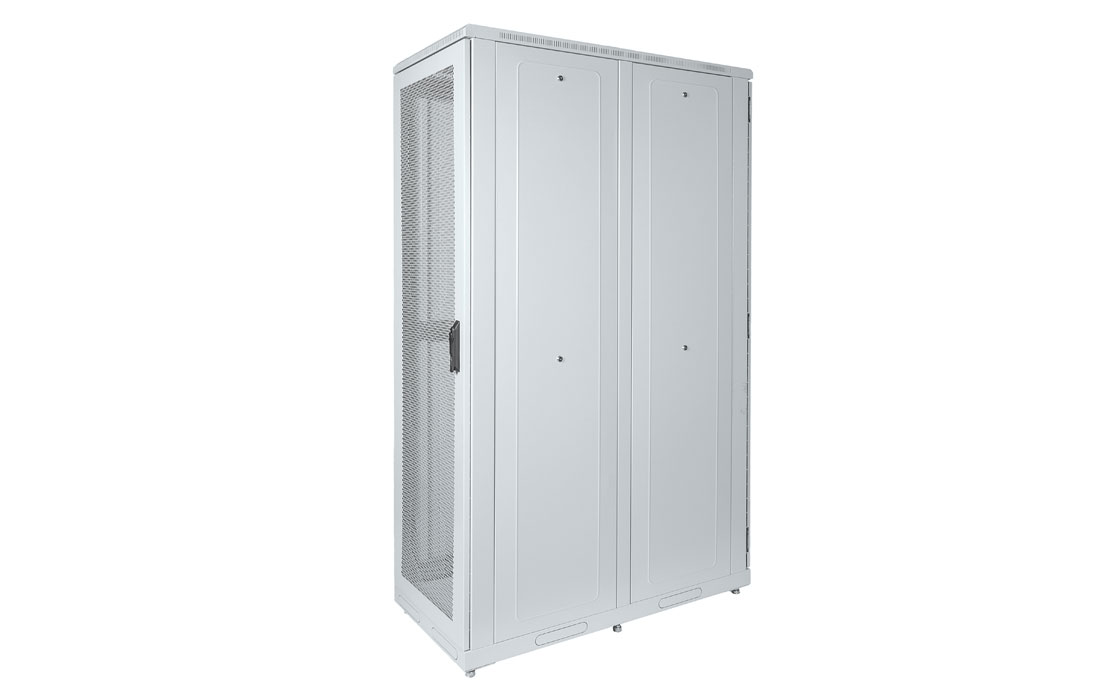

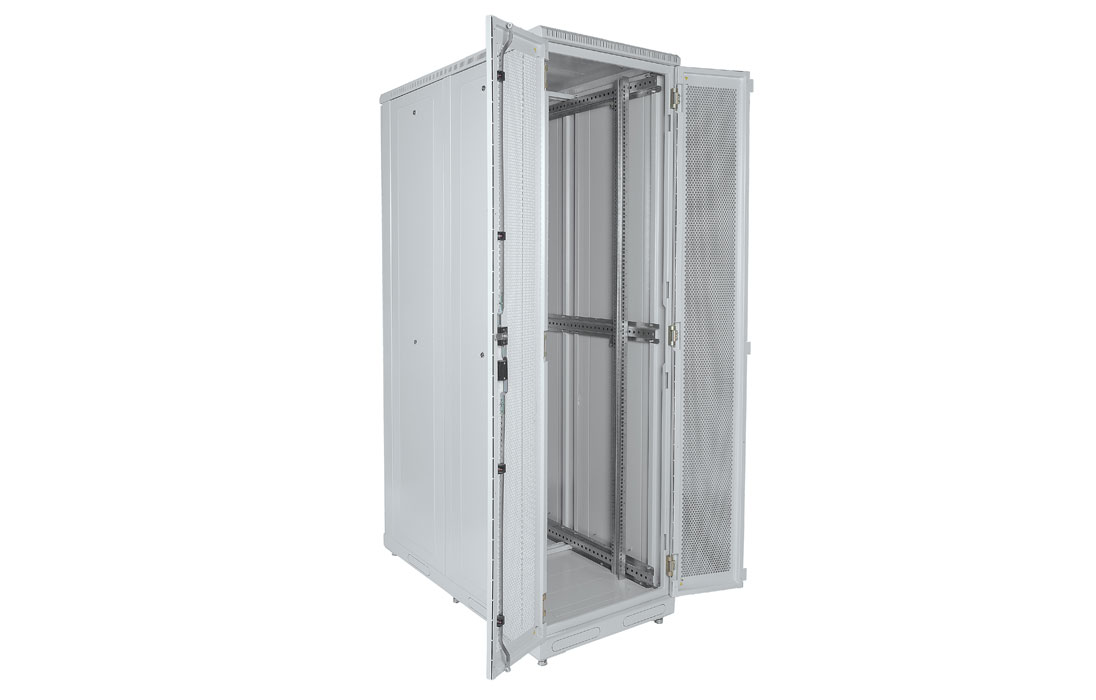

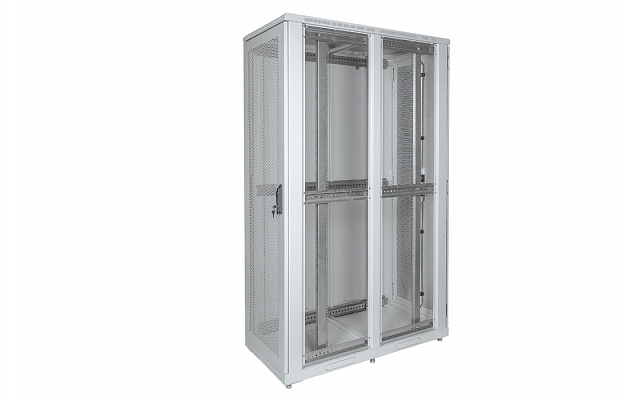

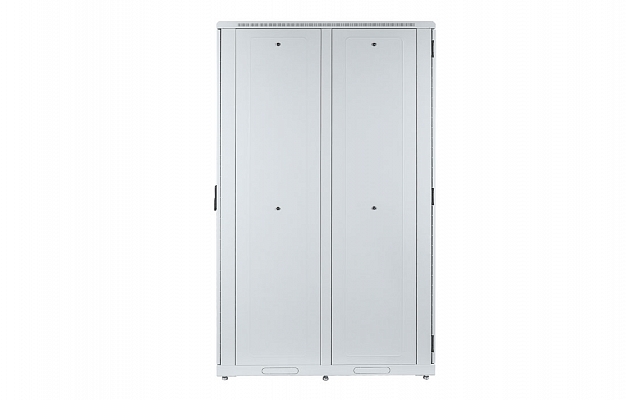

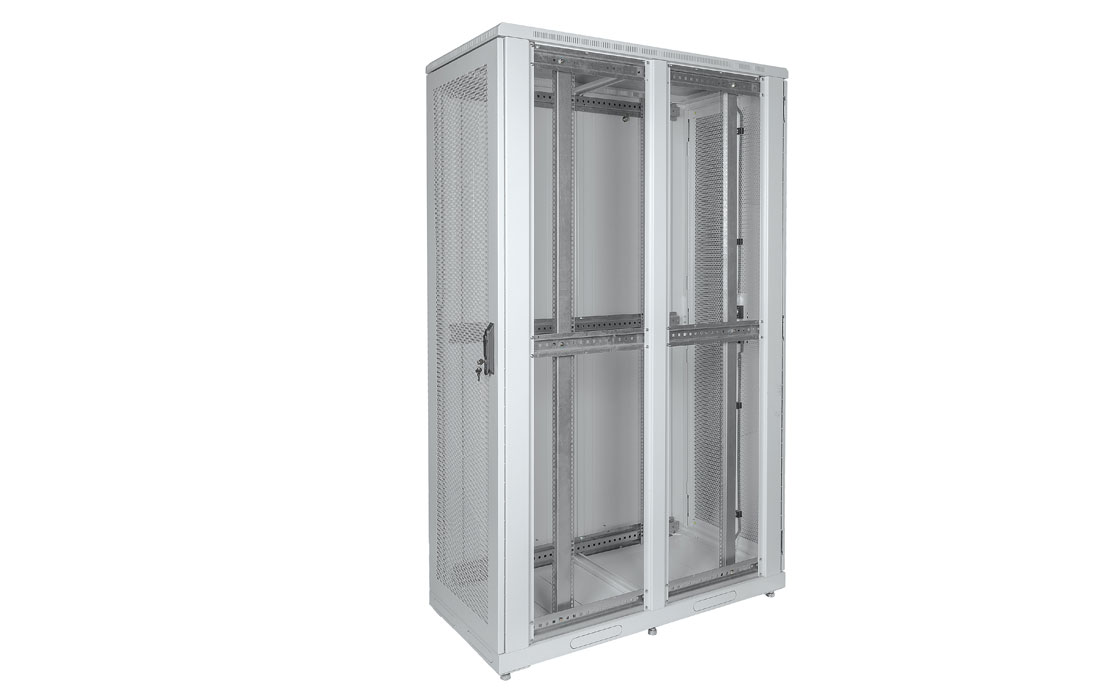

ShT-NP-Sis a 19" floor mounted cabinet used for the installation of active and passive server equipment. The cabinet is manufactured in accordance with the 482.6 mm (19") series supporting structure system.

The UHL4 climatic category means that the cabinet is intended for indoor application.

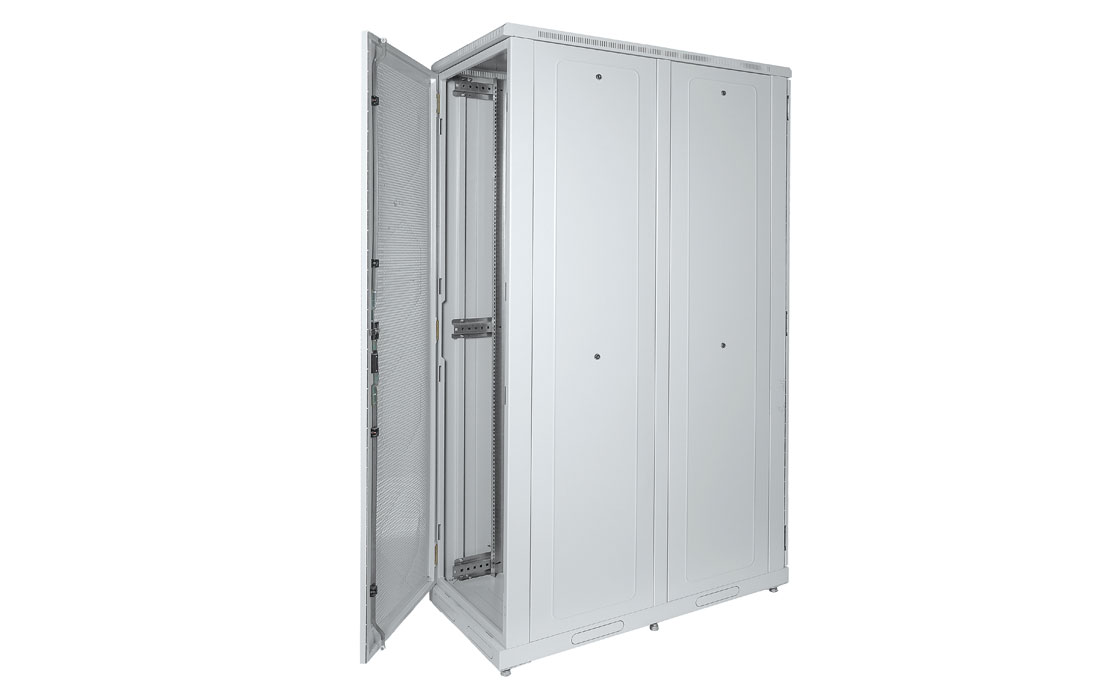

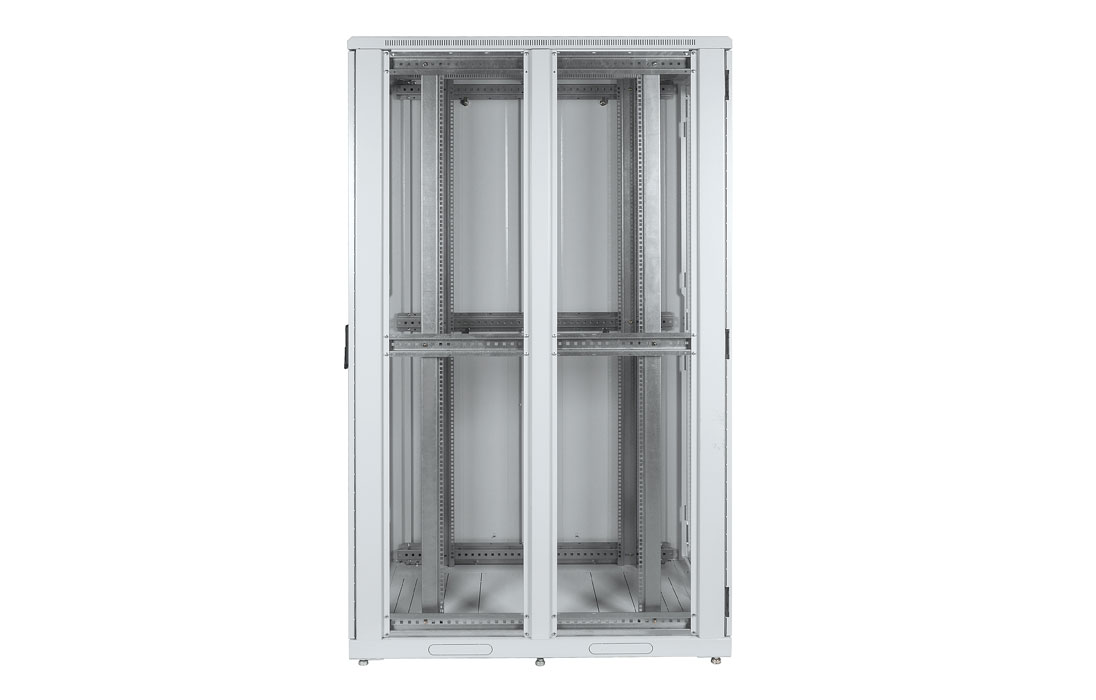

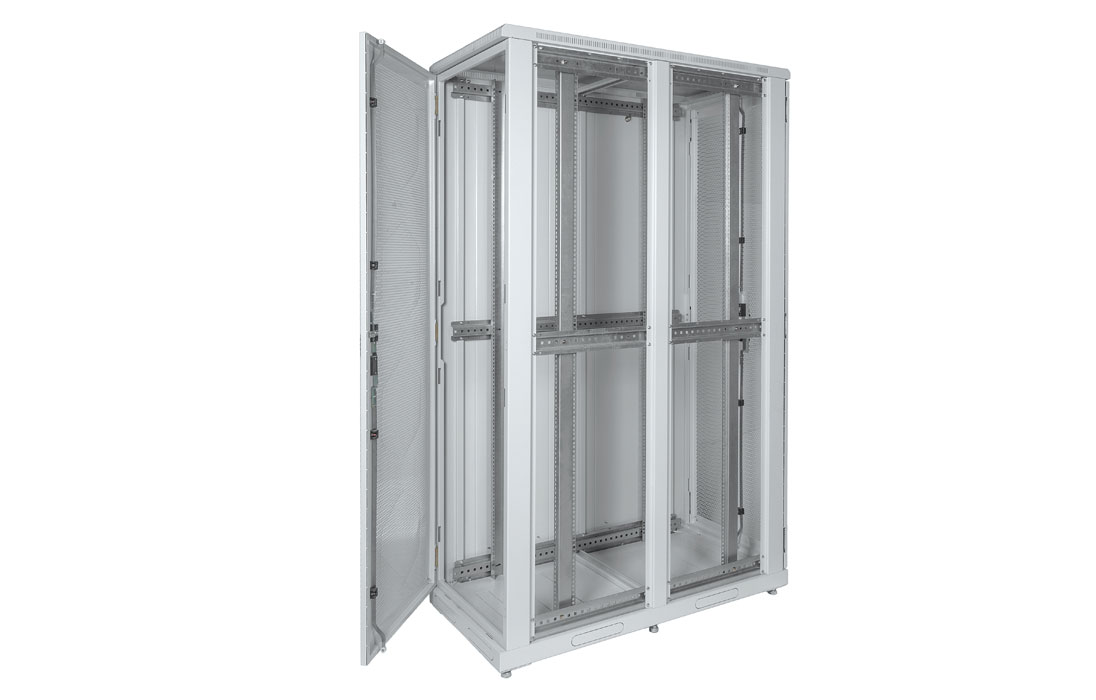

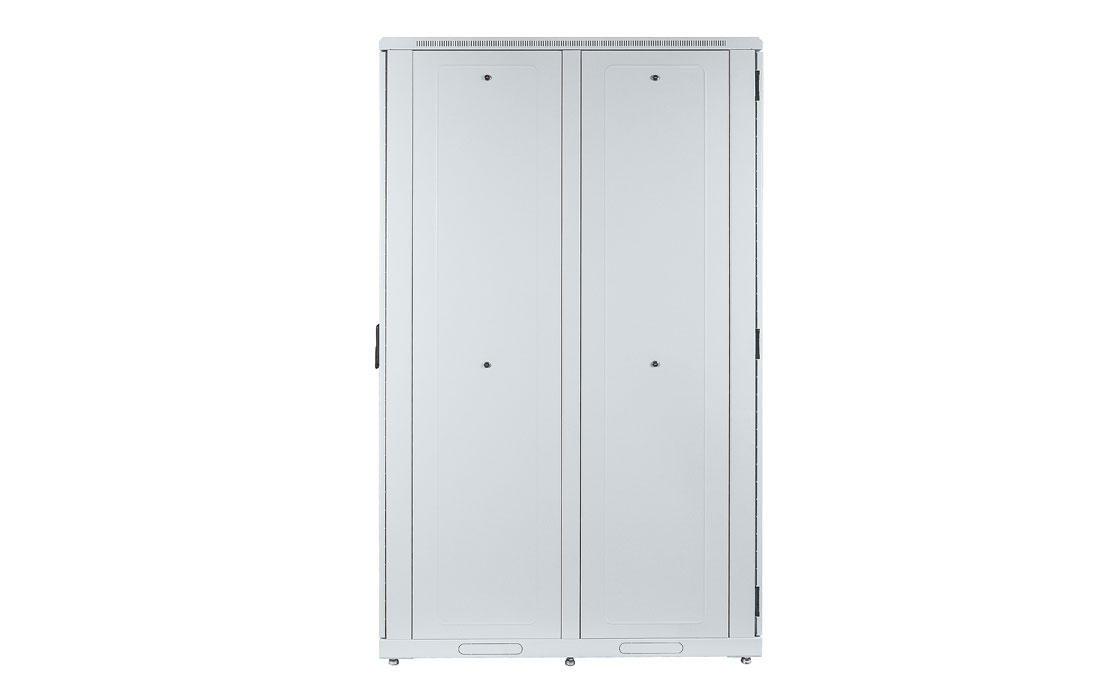

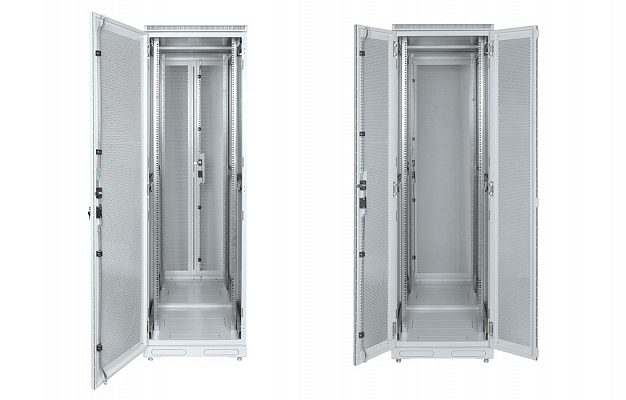

The cabinet consists of a base, roof, three welded frames joined together by C-shape channels and can be fully disassembled.

Supplied in three shipping packages.

The cabinet fasteners provide the increased rigidity of the frame. The distributed vertical load is up to 1000 kg. The basic package of the cabinet includes front and rear doors, side walls with locks.

Cable entries are provided in the upper and lower parts of the cabinet. Fan modules can be installed in the cabinet base or roof.

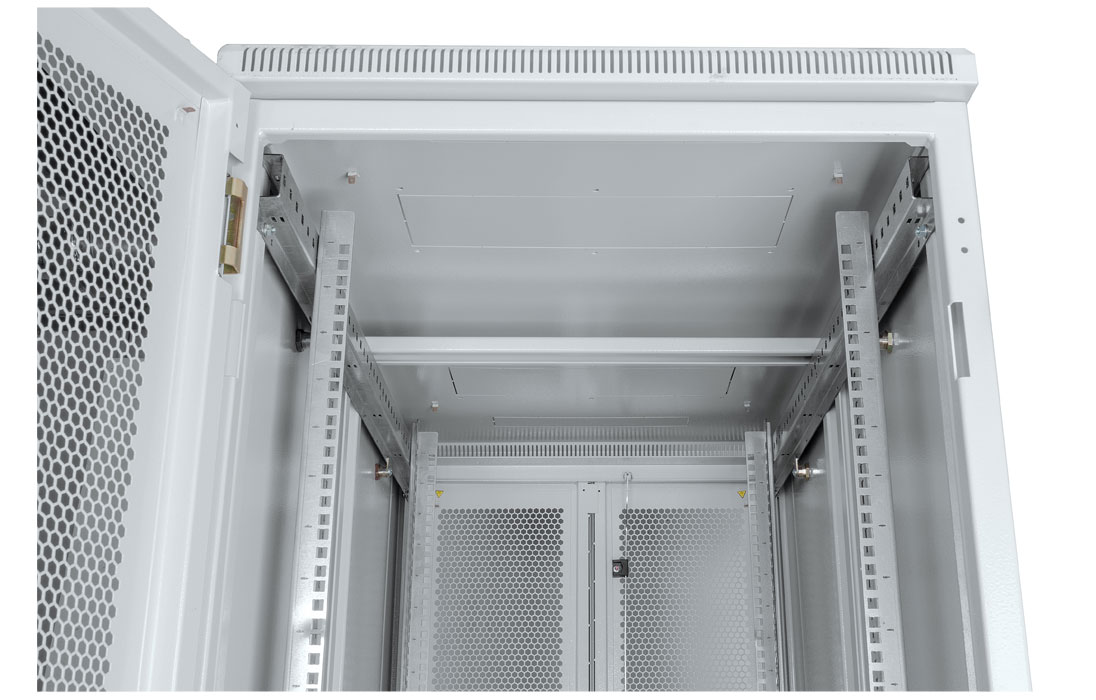

The vertical rails are depth-adjustable. The cabinet grounding system is included in a basic package.

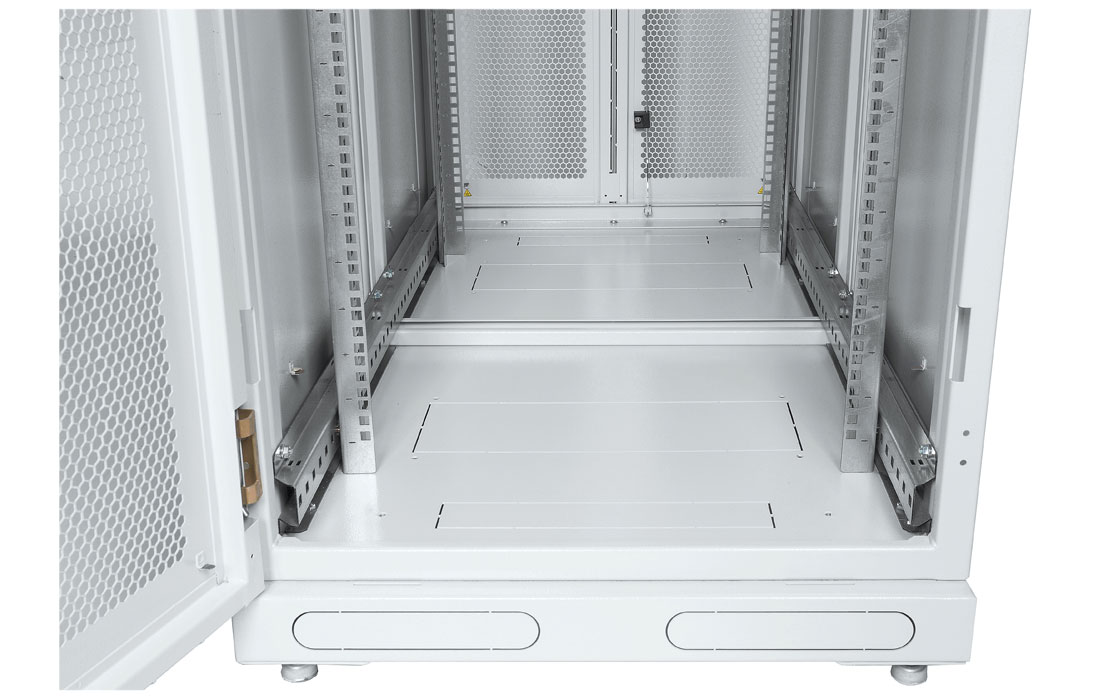

Six screw supports (legs) can be installed in the cabinet base to compensate for surface irregularities; it is also possible to install rollers. The cabinet can be accessed for installation, connection and maintenance from four sides.


Price
Retail price, with Vat Date 29.04.2024 80 904.00 RUB
Retail price, W/out Vat Date 29.04.2024 67 420.00 RUB
Item parameters
Technical specifications
Height, U 42
Usable depth, mm 1050
Color Grey RAL 7035
Distributed load, kg 1000
Front door material Perforated metal
Rear door material Perforated metal (double-leaf)
Height, mm 1637
Width, mm 800
Depth, mm 1200
Weight, kg 140
Kit content
Base 1 pc.
Roof 1 pc.
Frame 3 pc.
Side wall 4 pcs.
Door 1 pc.
Swing door 1 pc.
Bottom C-shape channel 2 pcs.
Medium C-shape channel 2 pcs.
Upper C-shape channel 2 pcs.
Vertical rail 4 pc.
Installation kit 1 pc.
Legs 6 pcs.
Set of grounding wires 1 pc.
Logistic data
Volume, m3: 0,804476
Weight, kg: 147
Models for design
Шкаф серверный 19” 800х1200.rfa
2.33 Mb
130411-00936 ШТ-НП-С-42U-800-1200-П2П передняя дверь перфорипрованная,задняя перф_двойная_ССД.dwg
865.86 Kb
Marking
ShT — telecommunication cabinet
NP — floor mounted
S — server
42U — cabinet usable height in units
800 — cabinet width in mm
1200 — cabinet depth in mm

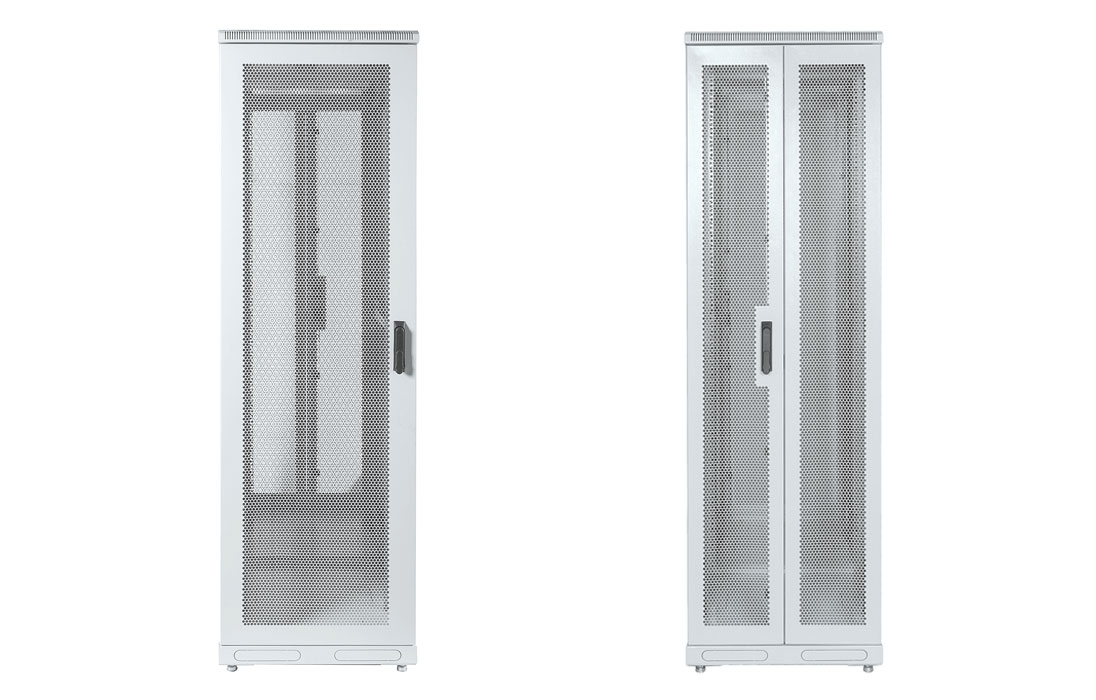

P2P — perforated front door, perforated double-leaf swing rear door
