ShPI-02.001.2.S.E Custom Design Cabinet

Part number: 130501-00170 Copyed at buffer

About this item (PDF)

Ask a question

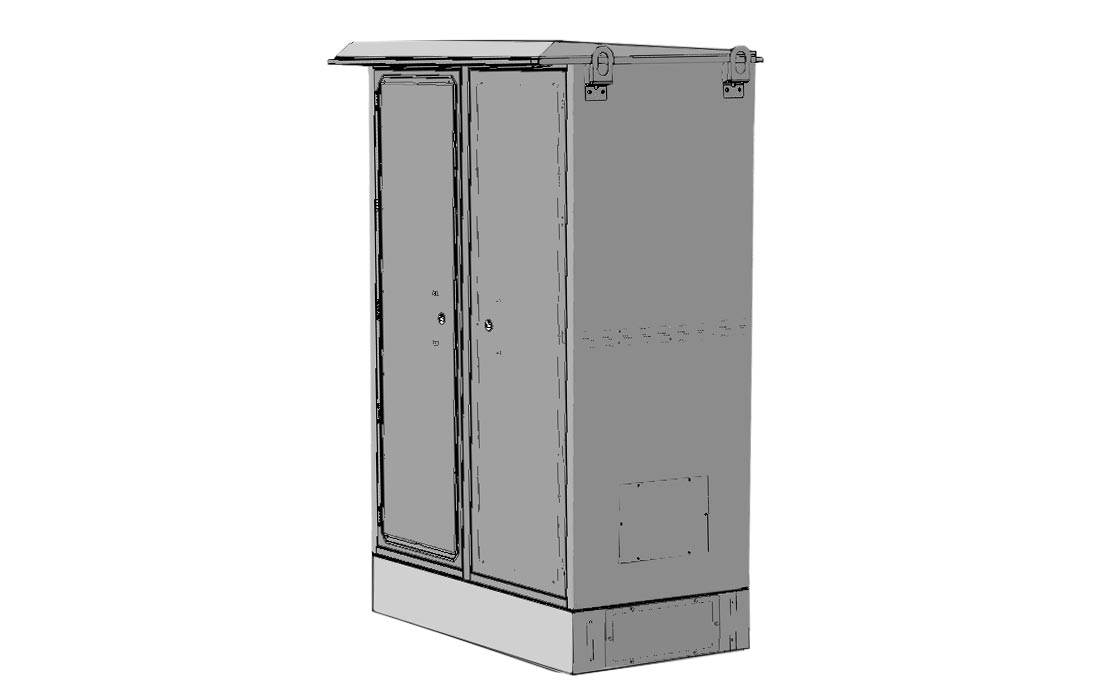

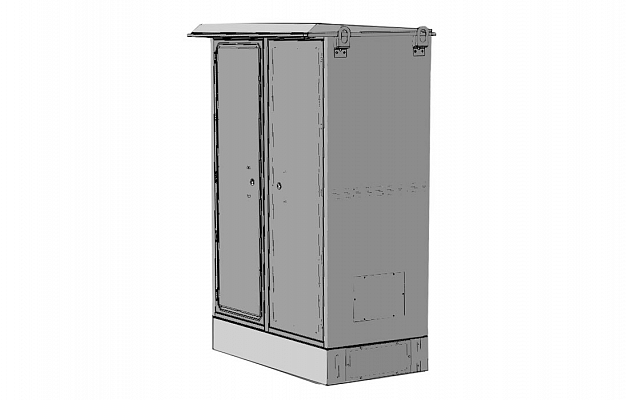

The cabinet is intended for the accommodation and operation of mobile communication equipment, stationary control and regulation system equipment, power supply and other auxiliary devices.

The cabinet consists of two independent compartments. Access to the compartments is provided through the doors.

The cabinet is installed outdoors. Cabinets ensure protection against various atmospheric precipitations and maintain the required temperature conditions inside. The vandal-proof design of cabinets prevents unauthorized access to the equipment. The cabinet doors are equipped with lever safe locks and concealed hinges to prevent their cutting. The cabinet case is sealed to provide the IP65 level of protection.

The cabinet ceiling, walls, floor, and doors are made of two layers of metal, protected with thermal insulation and have the sandwich panels structure:

• outer layer – steel, 2 mm thick, coated with zinc-rich primer, painted with polymer powder paint RAL 7035, resistant to long-term exposure to atmospheric precipitation;

• heat insulator – silicate rock wool, 20 mm thick, flame retardant;

• inner layer – steel, 1 mm thick.

Only by query

If you are interested in this product, contact the responsible manager to clarify the price and delivery dates.

Phone:

E-Mail:

Send request

Item parameters

Technical specifications

Length, mm	700
Width, mm	1200
Height, mm	2000
Weight, kg	330

Kit content

Cabinet body	1 pc.
Basement	1 pc.
Earthing bus	1 pc.
Rack	8 pcs.
Package	1 pc.
Product passport	1 pc.
Fasteners to the foundation/floor	1 pc.
Door limit switch	1 pc.

Electrical distribution panel (lead-in distributor) consisting of:
Body	1 pc.
Residual current circuit breaker with overcurrent protection	1 pc.
Service socket	2 pcs.
Automatic tripping circuit breaker	8 pcs.
Lead-in terminal	3 pcs.

Logistic data

Volume, m3:	4,340504
Weight, kg:	340,52
