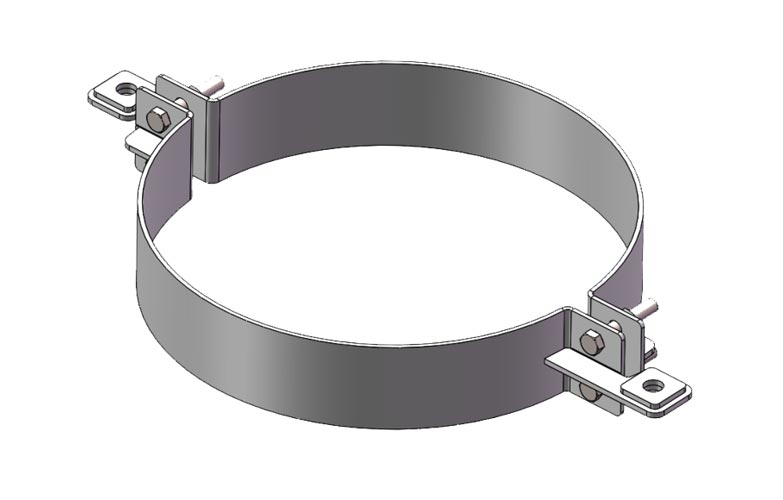

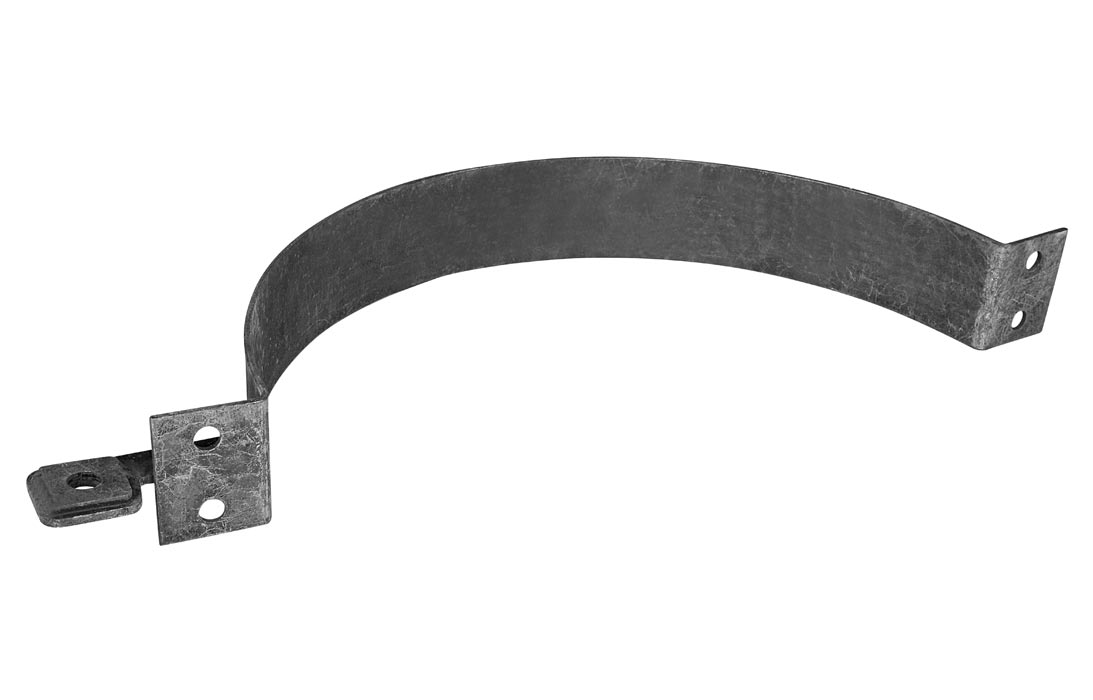

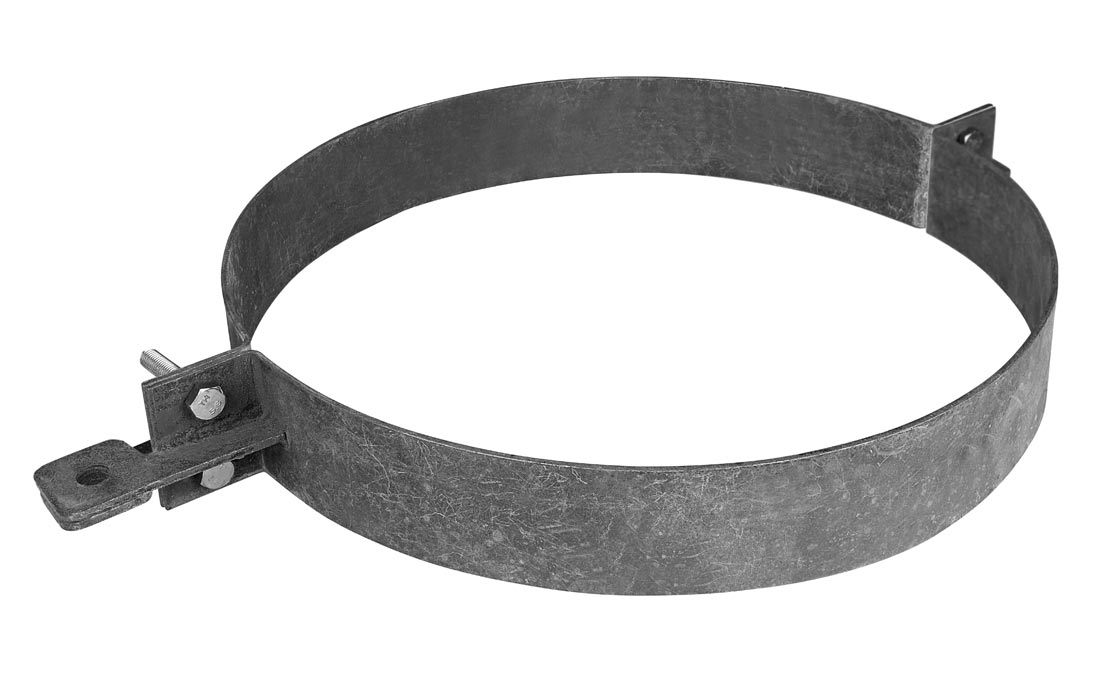

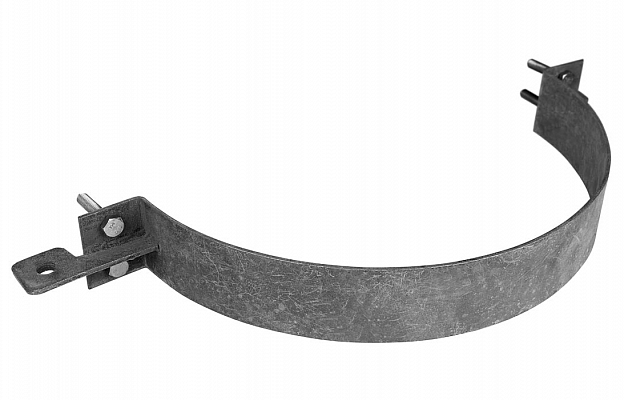

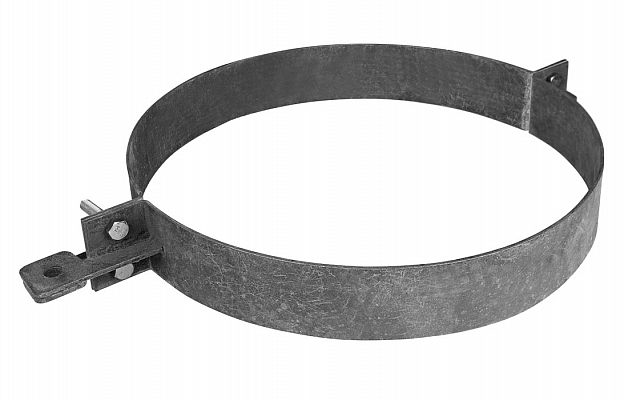

CCD HN-750 Tension Pole Band Clamp

Part number: 130801-01888 Copyed at buffer
CCD HN-750 Tension Pole Band Clamp внешний вид 1
CCD HN-750 Tension Pole Band Clamp внешний вид 2
CCD HN-750 Tension Pole Band Clamp внешний вид 3
CCD HN-750 Tension Pole Band Clamp внешний вид 4
CCD HN-750 Tension Pole Band Clamp внешний вид 1
CCD HN-750 Tension Pole Band Clamp внешний вид 2
CCD HN-750 Tension Pole Band Clamp внешний вид 3
CCD HN-750 Tension Pole Band Clamp внешний вид 4

About this item (PDF)

Ask a question

The HN-700 Tension Pole Band Clamp is used for tension fastening of fiber optic cable clamps on reinforced power transmission towers and other round poles. The pole band clamps for 300 ... 800 mm pole diameter can be made upon request with 10 mm pitch.


Price
Retail price, with Vat Date 28.04.2024 2 640.13 RUB
Retail price, W/out Vat Date 28.04.2024 2 200.11 RUB
Item parameters
Technical specifications
Breaking load, kN 40
Hole diameter, mm 17
Dimensions, mm 993х419х80
Weight, kg 6.94
Kit content
Half-clamp 2 pcs.
M12 bolt 4 pcs.
M12 nut 4 pcs.
Washer 12 pcs.
M4 lock washer 4 pcs.
