CCD UK(U)P-200 Immobility Clamp Assembly

Part number: 130801-02129 Copyed at buffer
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 1
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 2
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 3
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 4
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 5
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 6
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 1
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 2
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 3
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 4
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 5
CCD UK(U)P-200 Immobility Clamp Assembly внешний вид 6

About this item (PDF)

Ask a question

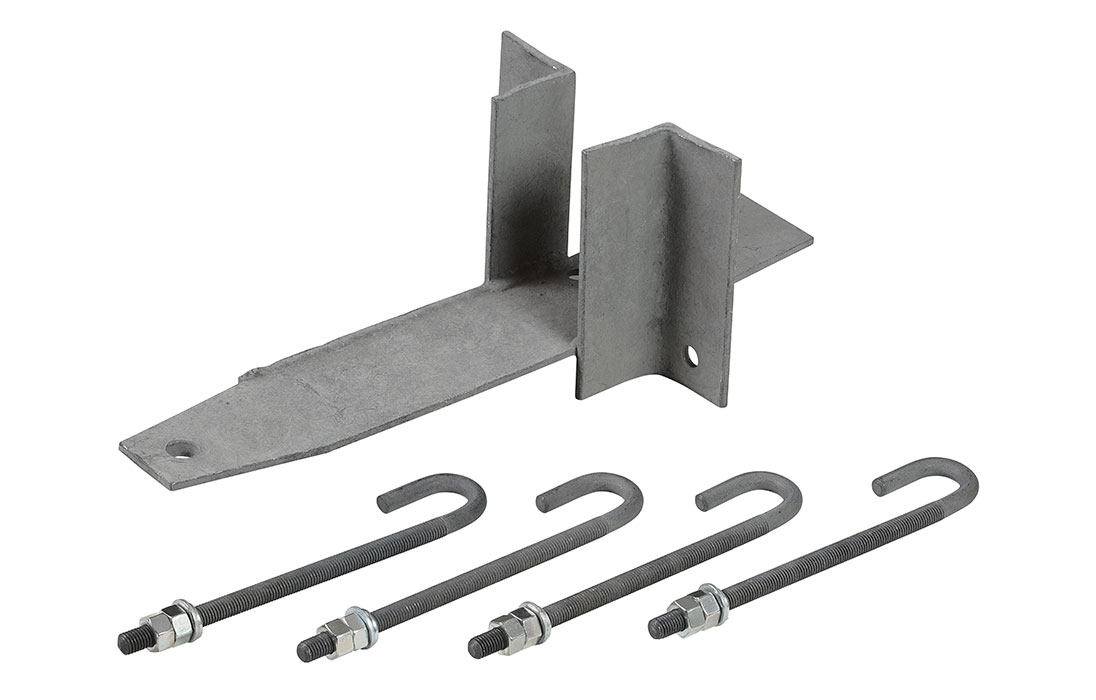

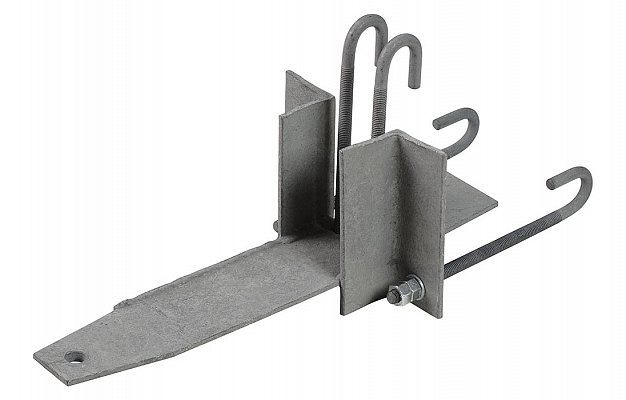

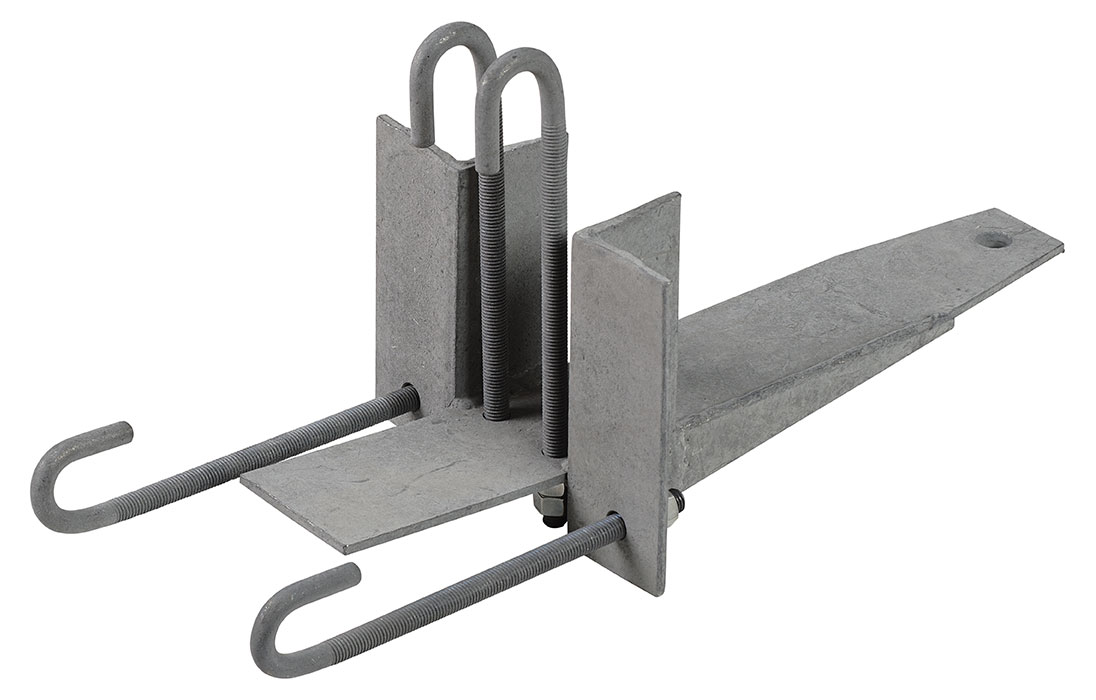

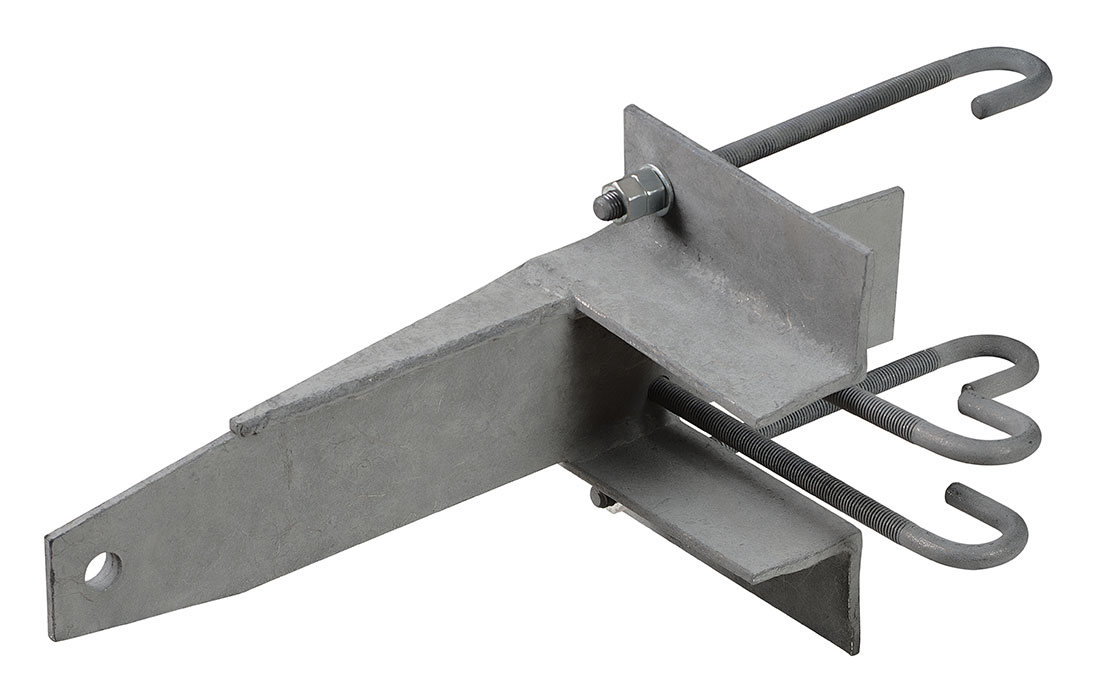

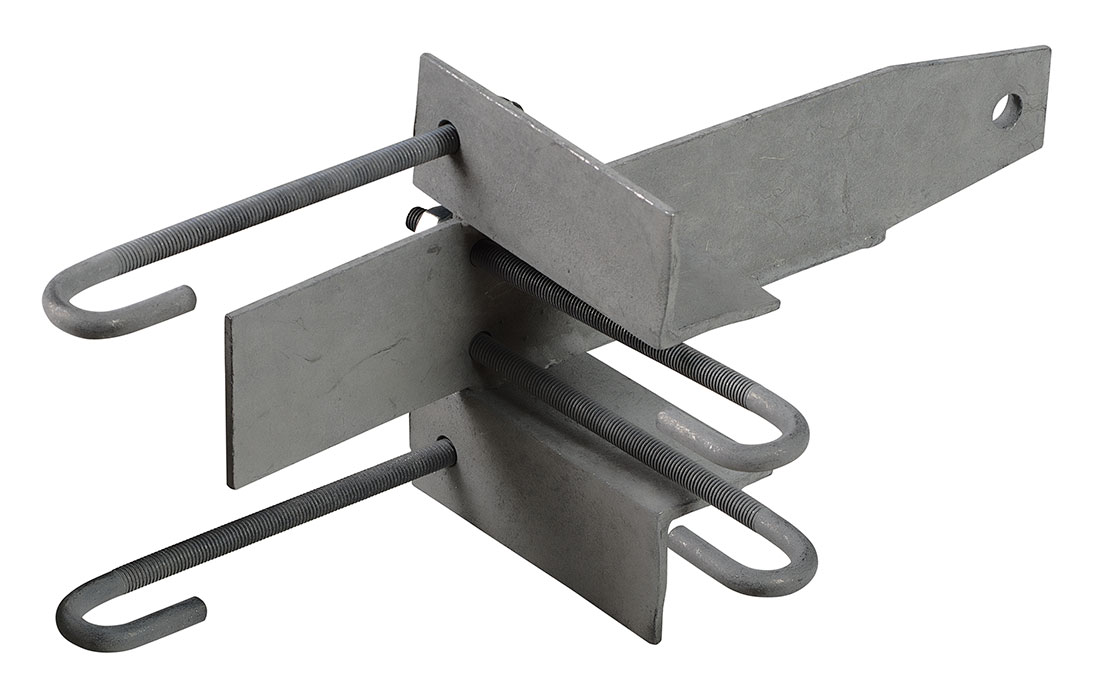

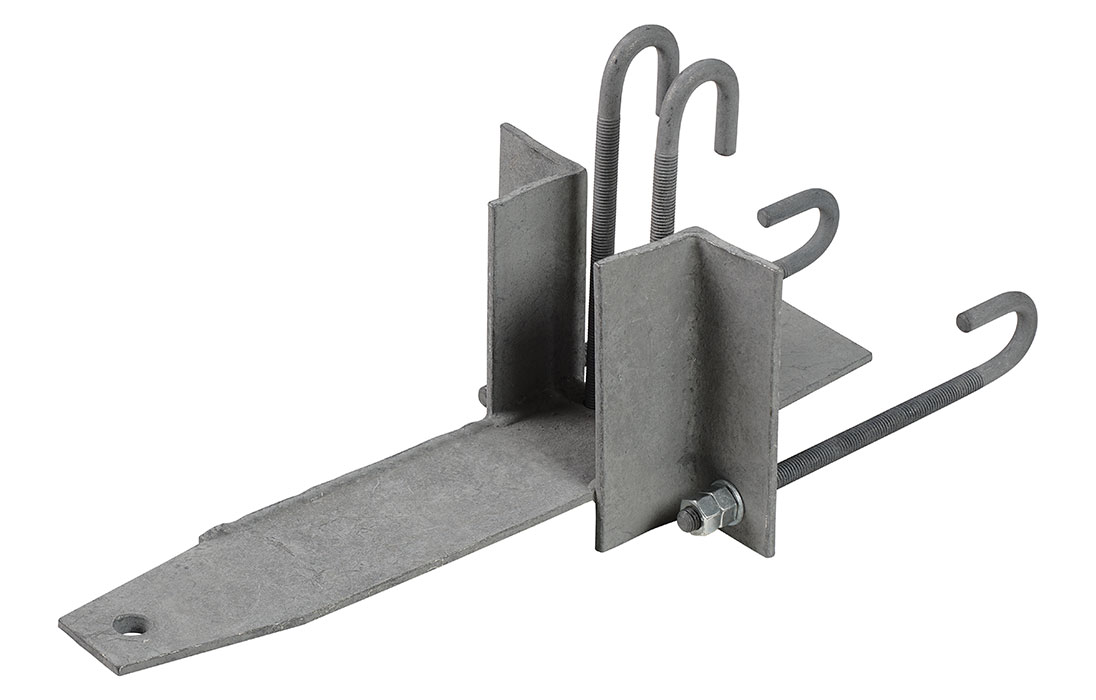

The UK(U)P-200 immobility clamp assembly is intended for fastening of suspension ADSS cable clamps to metal lattice towers of power transmission lines or to other supporting structures consisting of angle elements ranging from 140 to 200 mm. The clamp meets NF-1 (GOST 15150) climatic category requirements.


Scroll to related products

Price
Retail price, with Vat Date 30.04.2024 2 591.70 RUB
Retail price, W/out Vat Date 30.04.2024 2 159.75 RUB
Item parameters
Technical specifications
Hole diameter, mm 17
Maximum operating load, kN 13
Dimensions, mm 555х270х200
Weight, kg 4.6
Kit content
Bracket 1 pc.
M16 J-bolt 4 pcs.
M16 nut 8 pcs.
M16 washer 4 pcs.
Logistic data
Volume, m3: 0,013306
Weight, kg: 5,71
