CCD UKPU-01 Immobility Clamp Assembly, Left

Part number: 130801-01005 Copyed at buffer

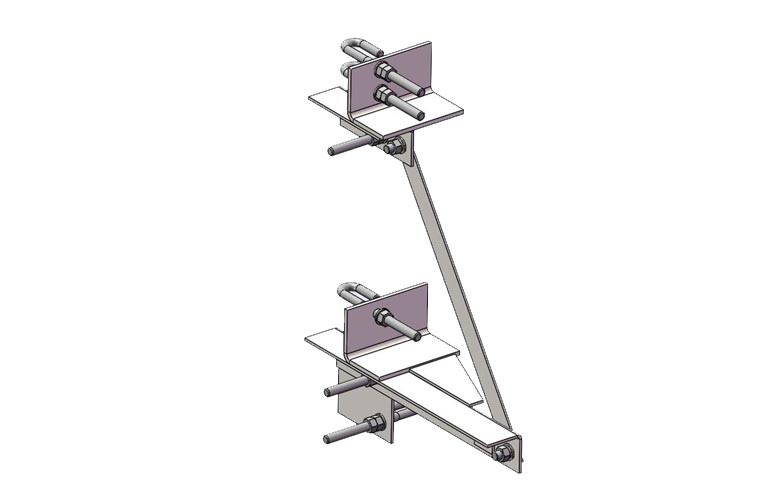

CCD UKPU-01 Immobility Clamp Assembly, Left

About this item (PDF)

Ask a question

The UKPU-01 immobility clamp assembly is intended for fastening of suspension ADSS cable clamps to metal lattice towers of power transmission lines or to other supporting structures consisting of angle elements ranging from 63 to 180 mm. The clamp meets NF-1 (GOST 15150) climatic category requirements.


Scroll to related products

Price
Retail price, with Vat Date 27.04.2024 4 378.86 RUB
Retail price, W/out Vat Date 27.04.2024 3 649.05 RUB
Item parameters
Technical specifications
Hole diameter, mm 17
Maximum operating load, kN 17
Dimensions, mm 730х520х200
Weight, kg 14
Kit content
Frame 1 pc.
Anchor tie 1 pc.
Bracket 1 pc.
M16 J-bolt 6 pcs.
M16 bolt 2 pcs.
M16 nut 14 pcs.
M16 washer 2 pcs.
Lock washer 8 pcs.
Logistic data
Volume, m3: 0,051128
Weight, kg: 14
