CCD UTP-2 Immobility Clamp Assembly

Part number: 130801-01069 Copyed at buffer

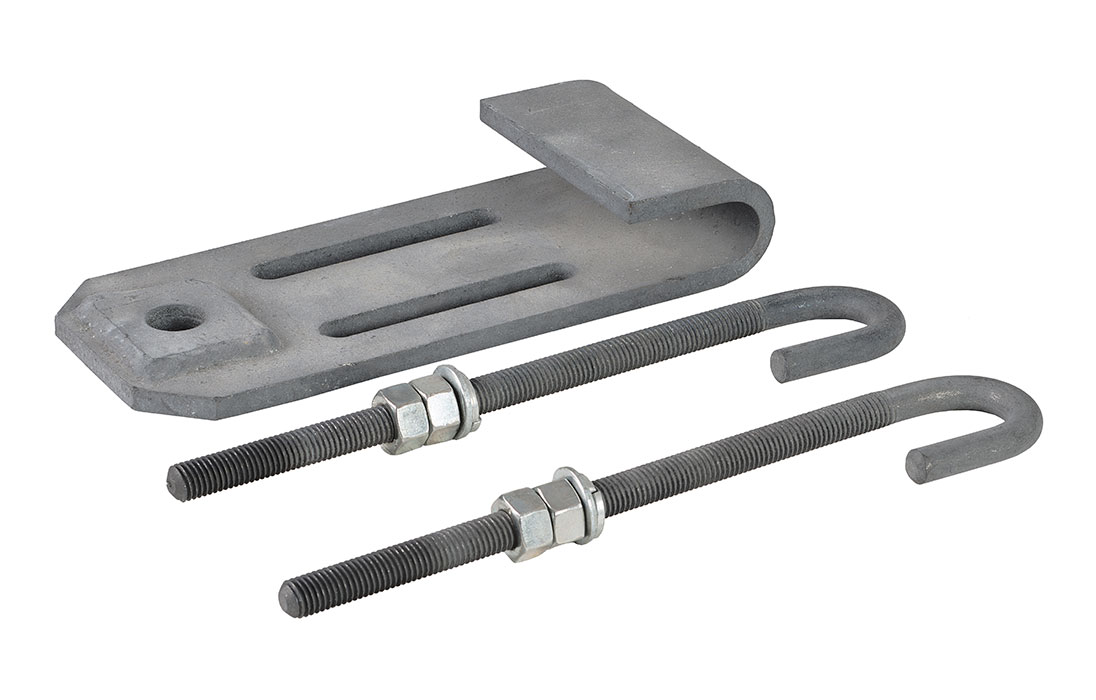

CCD UTP-2 Immobility Clamp Assembly внешний вид 1

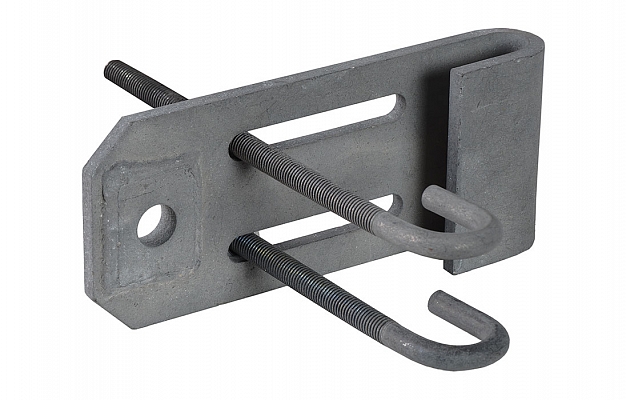

CCD UTP-2 Immobility Clamp Assembly внешний вид 2

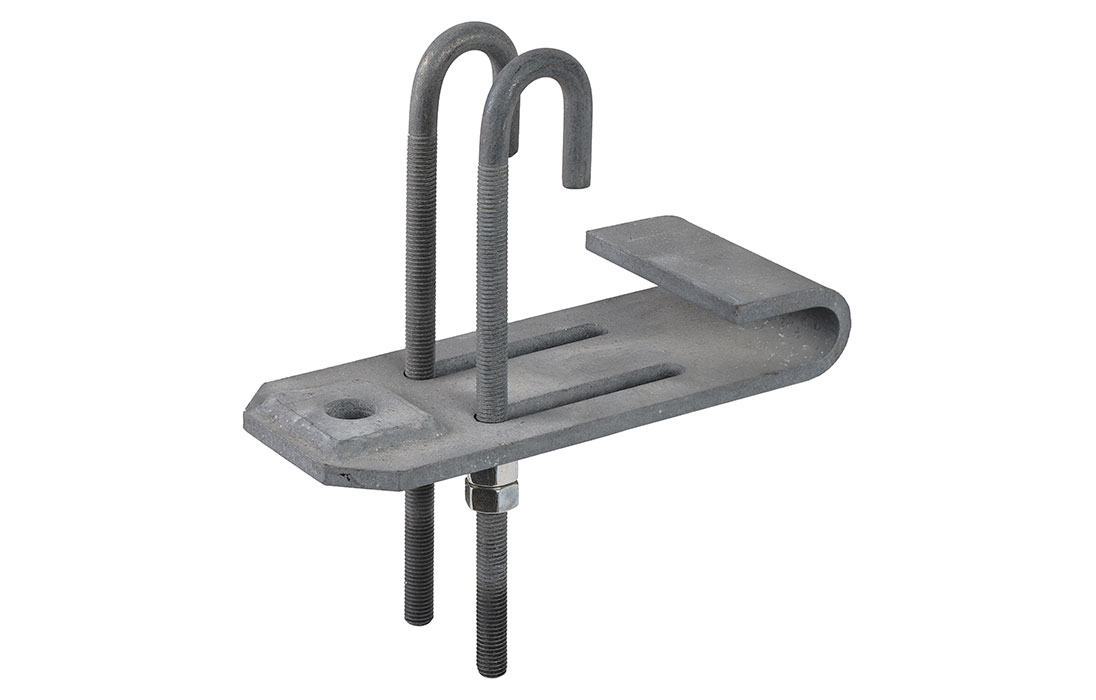

CCD UTP-2 Immobility Clamp Assembly внешний вид 3
CCD UTP-2 Immobility Clamp Assembly внешний вид 1
CCD UTP-2 Immobility Clamp Assembly внешний вид 2
CCD UTP-2 Immobility Clamp Assembly внешний вид 3

About this item (PDF)

Ask a question

The UTP-2 Immobility Clamp Assembly is intended for fastening of suspension ADSS cable clamps to metal lattice towers of power transmission lines 35-220 kV or to other supporting structures consisting of angle elements ranging from 140 to 200 mm. The clamp meets NF-1 (GOST 15150) climatic category requirements.


Scroll to related products

Price
Retail price, with Vat Date 28.04.2024 1 257.22 RUB
Retail price, W/out Vat Date 28.04.2024 1 047.68 RUB
Item parameters
Technical specifications
Hole diameter, mm 17
Angle leg dimensions, mm 140 ... 200
Maximum operating load, kN 70
Dimensions, mm 300х250х100
Weight, kg 3.0
Kit content
Brace 1 pc.
M12 J-bolt 2 pcs.
M12 nut 4 pcs.
M12 washer 2 pcs.
M12 lock washer 2 pcs.
Logistic data
Volume, m3: 0,001080
Weight, kg: 2,8
