PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm

Part number: 130801-00632 Copyed at buffer

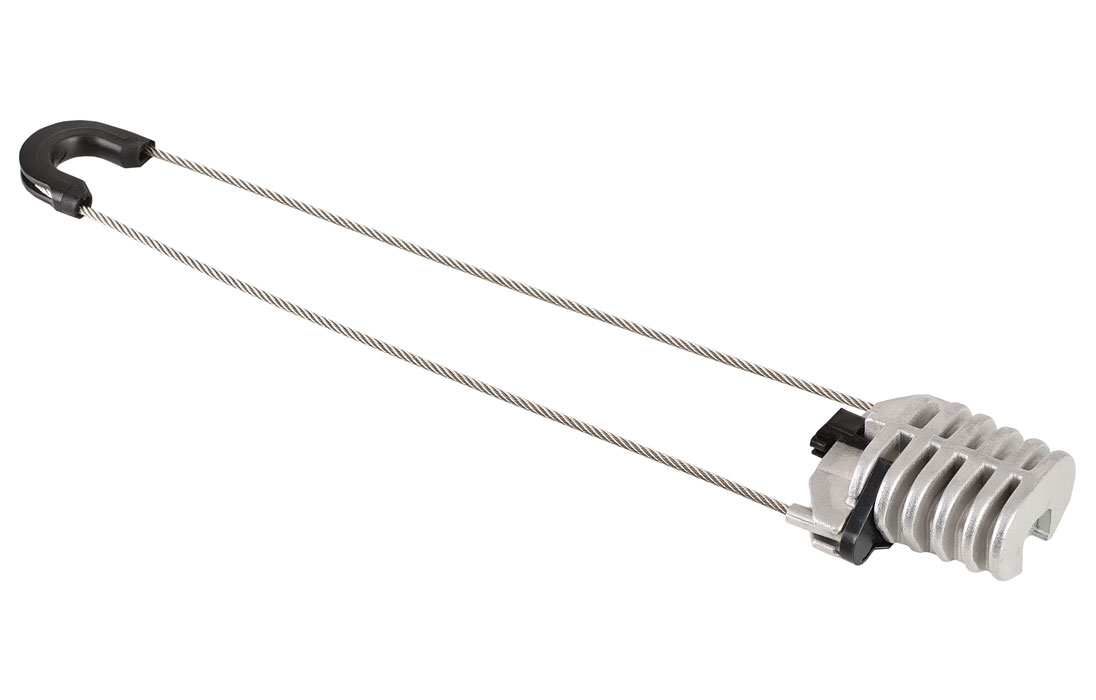

PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm внешний вид 1

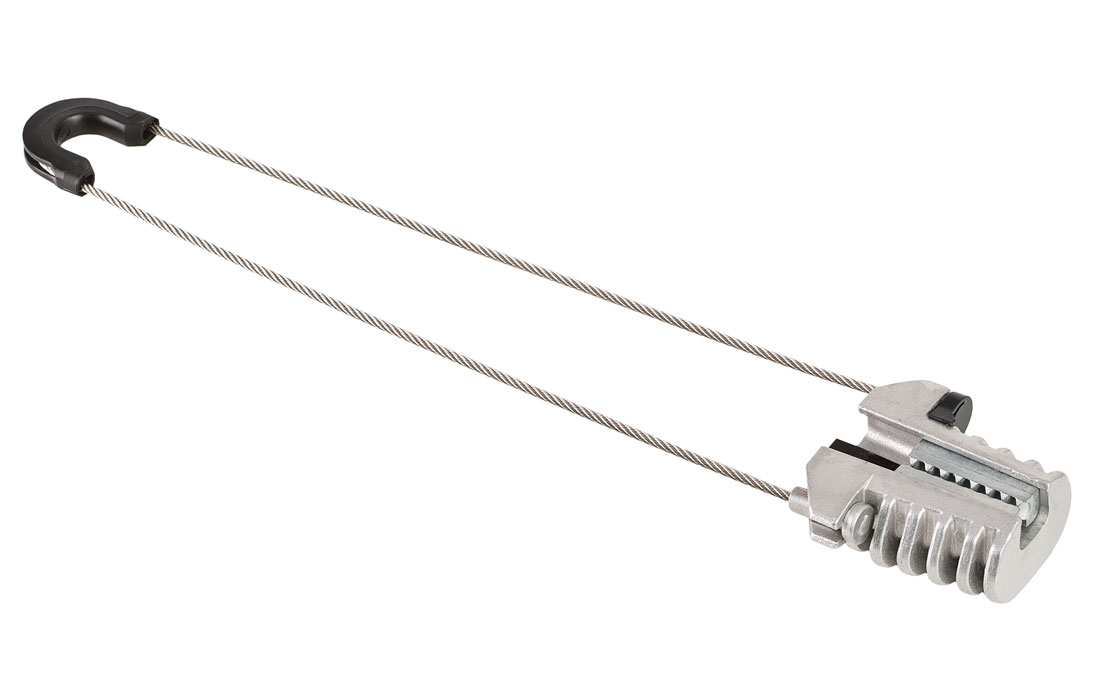

PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm внешний вид 2

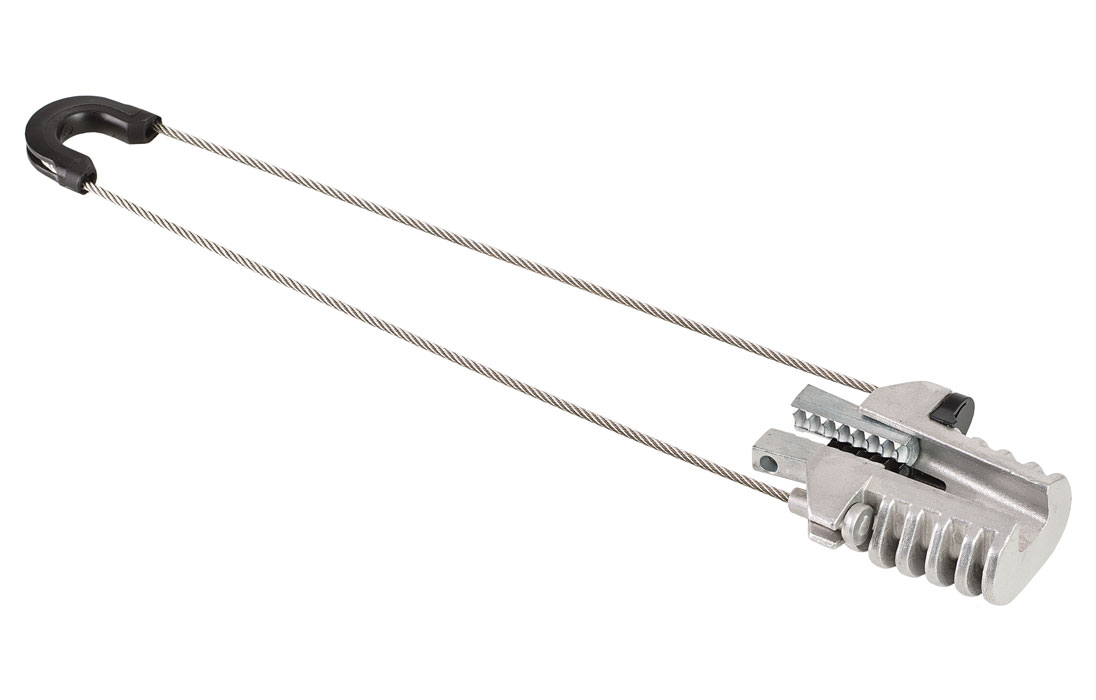

PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm внешний вид 3
PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm внешний вид 1
PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm внешний вид 2
PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm внешний вид 3

About this item (PDF)

Ask a question

The clamp is intended to anchor or suspend an 8-shape fiber optic cable with external strength member with the required tension of the cable line.

The clamp consists of an open conical body, a pair of metal toothed wedges (clamp assembly) and a flexible loop. All parts are connected to each other to prevent possible loss.

The clamp is installed in pairs at the beginning, end and within the 5 poles interval along the cable line. The clamp significantly speeds up the cable installation process.


Scroll to related products

Price
Retail price, with Vat Date 03.05.2024 372.00 RUB
Retail price, W/out Vat Date 03.05.2024 310.00 RUB
Item parameters
Technical specifications
Length of loop, mm 320
Strength member diameter range by insulation, mm 4-7
Maximum operating load, kN 5.5
Weight, kg 0.19
Kit content
PA-07-320 Anchoring Clamp, 5.5 kN, 4-7 mm 1 pc.
Logistic data
Volume, m3: 0,000257
Weight, kg: 0,19
